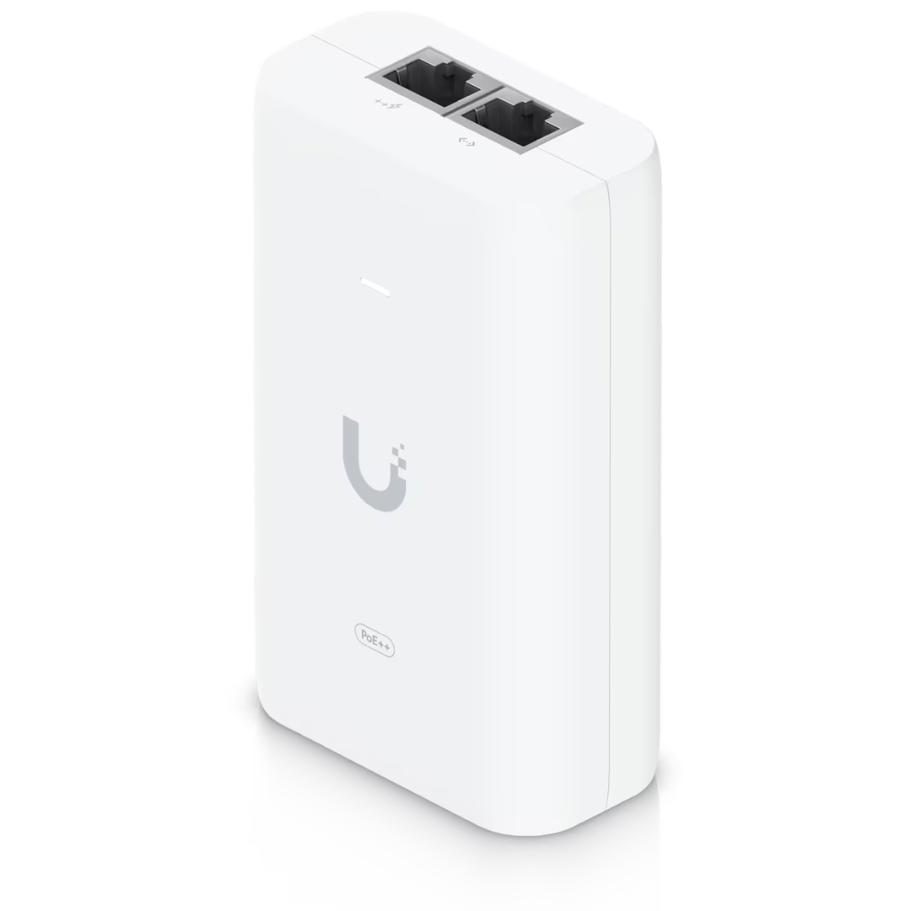

An adapter that can power UniFi PoE++ devices with wireless mesh applications, or offload PoE switch power dependencies.

Specifications

• Model U-PoE++
• Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
• Weight 210 g (7.4 oz)
• Output voltage 48V DC @ 1.25A
• LAN activity indicator No
• Gigabit LAN port Yes
• Remote reset capability No
• Reset button No
• Rated voltage 100—240V AC @ 50/60Hz
• Input current 1.3A @ 120V AC
• 0.75A @ 230V AC
• Inrush current <100A peak @ 120V AC
• <200A peak @ 230V AC
• Efficiency 85+%
• Output ripple 1% max.
• Switching frequency 65 kHz
• Line regulation ≤ 1%
• Load regulation ≤ 3%
• 2-pair powering No
• 4-pair powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

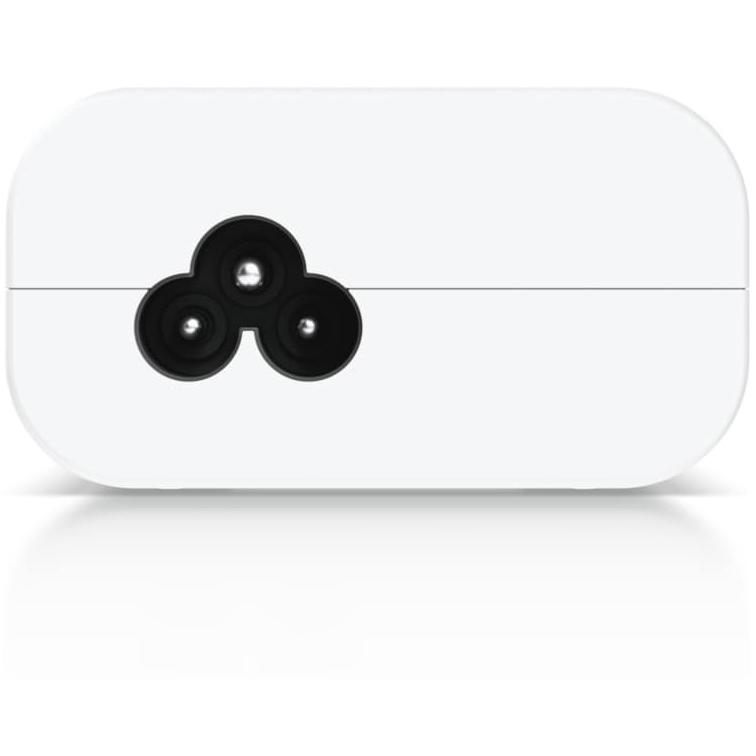

• AC connector IEC-320 C6

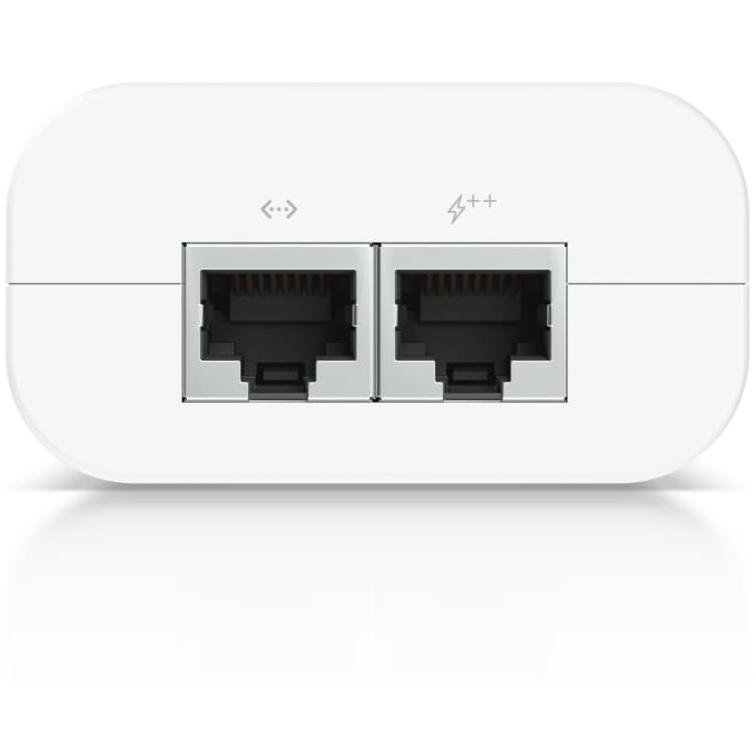

• Data In / PoE RJ45 shielded socket
• Surge protection Difference and common mode
• Clamping protection 11V data, 60V power
• Max. surge discharge 1500A (8/20 μs) power
• Peak pulse current 36A (10/1000 μs) data
• Shunt capacitance <5 pF data
• Response time <1 ns
• Power method Universal AC input, 100—240V AC, 50/60Hz, (48V@ 1.25A)
• Power supply AC/DC
• Supported voltage range 100—240V AC
• Max. PoE+ wattage per port by PSE 60W
• Operating temperature 0 to 40° C (32 to 104° F)
• Storage temperature -30 to 70°C (-22 to 158° F)
• Operating humidity 10 to 95% noncondensing

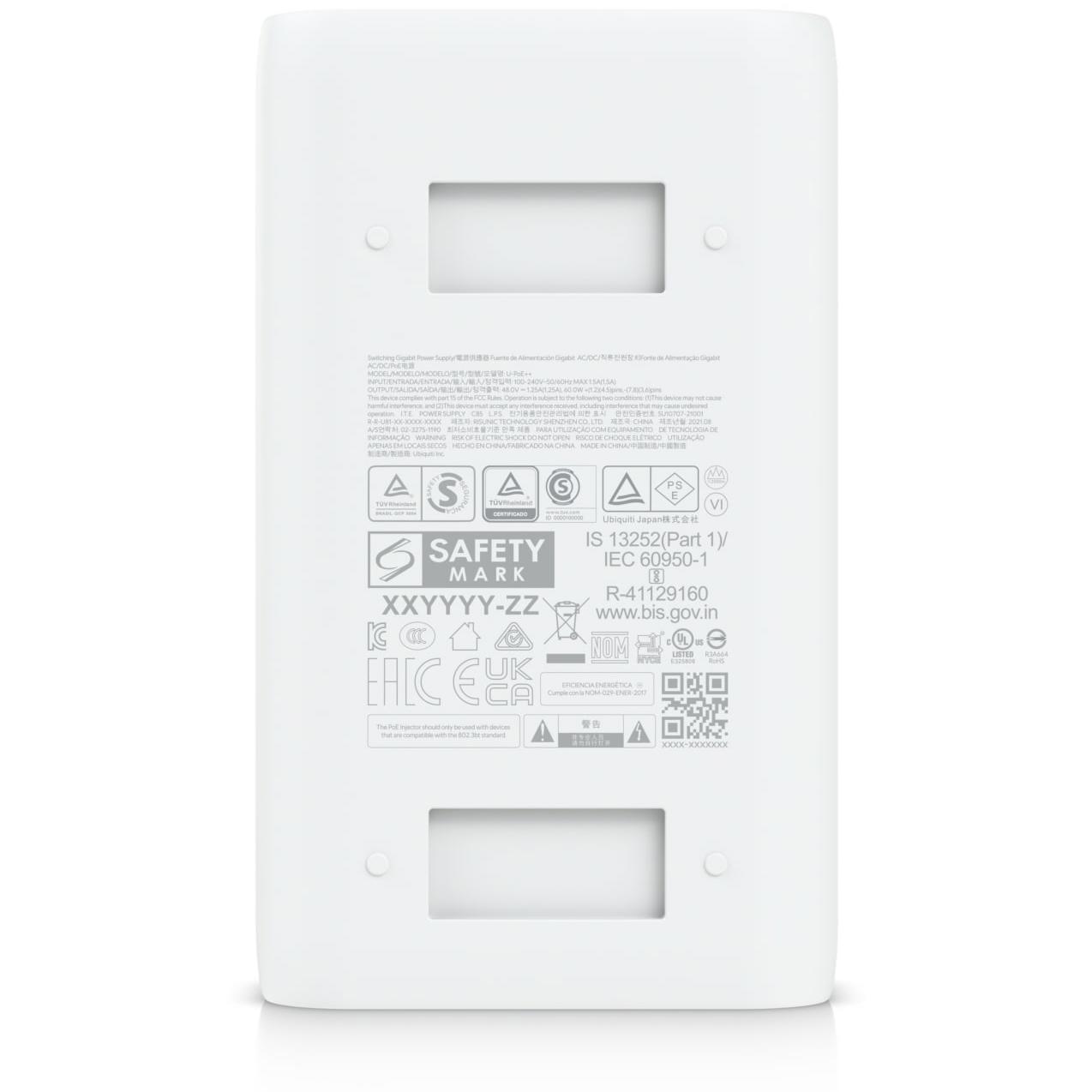

• Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
