Noctua L9a-AM5 Low Profile AM5 CPU Cooler
$
95CPU COOLERS
Browse CPU Coolers
SMALL FORM FACTOR
Browse Small Form Factor
AIR COOLERS
Browse Air Coolers
AMD ONLY
Browse AMD Only

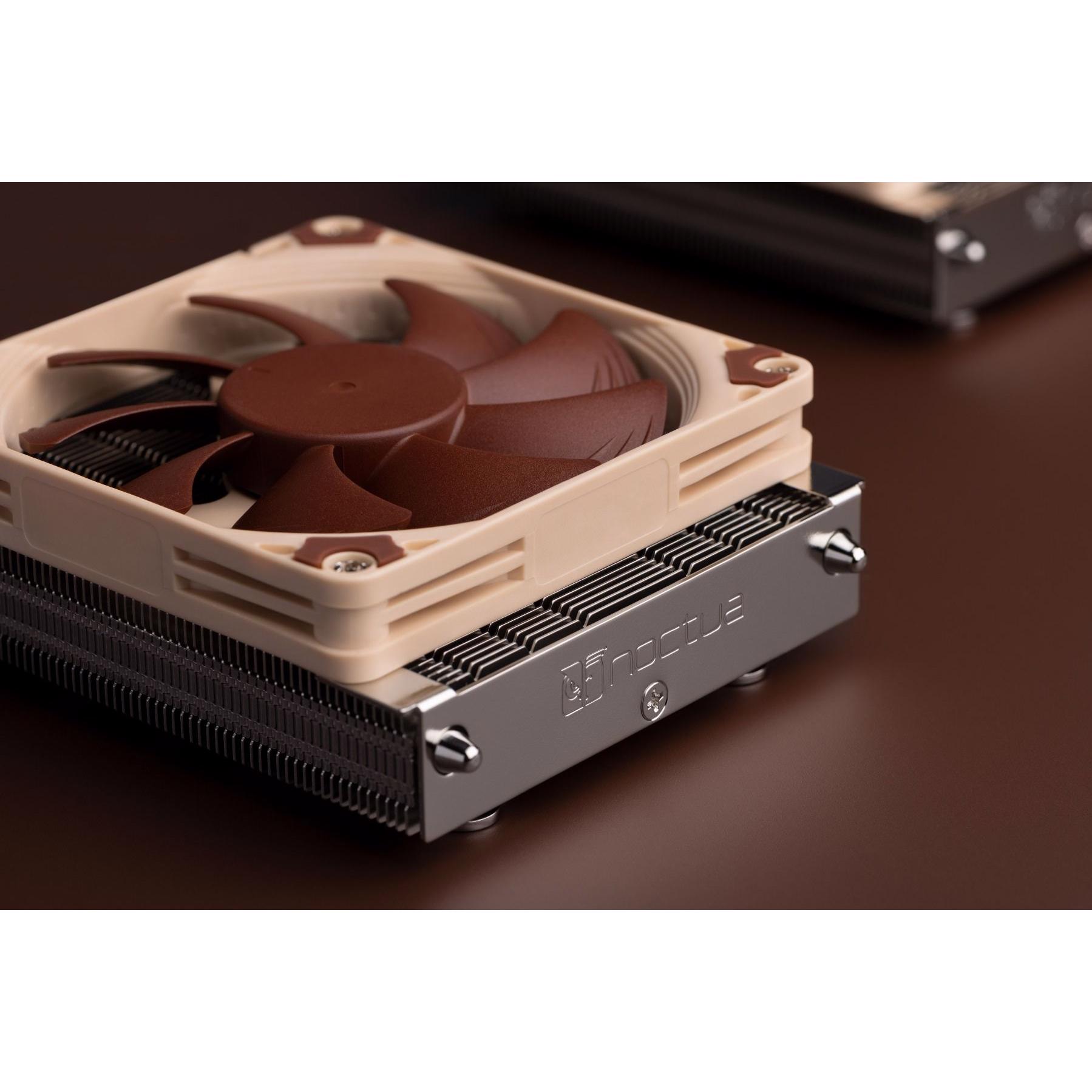

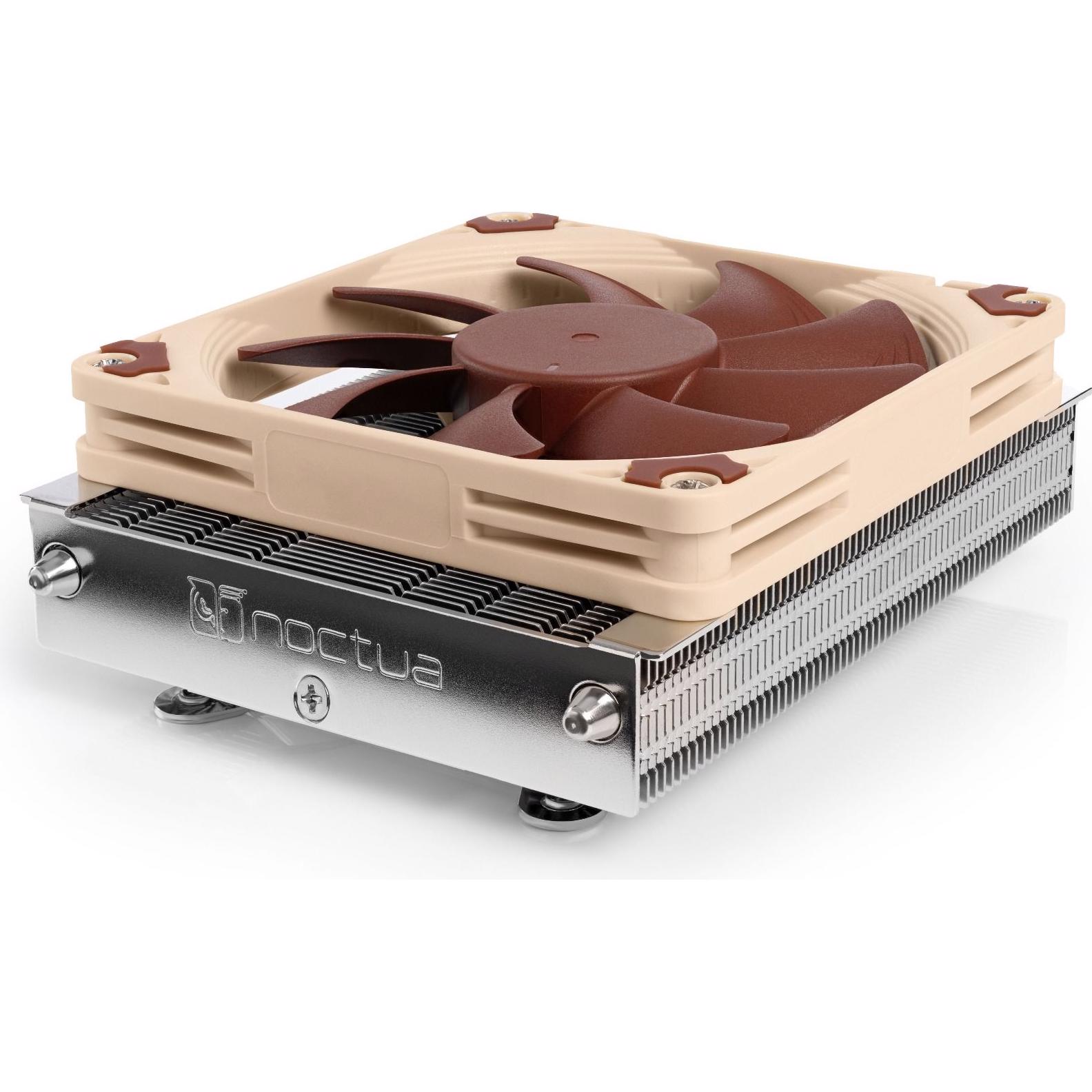

The NH-L9a-AM5 is the AM5-specific revision of Noctua's award-winning NH-L9a low-profile CPU cooler for AMD Ryzen based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9a is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2 mounting system for the AM5 socket makes installation a breeze and, thanks to the highly optimized NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9a-AM5 runs remarkably quietly. Topped off with Noctua's renowned NT-H1 thermal compound, the NH-L9a-AM5 combines everything users have come to expect from Noctua's larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with AMD AM5 processors.

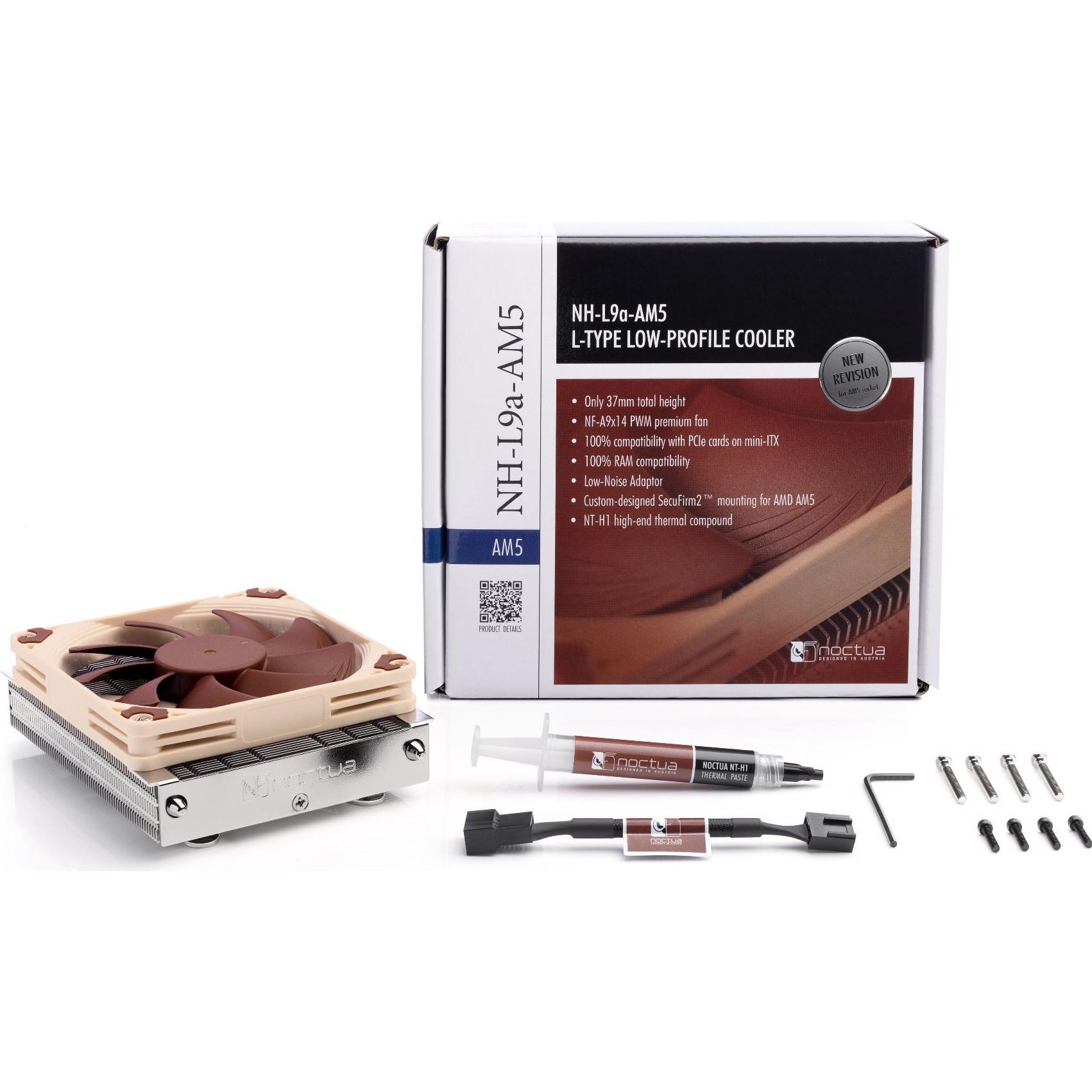

Key Selling Points
- Revision for AMD's AM5 (LGA1718) socket
- 37mm low profile
- 100% RAM compatibility
- 100% compatibility with PCIe cards
- Easy access to near-socket connectors
- NF-A9x14 PWM premium fan
- Low-noise adaptor
- Custom-designed SecuFirm2 mounting for AM5
- NT-H1 thermal compound
- Soldered interface between heatpipes and fins
Product Features
Since the original NH-L9a coolers for AM3 and AM4 have received more than 100 awards and recommendations from international hardware websites and magazines, this AM5 revision builds on the same proven heatsink design to provide excellent low-profile cooling performance for AMD's latest Ryzen processors.

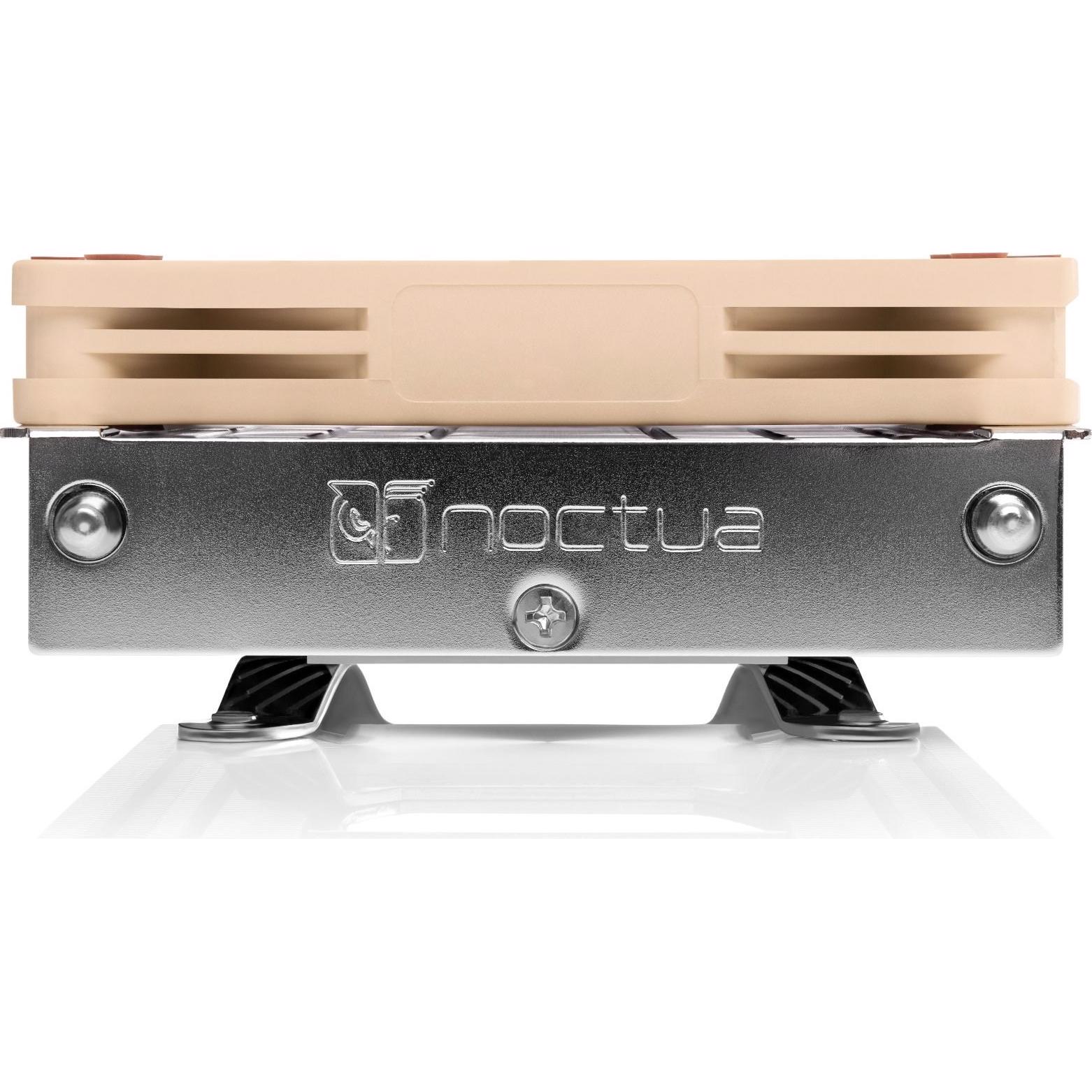

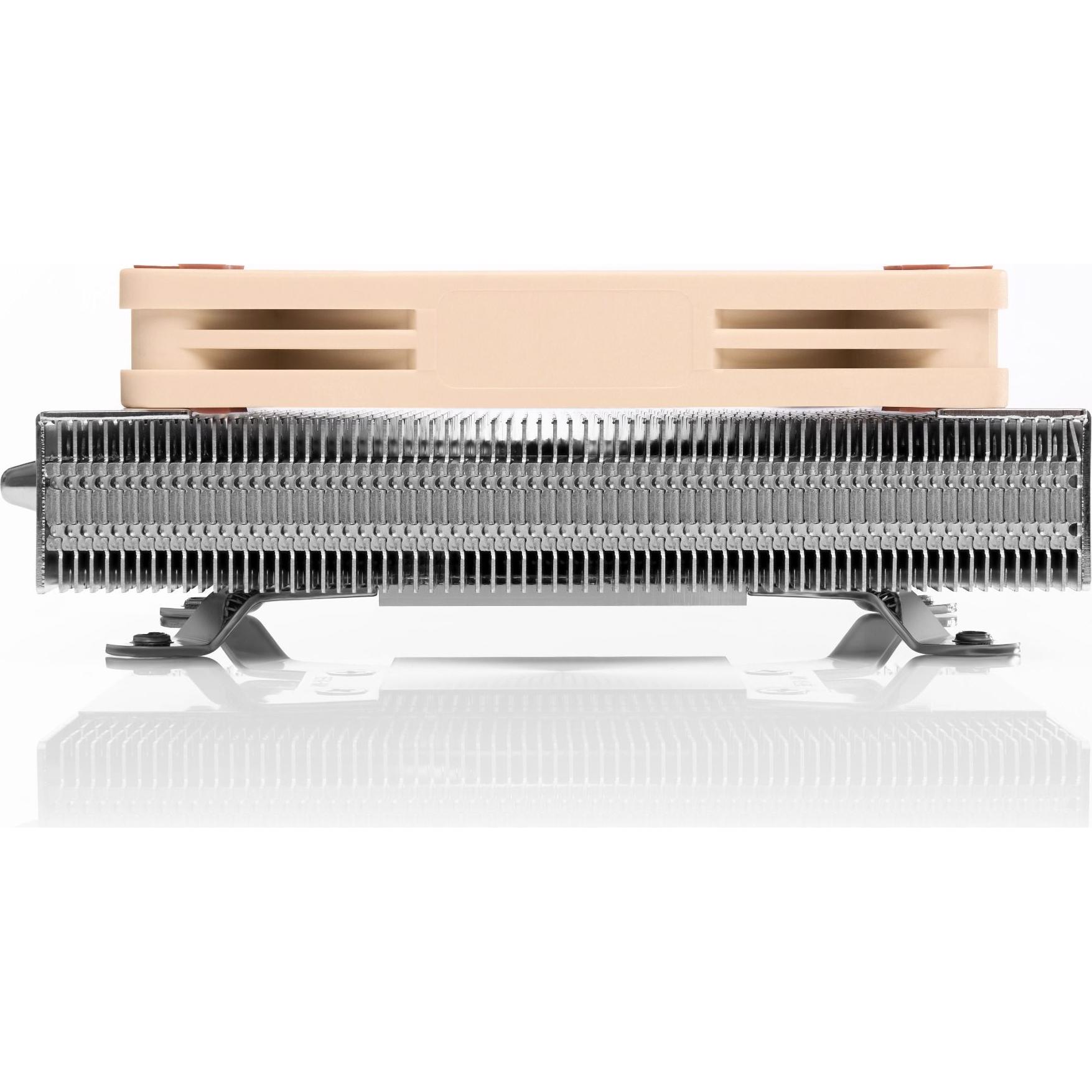

Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.
The NH-L9a-AM5 has a compact footprint that fully complies with the socket keep-out zones specified by AMD. This means that neither the heatsink nor the fan overhang the RAM, so the cooler provides easy access to the slots and is fully compatible with tall memory modules.
Some AMD-based mini-ITX motherboards have the PCIe slot located close to the CPU socket zone. While larger coolers that exceed this zone may block the PCIe slot, the compact-sized NH-L9a-AM5 provides full compatibility with PCIe cards.
Many low-profile coolers use larger fans or heatsinks in order to achieve sufficient performance, but by protruding over the socket zone, they make it difficult or even impossible to reach near-socket connectors on tightly packed ITX motherboards. Thanks to its compact footprint, the NH-L9a-AM5 provides easy access to all connectors and components.
The highly optimized NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9a to stay remarkably quiet.
Allowing the maximum speed of the NF-A9x14 PWM fan to be reduced from 2500 to 1800rpm, the included Low-Noise Adaptor (LNA) makes it possible to achieve near-silent setups with suitable CPUs/APUs that only create smaller heat loads.
The NH-L9a-AM5 comes with a custom-designed SecuFirm2 mounting system for AM5 (LGA1718). Allowing the heatsink to be fixed from the back of the motherboard through the holes of the stock backplate, it makes installation easier than ever, all while maintaining the trusted SecuFirm2 quality.
Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminum, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-L9a's fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn't deteriorate even after many years of usage.
Noctua L9a-AM5 Low Profile AM5 CPU Cooler
VIC :
VIC Warehouse
Out of stock
WA :
Bentley
ETA 12/6/2026
Cockburn
ETA 12/6/2026
Osborne Park
ETA 12/6/2026
WA Warehouse
ETA 11/6/2026
Wangara
ETA 12/6/2026
PLE Code
PLE-657822Manufacturer
NoctuaBoxed Weight
0.62Model Number
NH-L9a-AM5Warranty
3 Year PLE Standard Return to Base
