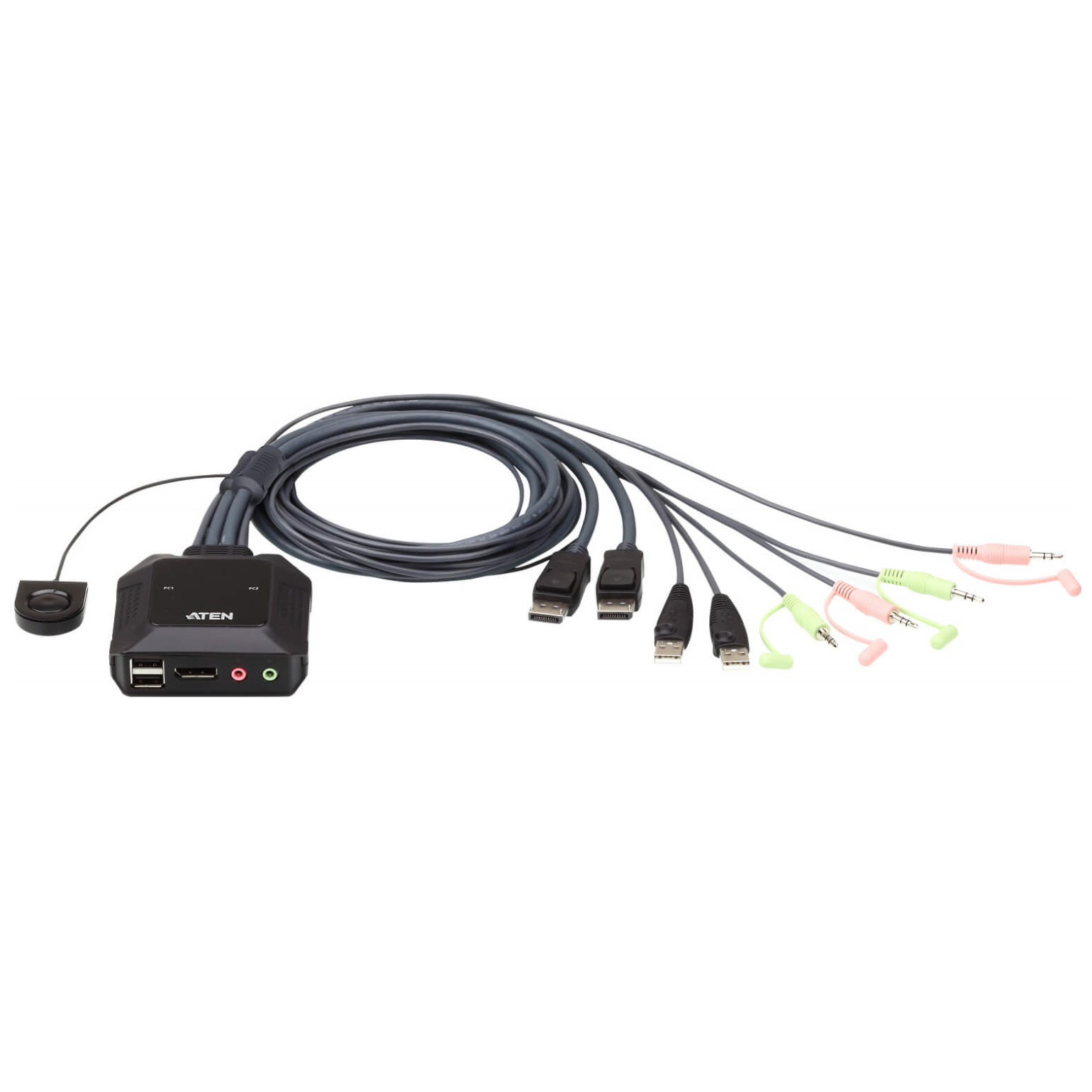

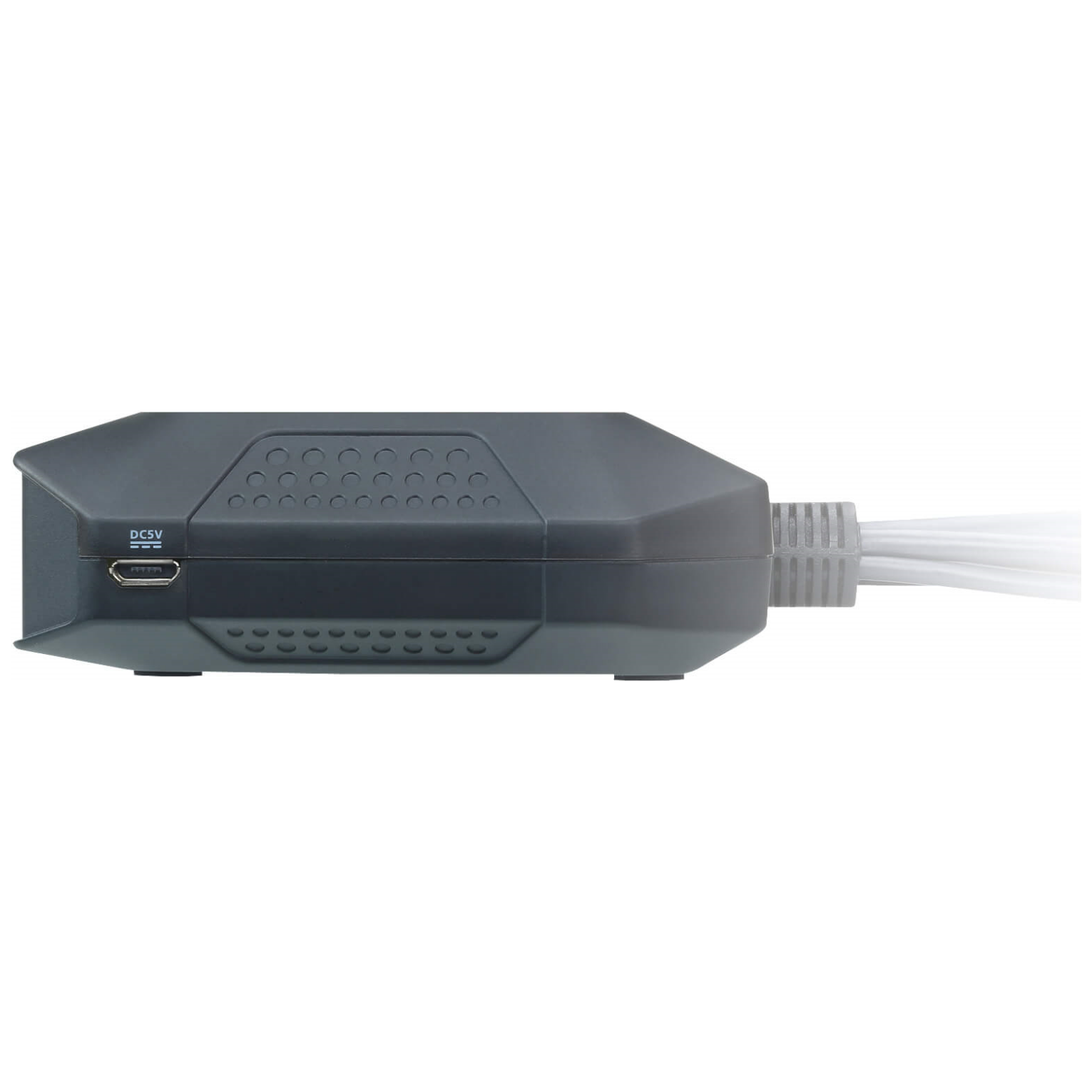

A product image of ATEN 2 Port USB Displayport KVM Switch w/ Remote Port Selecter

ATEN 2 Port USB Displayport KVM Switch w/ Remote Port Selecter

Add to Cart
Add to Wishlist

ATEN 2 Port USB Displayport KVM Switch w/ Remote Port Selecter

ATEN 2 Port USB Displayport KVM Switch w/ Remote Port Selecter

Add to Cart
Add to Wishlist
Stock Availability
Vic Warehouse
WA :
Osborne Park
WA Warehouse
Set your location for shipping prices
Use device location
Product Information

PLE Code




Boxed Weight


Model Number



1 Year PLE Standard Return to Base
Share This Product On Socials
Product Description
The CS22DP 2-port USB DisplayPort cable KVM switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton. The CS22DP supports multiplatform operations allowing you to switch between two PC's running different operating systems. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized. It's fast and easy to set up the CS22DP. Simply plug the KVM cables into their respective ports on the CS22DP and on the computers. There is no need to install software or configure devices - just plug and play.
Product Specifications
Product Description
ATEN CS22DP - KVM / audio / USB switch - 2 ports
Device Type
KVM / audio / USB switch - 2 ports
2 x KVM / audio / USB
KVM Users Qty
1 local user
Remote Port Selector
Dimensions (WxDxH)
8.42 cm x 8.34 cm x 3.04 cm
350 g
System Requirements
Apple MacOS, Linux, Microsoft Windows 2000/XP/Vista/7
Enclosure Type
KVM Local Users Qty
1 local user
Keyboard / Mouse Interface
Max Resolution
2560 x 1600 @ 60 Hz
Status Indicators
Port status
4 x keyboard (USB) / mouse (USB) Type A2 x DisplayPort input1 x DisplayPort output2 x keyboard (USB) / mouse (USB) Type A2 x audio input mini-jack2 x microphone output mini-jack1 x audio output mini-jack1 x microphone input mini-jack
Power Consumption Operational
6.5 Watt
Included Accessories
Remote port selector switch
Cables Included
2 x keyboard / mouse / video / audio cable - 1.2 m1 x remote control cable - 1.8 cm
Compliant Standards
OS Required
Apple MacOS, Linux, Microsoft Windows 2000/XP/Vista/7
8.42 cm
8.34 cm
3.04 cm
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 80% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
60 °C
