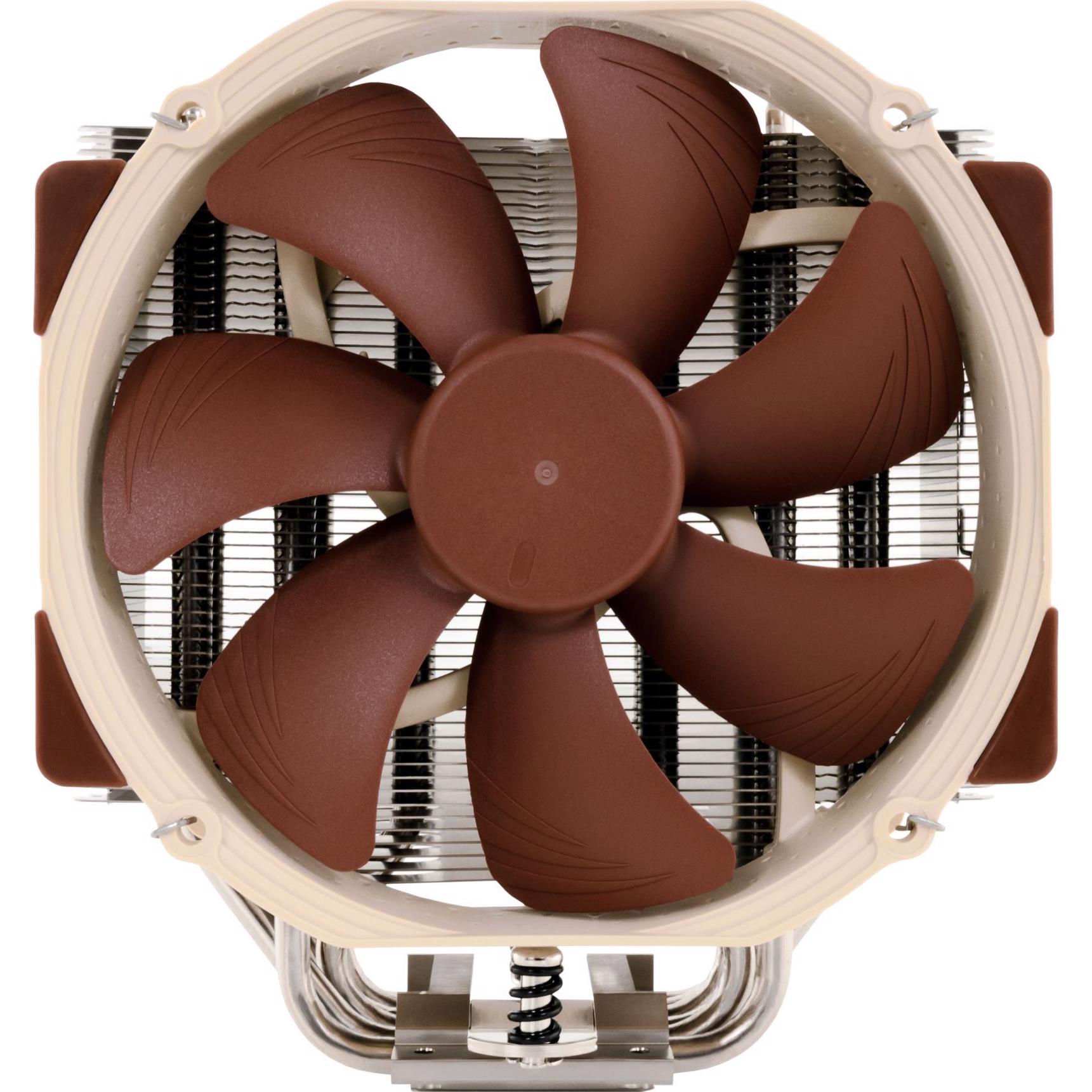

A product image of Noctua NH-U14S CPU Cooler

Noctua NH-U14S CPU Cooler

$159.00
Add to Cart
Add to Wishlist

Noctua NH-U14S CPU Cooler

Noctua NH-U14S CPU Cooler

Add to Cart
Add to Wishlist
Stock Availability

Bentley (WA)
Out of stock
Notify me
Cockburn (WA)
Out of stock
Notify me
Osborne Park (WA)
Out of stock
Notify me
Wangara (WA)
Out of stock
Notify me
WA Warehouse
Out of stock
Notify me
Heatherton (VIC)
In stock
Product Information

PLE Code

PLE-612169

Manufacturer

Noctua

Boxed Weight

1.73kg

Model Number

NH-U14S

Warranty

3 Year PLE Standard Return to Base
Share This Product On Socials
Product Description
While the large, six heatpipe design and the 140 mm fan with PWM support for fully automatic speed control allow the cooler to best the renowned quiet cooling performance of all other U-series coolers, its 52 mm slim shape still guarantees full compatibility with tall RAM modules on LGA2011. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system, Noctua's proven NT-H1 thermal compound, the NH-U14S is a complete premium quality solution that combines superb performance, high compatibility and quiet operation.
Product Summary
Standing 165 mm tall, the NH-U14S is short enough to fit most modern high-end cases. Measuring 150 mm wide, the NH-U14S provides better compatibility with SLI and CrossFire setups as compared to tower coolers.
The NF-A15 is a premium quality quiet 140 mm fan with a round frame that complies with Noctua's AAO standard. Featuring sophisticated aerodynamic design measures such as flow acceleration channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14.
The NF-A15 140 mm fan supplied with the NH-U14S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200 rpm using the supplied low-noise adaptor for even quieter operation.
Noctua's SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. The SecuFirm2 mounting included with the NH-U14S guarantees perfect contact pressure and maximum convenience on all current sockets.
Product Specifications
Product Type
Processor cooler
Package Content

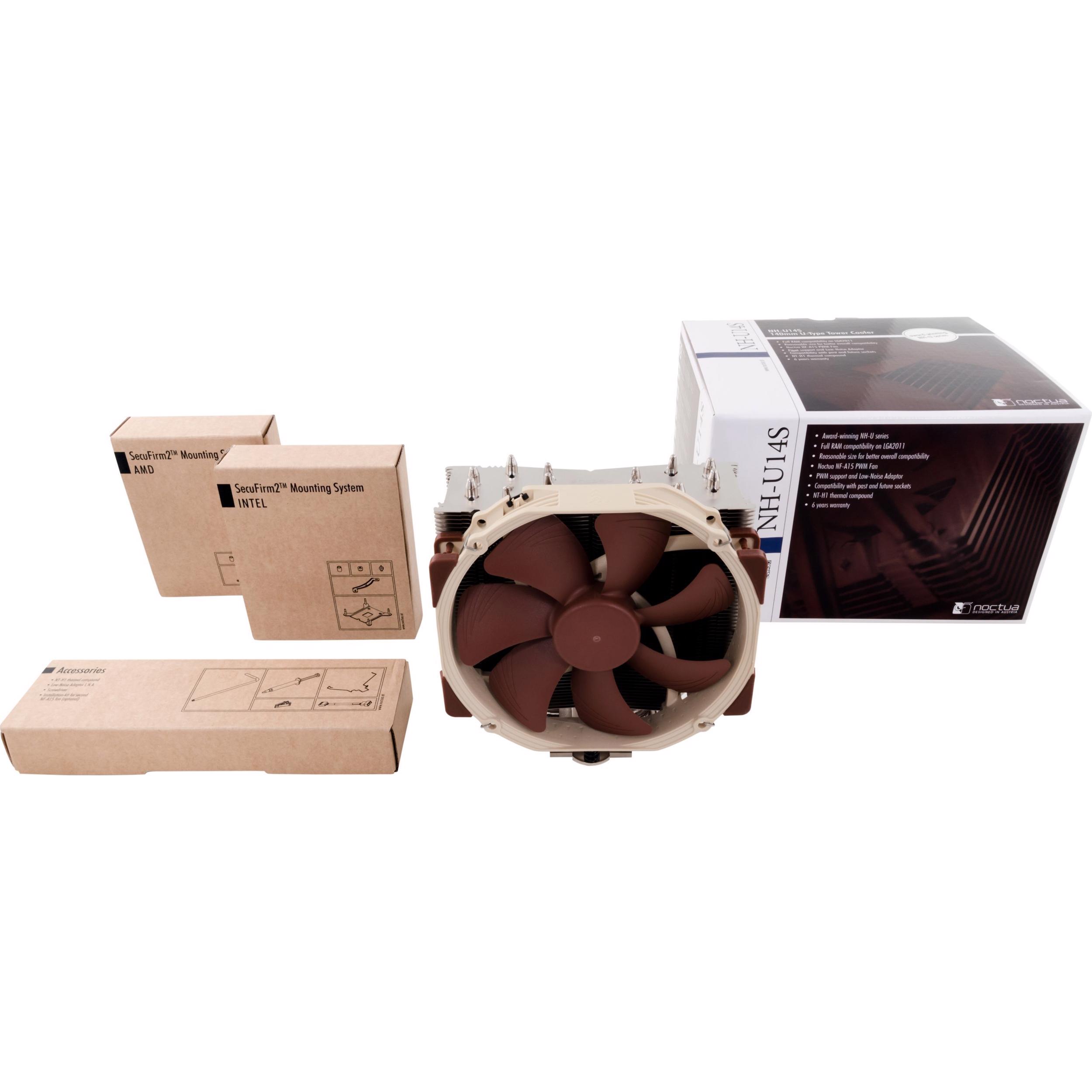

Thermal paste, Low-Noise Adaptor (L.N.A.), SecuFirm2 Mounting Kit
Width
15 cm
Depth
7.8 cm
Height
16.5 cm
Weight
935 g
Compatible With
LGA1156 Socket, Socket AM2, Socket AM2+, Socket AM3, LGA1155 Socket, Socket AM3+, LGA2011 Socket, Socket FM1, Socket FM2, LGA1150 Socket, LGA1151 Socket, Socket AM4
Heatsink Material
Aluminium and copper
Heatsink Dimensions
165 mm x 150 mm x 52 mm
Fan Diameter
140 mm
Fan Height
25 mm
Fan Bearing
SSO2 bearing
Rotation Speed
300-1500 rpm
Air Flow
68 cfm
Noise Level
24.6 dBA
Power Connector
4-pin fan connector
Rated Voltage
12 V
Features
Pulse-width modulation (PWM) support
MTBF
150,000 hour(s)
Service & Support
Limited warranty - 6 years
Service & Support Details
Limited warranty - 6 years
Storage Capacity
Noctua NH-U14S - processor cooler
Processors Installed
Thermal paste, Low-Noise Adaptor (L.N.A.), SecuFirm2 Mounting Kit
Encryption Algorithm
Socket 1156, Socket AM2, Socket AM2+, Socket AM3, Socket 1155, Socket AM3+, Socket 2011, Socket FM1, Socket FM2, Socket 1150
Dimensions (WxDxH)
15 cm x 7.8 cm x 16.5 cm
Manufacturer Warranty
6 years warranty
Product Description
Noctua NH-U14S - processor cooler
Compatibility
LGA1156 Socket, Socket AM2, Socket AM2+, Socket AM3, LGA1155 Socket, Socket AM3+, LGA2011 Socket, Socket FM1, Socket FM2, LGA1150 Socket, LGA1151 Socket
From the manufacturer
This document and other documents provided pursuant are for informational purposes only. The information type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of this document. This document may include screenshots from the manufacturer's website which may be used for multiple variations of this product. The model number supplied at the top of this page (explicitly specified as "Model Number") is the exact model item you will receive.
