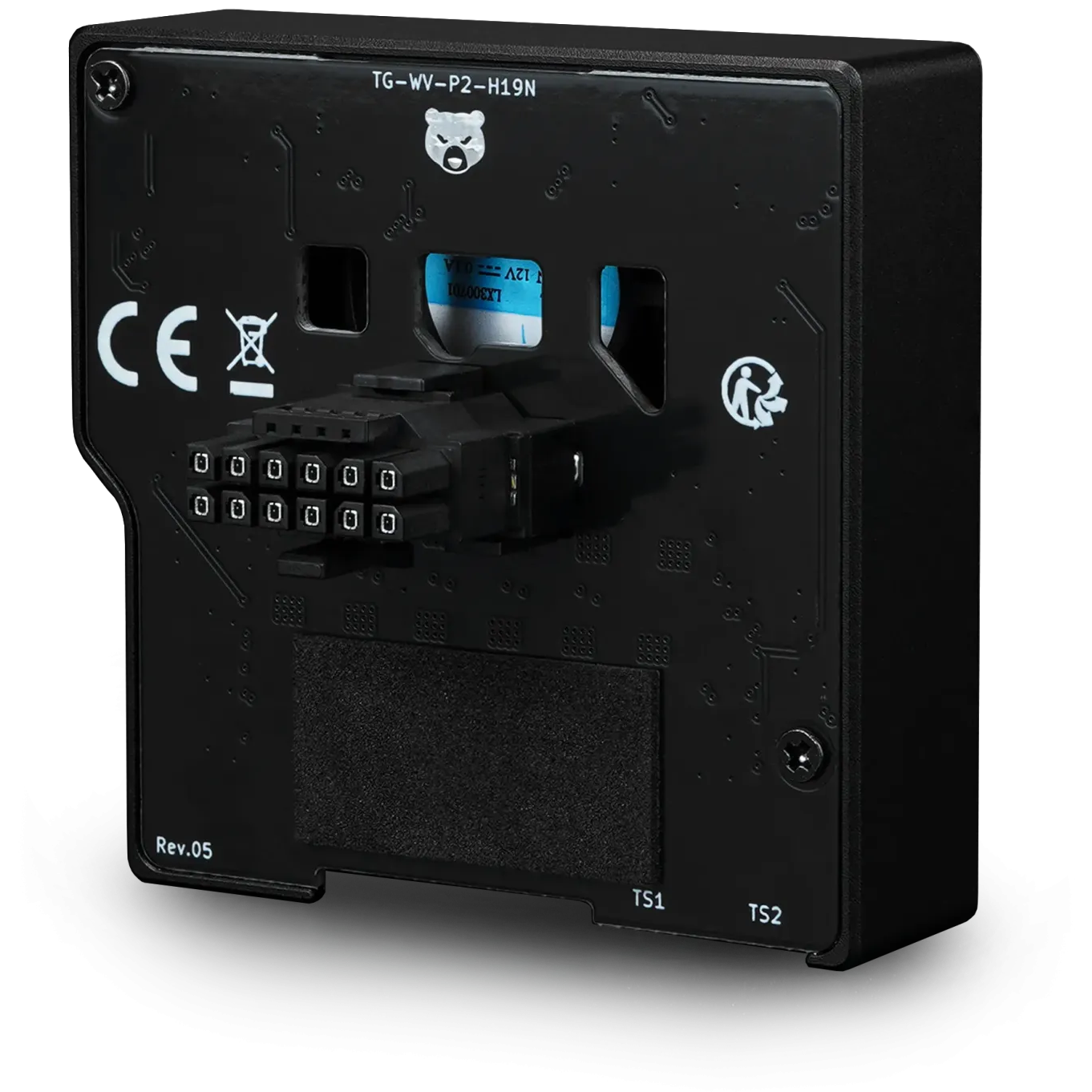

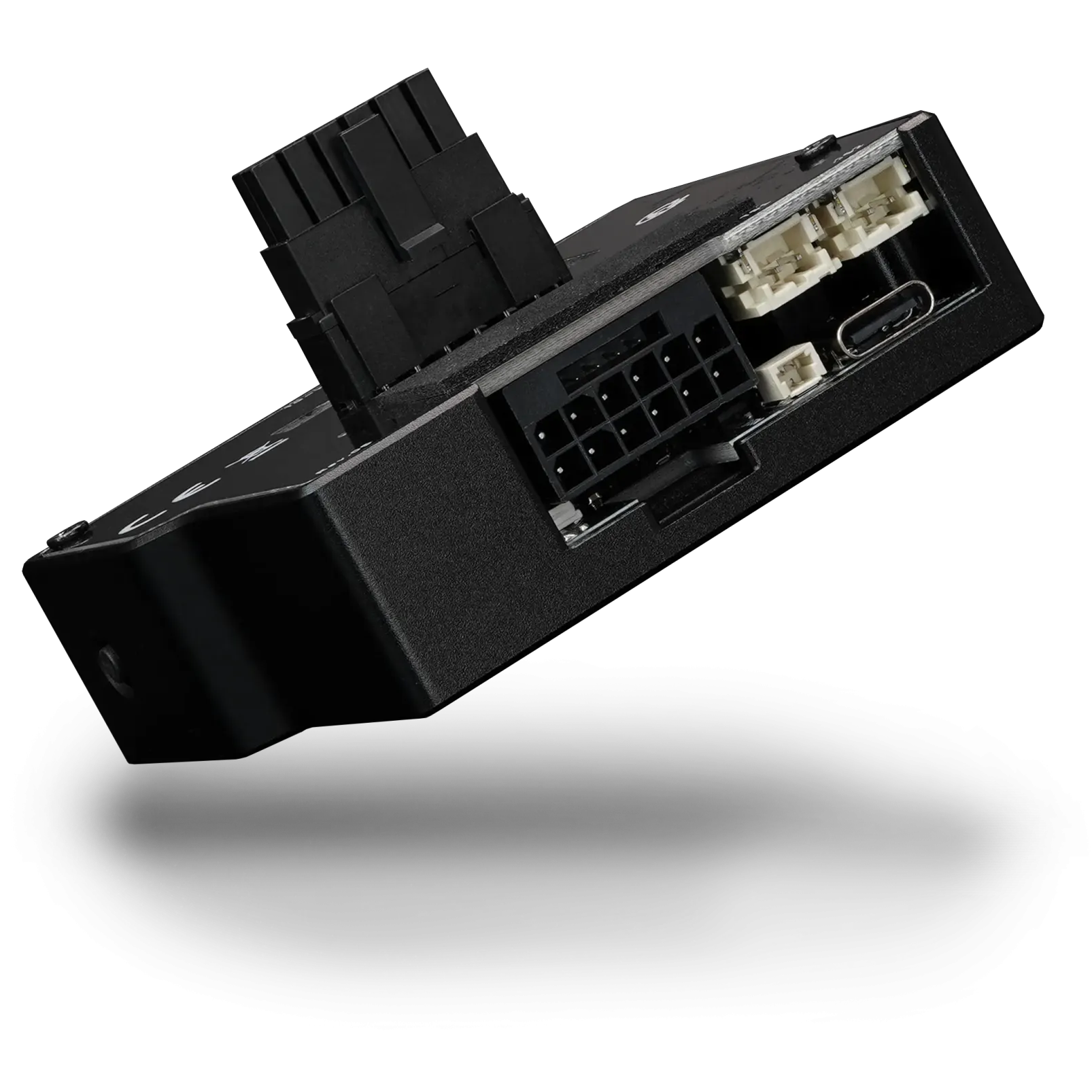

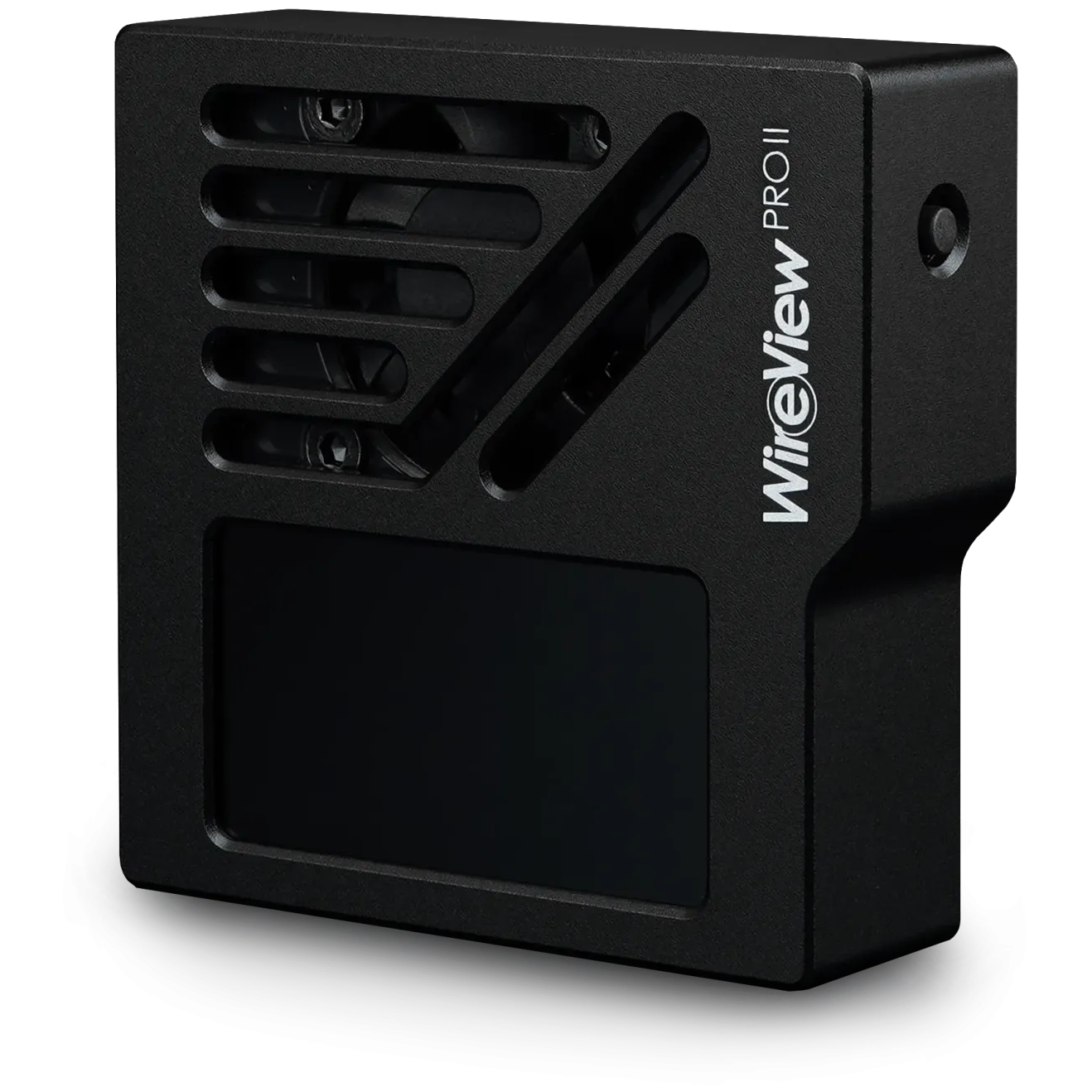

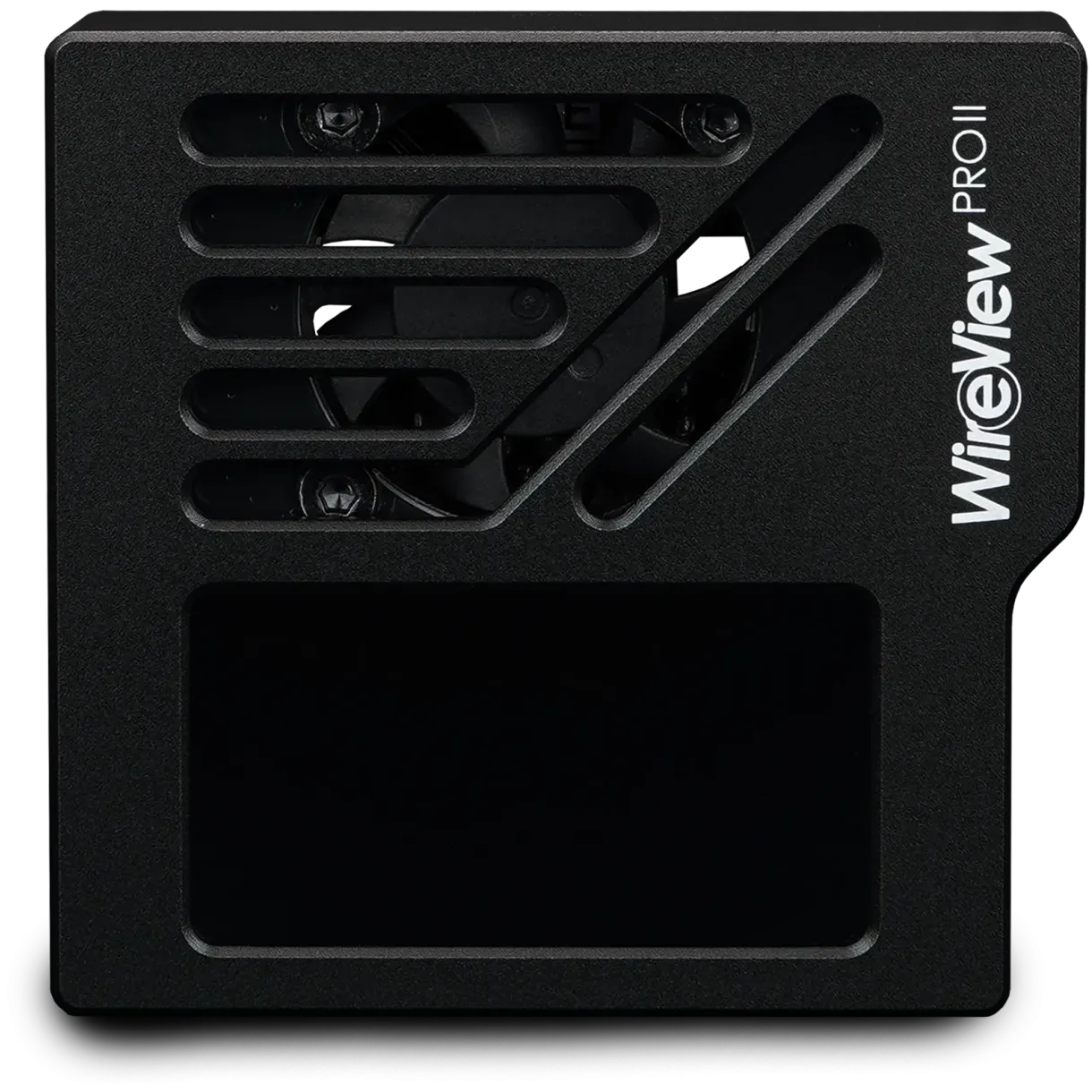

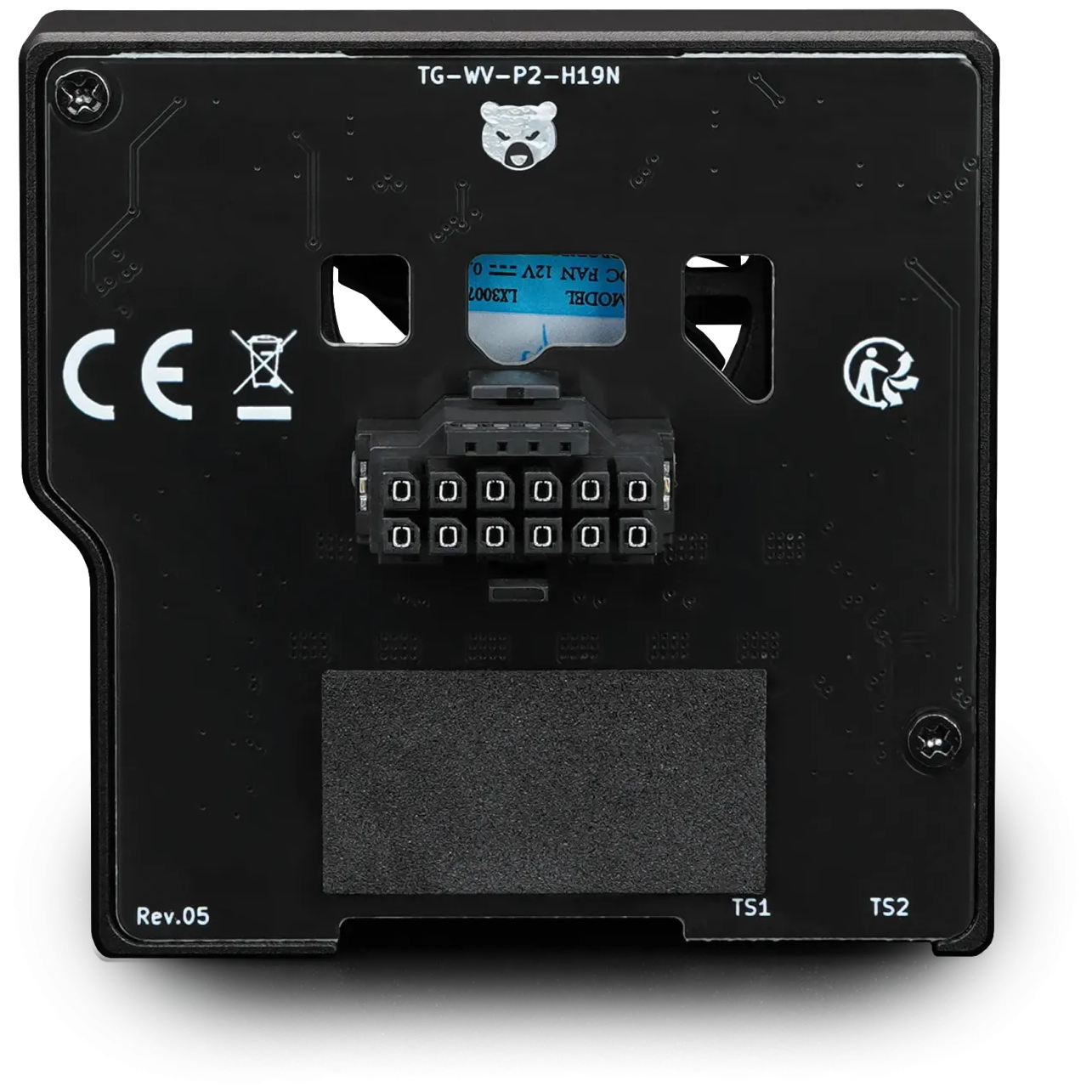

The WireView Pro II has been specifically developed for the demanding use of modern high-end graphics cards with the 12V-2x6 connector and represents the most advanced iteration of the WireView Pro. Current is not only measured as a total value, but also per each individual pin and wire of the 12V-2x6 connector. This enables immediate identification of potential contact issues between the cable and graphics card. The WireView Pro II has been purpose-built to enable precise monitoring of the 12V-2x6 connector, allowing early detection of load distribution problems and helping to prevent possible damage to the graphics card and the 12V-2x6 connector.

Important Information on Compatibility Checking!

Before purchasing a WireView Pro II, it should be verified whether the graphics card in use is compatible. To do so, the following steps can be carried out:

Check Thermal Grizzly's compatibility list. The compatibility list is designed based on a horizontal installation of the graphics card with the power cable routed toward the bottom of the case.

Using the technical drawing in the download section of the product page, check whether the WireView Pro II is compatible with the graphics card, the case (clearances to the side panel, etc.), and, if applicable, the CPU cooler.

The WireView Pro II is available in two variants. The choice of variant primarily depends on the routing of the power cable from the power supply, as the display on the WireView Pro II can be rotated by 180° in the settings.

Depending on the orientation of the 12VHWPR or 12V-2x6 connector on the graphics card, either the “Normal (N)” or the “Reverse (R)” variant is required to route the power cable toward the graphics card cooler. The description assumes a horizontal installation of the graphics card with the power cable routed toward the bottom of the case.
