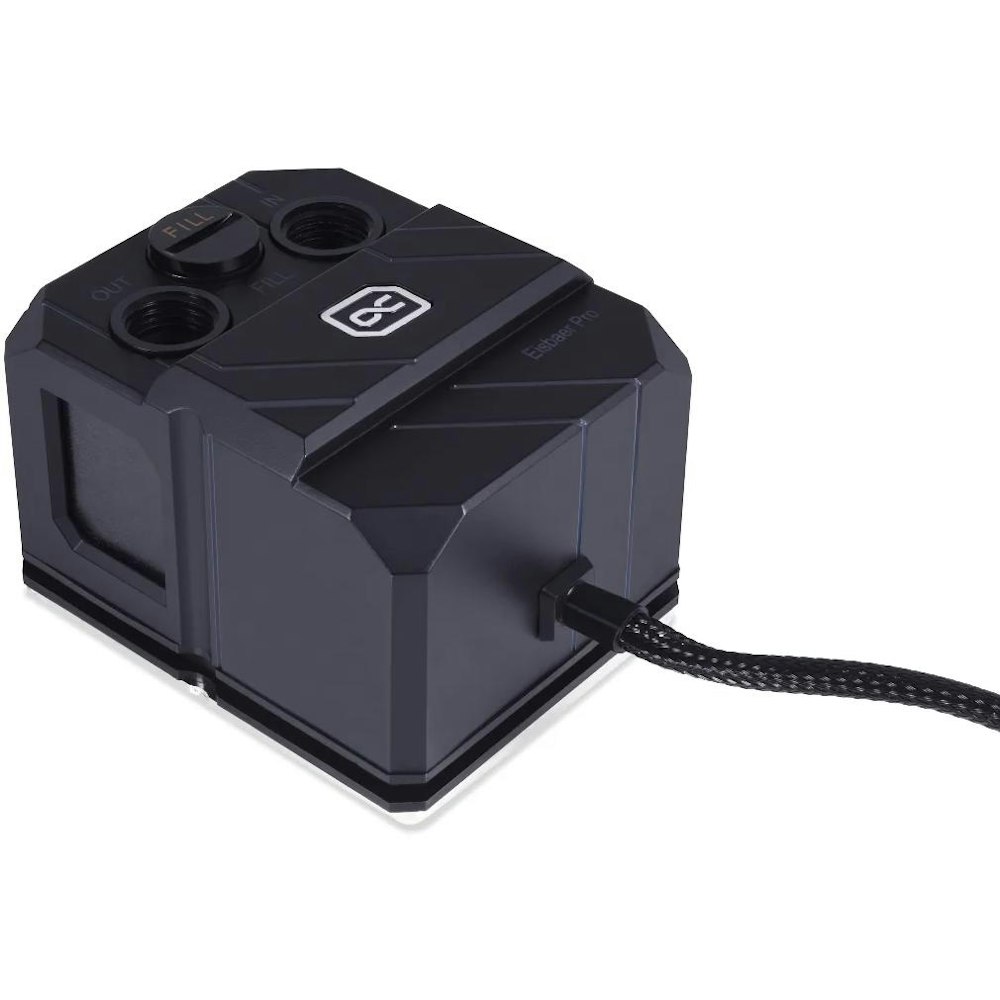

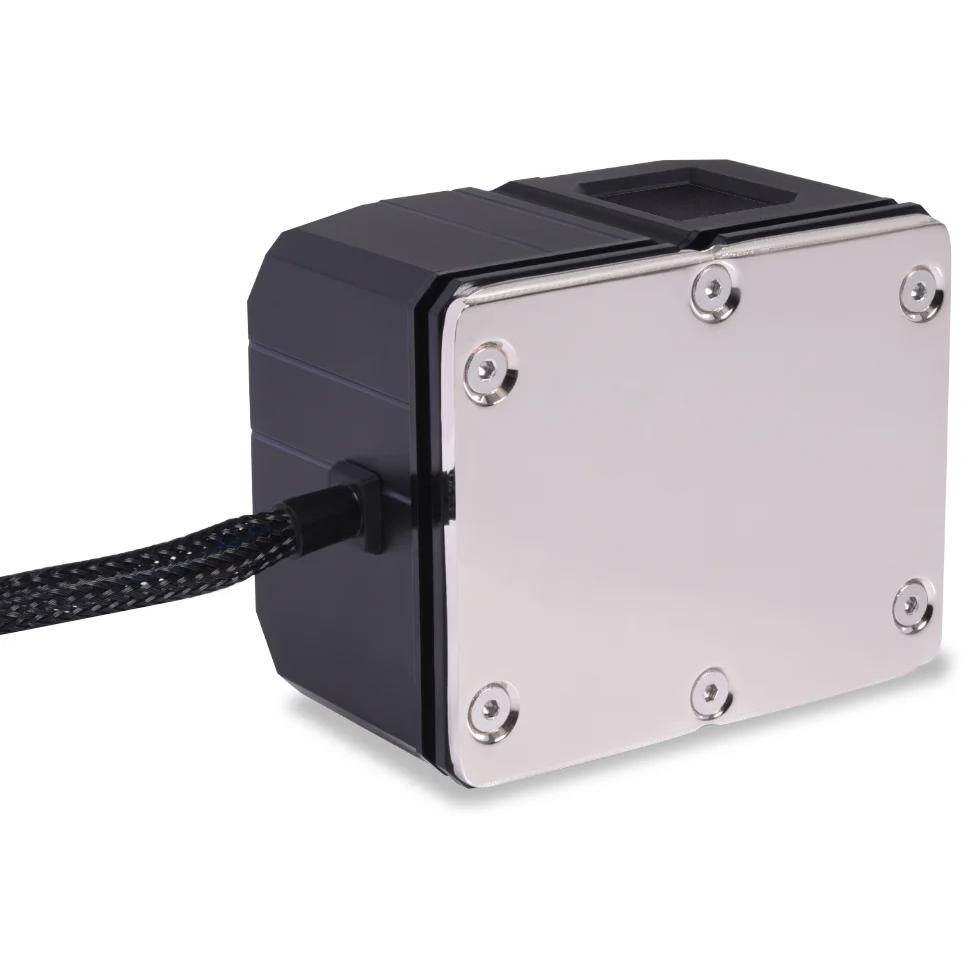

The Alphacool Eisbaer Pro ES was specially developed for extremely large CPU dies and fully covers processors such as the AMD Threadripper, as well as regular desktop CPUs. Expandable and fully compatible with DIY water cooling components, it is the optimal solution for the most powerful processors on the market. The cold plate bottom covers the entire surface of the processor, and the area of the cooling fins is larger than any CPU with an area of around 23.1cm². This ensures that all hotspots of a CPU are directly covered and thus optimally cooled.

Pump

The Eisbaer Pro ES cooler uses the very compact and small DC-LT 2 pump. It offers enough power to integrate other components such as a GPU water cooler or radiator into the water circuit.

Fitting Compatibility

Oversized fittings may restrict access to the fill port. We recommend using angled fittings rather than connecting tubing directly to the ports.

Compatibility

• Intel LGA1700, LGA1851, LGA 20XX, LGA 3647
• AMD AM4, AM5, TR4, sTR5, SP3, SP6, sWRX8

Technical data

• Dimensions: 64 x 79 x 54.3mm
• Material: Nickel plated copper
• Connections: 3x G1/4“
• Pressure tested: 0.8 Bar
• Pump type: DC-LT2
• Pump speed: 2600 rpm (+/- 10%)
• Operating voltage: 6-13.5V DC / 3.2W
• Maximum pumping head: 1m
• Maximum flow rate: 72 L/h
• Maximum working temperature: 60°C

Warning

Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
