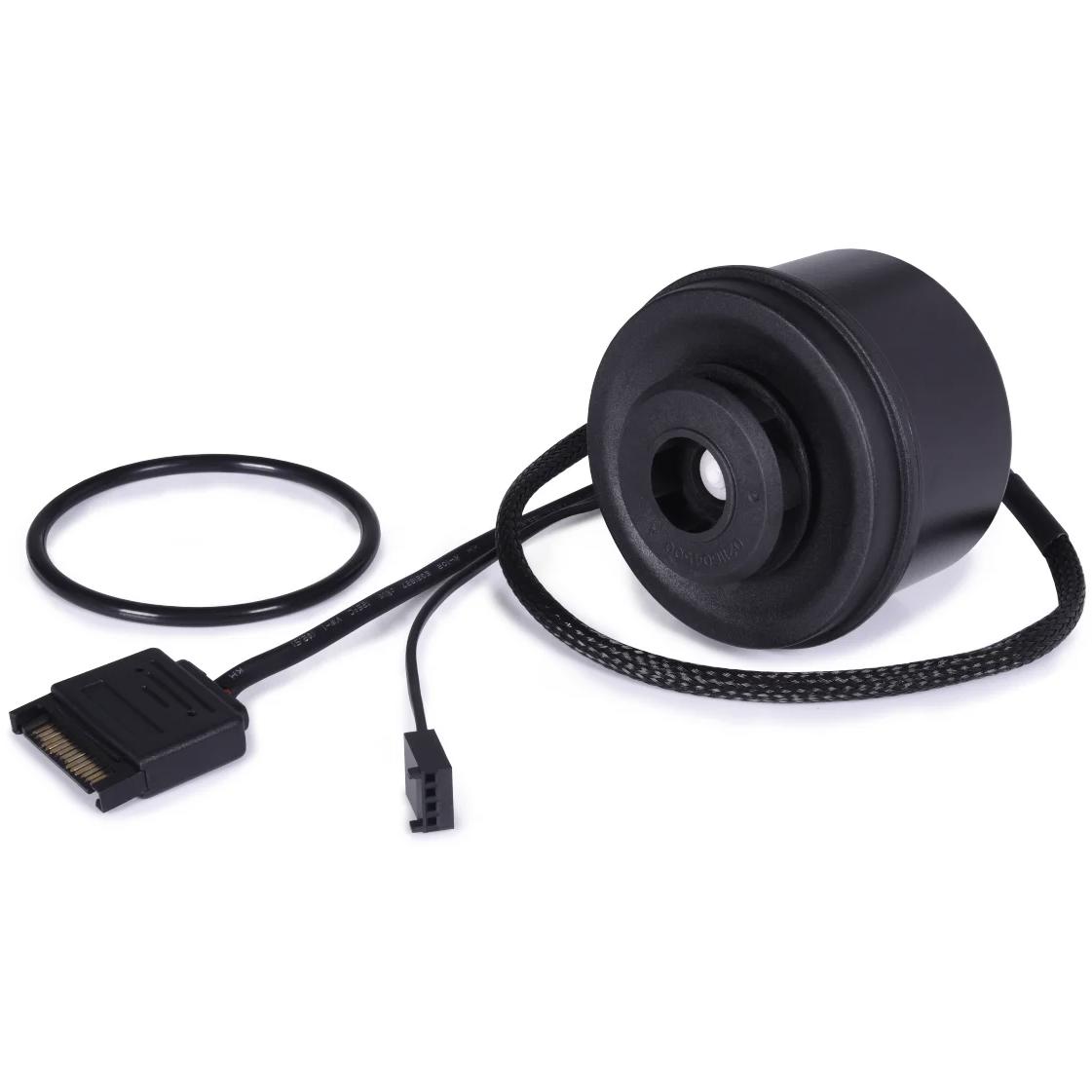

The Alphacool Apex VPP is a powerful pump that is compatible with the most popular D5/VPP tops and reservoirs. Via the 4-pin fan connector, the speed of the pump can be read and controlled via PWM signal. The Apex VPP is supplied with power via the SATA connector.

Features

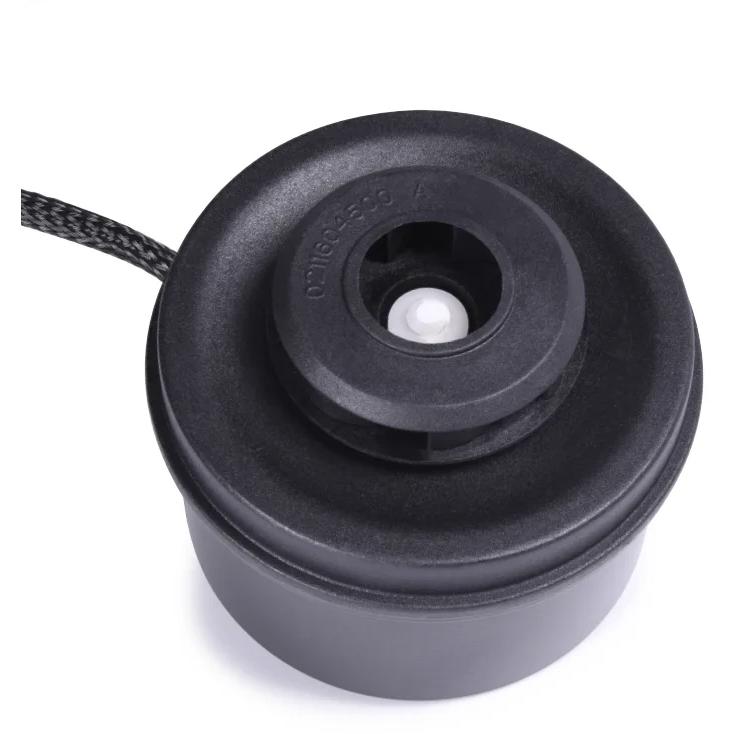

Alphacool's Apex VPP doesn't use a spherical bearing and relies on a ceramic axle. The motor's coils have been moved from the inside to the outside. These changes have the effect that the pump is fundamentally more stable and smoother running, and any vibrations that arise have been significantly reduced. Another positive side effect is that power consumption has been almost halved as a result.

Power supply

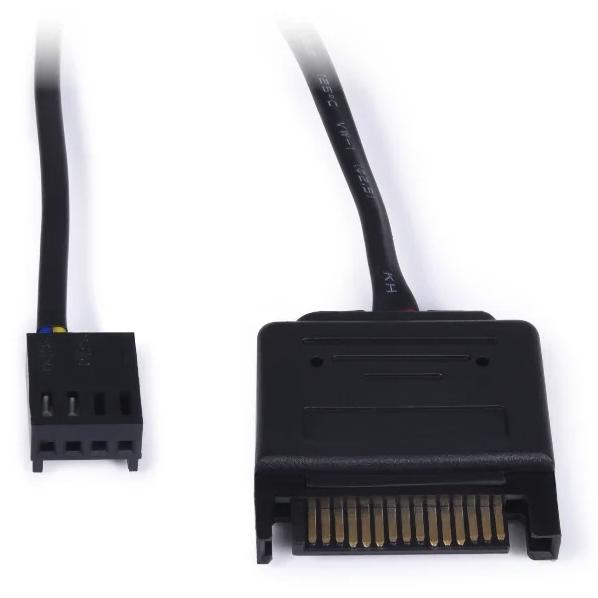

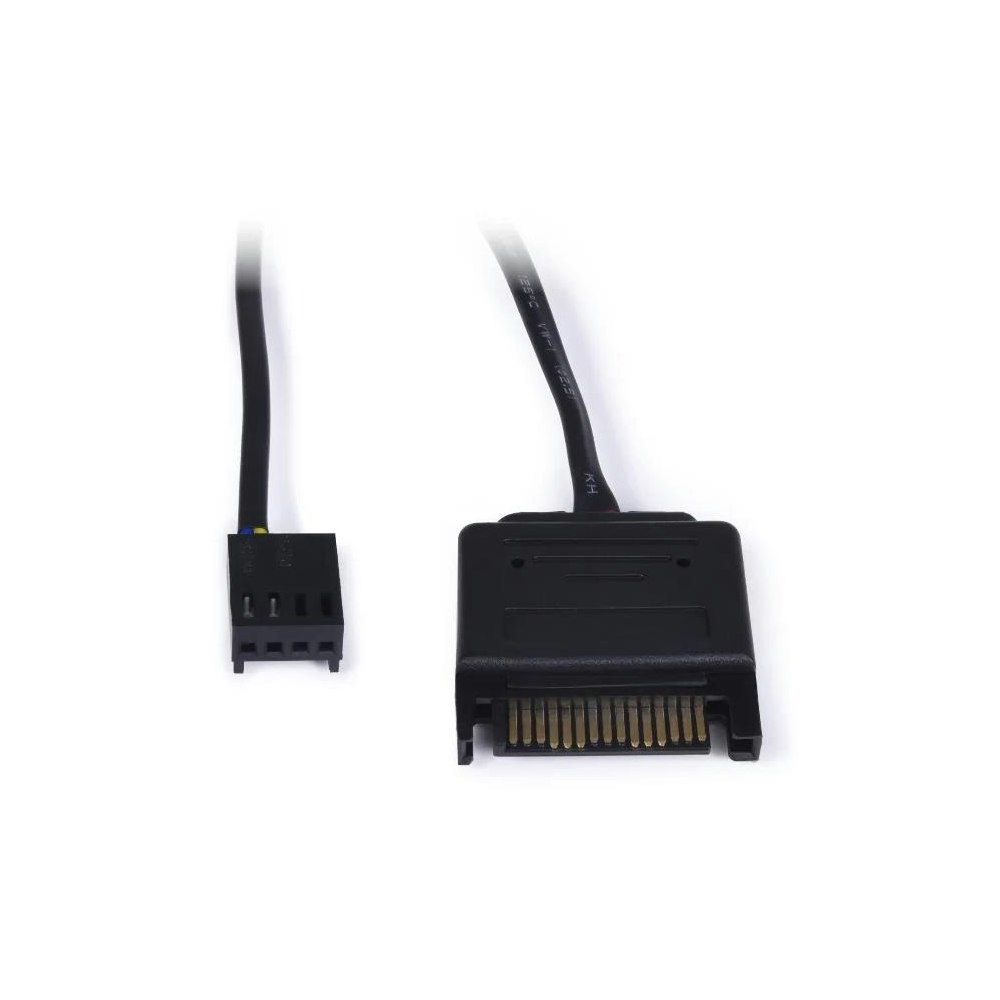

Compared to Alphacool's Eispumpe, the power is not supplied via a 4-pin Molex connector. Instead, the Apex VPP pump is connected to the power supply using a SATA connector.

Control

The Apex VPP pump has a 4-pin fan connector that connects to the motherboard or to an external controller. This allows you to control the speed range of the pump via PWM and read out the RPM signal.

Compatibility

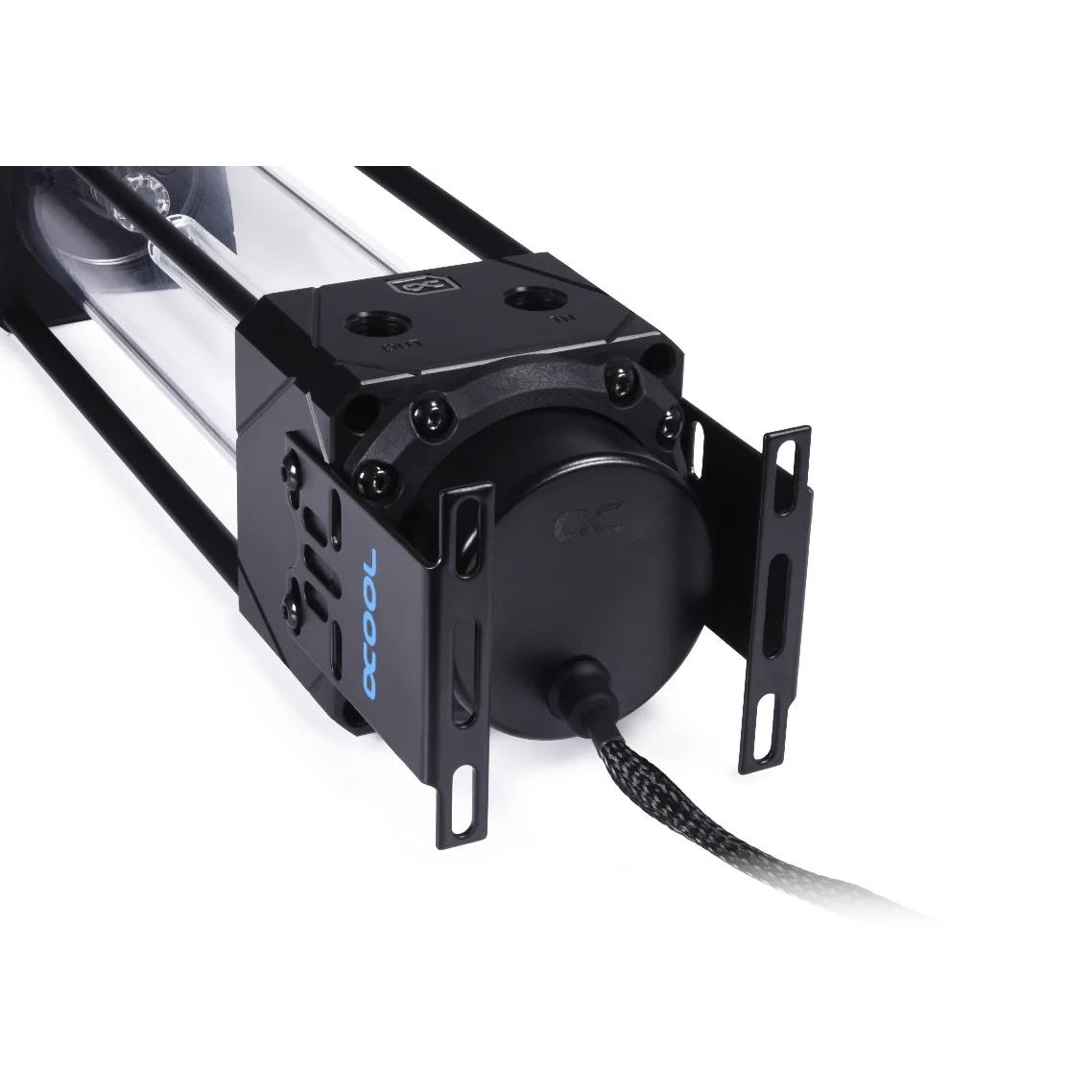

The Apex VPP pump is compatible with the most popular D5/VPP pump tops and reservoirs.

Technical data

• Dimensions: 65 x 65 x 41mm
• Weight: 276g
• Connections: 4-Pin PWM, SATA
• Rotational speed: 2500 - 4500 RPM
• Cable lengths: 48cm
• Operating voltage: 8-13V DC / 14W IP32
• Starting voltage: 12V DC
• Maximum pumping head: 4.25m
• Maximum flow rate: 340L/h
• Maximum working temperature: 60°C

Warning

Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
