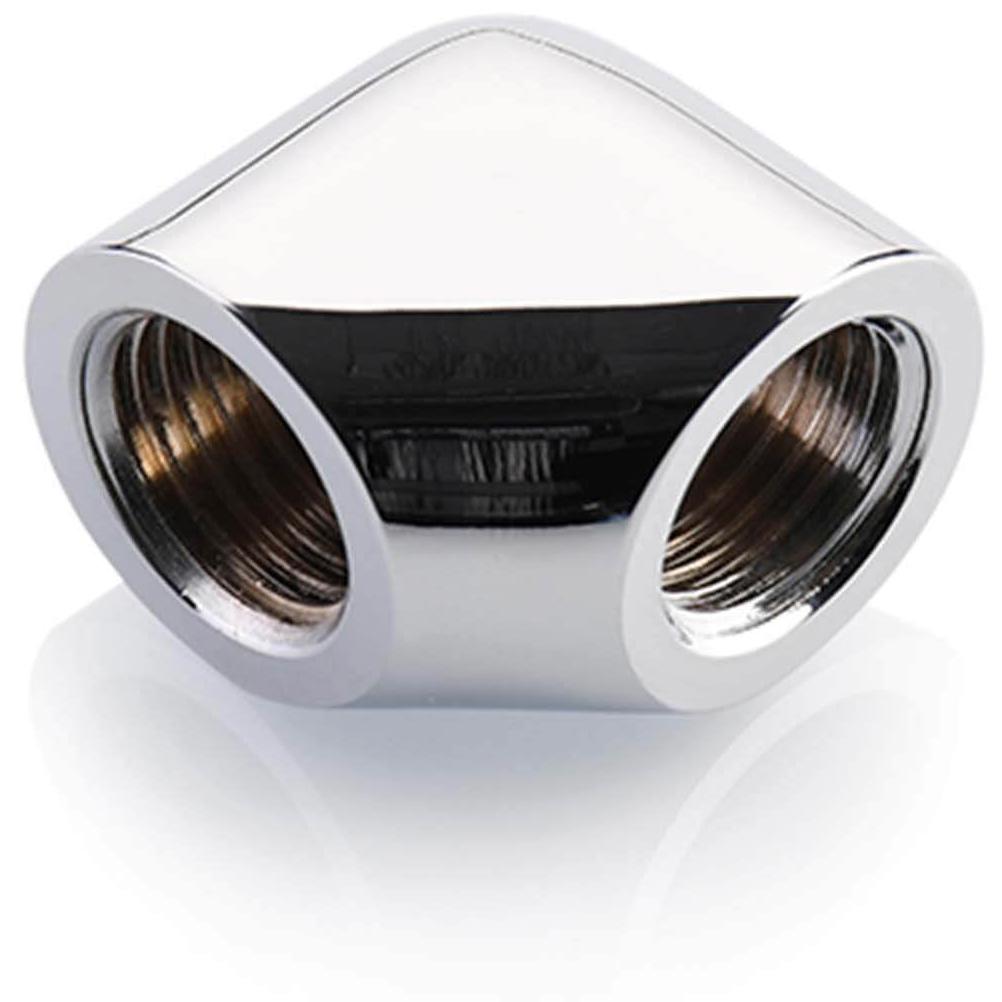

  • A large main feature product image of Bykski G1/4" 90 Degree Elbow Fitting (Silver)
  • A large main feature product image of Bykski G1/4" 90 Degree Elbow Fitting (Silver)
A small tile product image of Bykski G1/4" 90 Degree Elbow Fitting (Silver)
A small tile product image of Bykski G1/4" 90 Degree Elbow Fitting (Silver)

The Bykski G1/4in Female to Female 90 Degree Extended Elbow Fitting is an easy solution when trying to change direction quickly with your loop. By using tubing fittings on each side you can turn 90 degrees. This version has extended the end of the fitting out a touch to increase the fitting clearance to 23.7mm.


Specifications

  • Thread: G1/4in

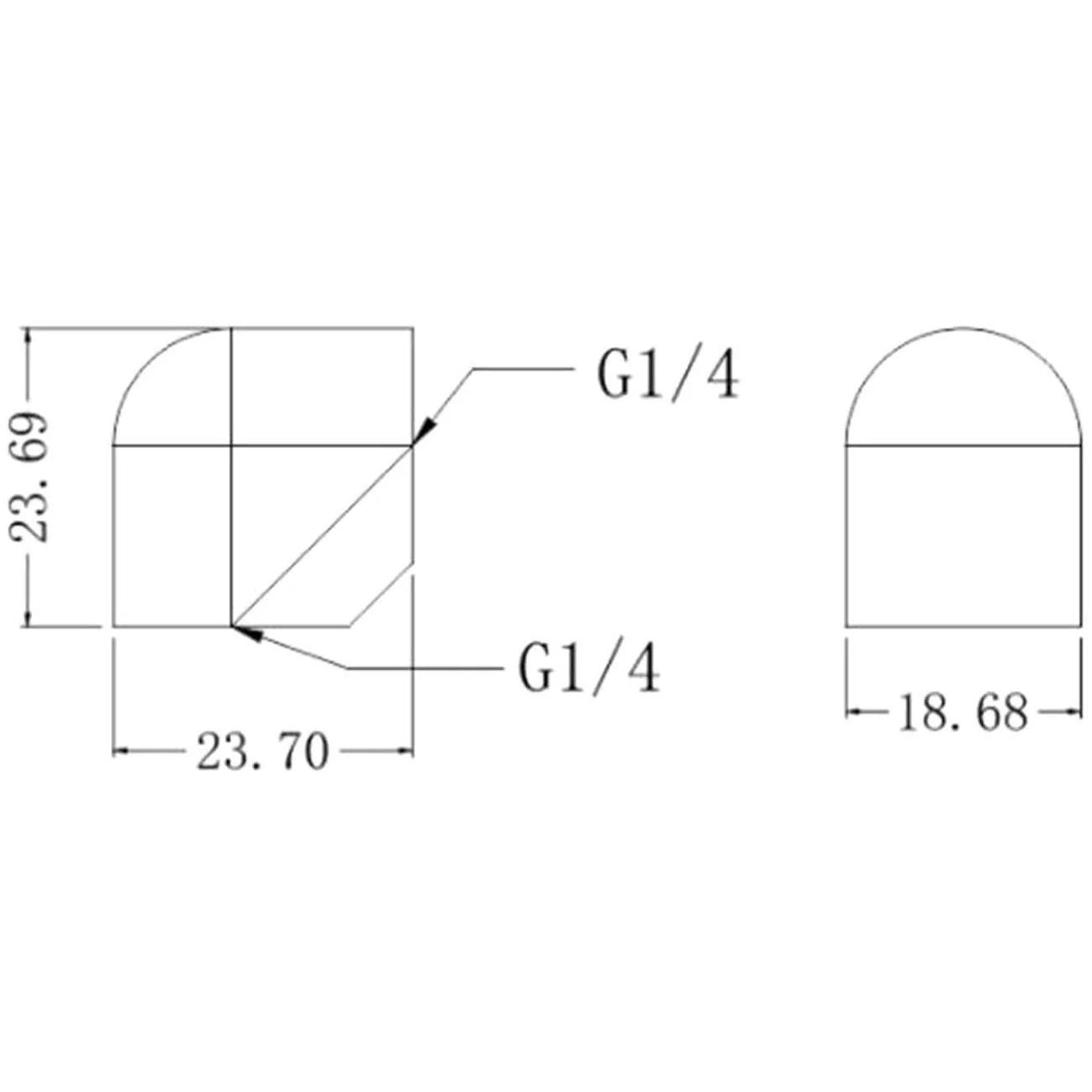

  • Dimensions: 18.68mm x 23.7mm
  • Material: Brass


Compatibility

  • Non-aluminium loop


Warnings

Due to internal finish on the Red, Blue, Gold, Grey, and Black versions, this part may not be compatible with DI water based coolants and is NOT compatible with PrimoChill Opaque and VUE Coolant Series!

Bykski G1/4" 90 Degree Elbow Fitting (Silver)

$
3
WA
  • BentleyApprox 1 business day
  • CockburnIn stock
  • GnangaraIn stock
  • Osborne ParkApprox 1 business day
  • WangaraIn stock
VIC
  • DandenongIn stock
PLE Code
PLE-644288
Manufacturer
Bykski
Boxed Weight
0.2
Model Number
CC-EW90-V2-SNB
Warranty
1 Year PLE Standard Return to Base

Buy now, pay later.

Same day delivery*

A product image of Bykski G1/4" 90 Degree Elbow Fitting (Silver)
A product image of Bykski G1/4" 90 Degree Elbow Fitting (Silver)
This document and other documents provided pursuant are for informational purposes only. The information type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of this document. This document may include screenshots from the manufacturer's website which may be used for multiple variations of this product. The model number supplied at the top of this page (explicitly specified as "Model Number") is the exact model item you will receive.
