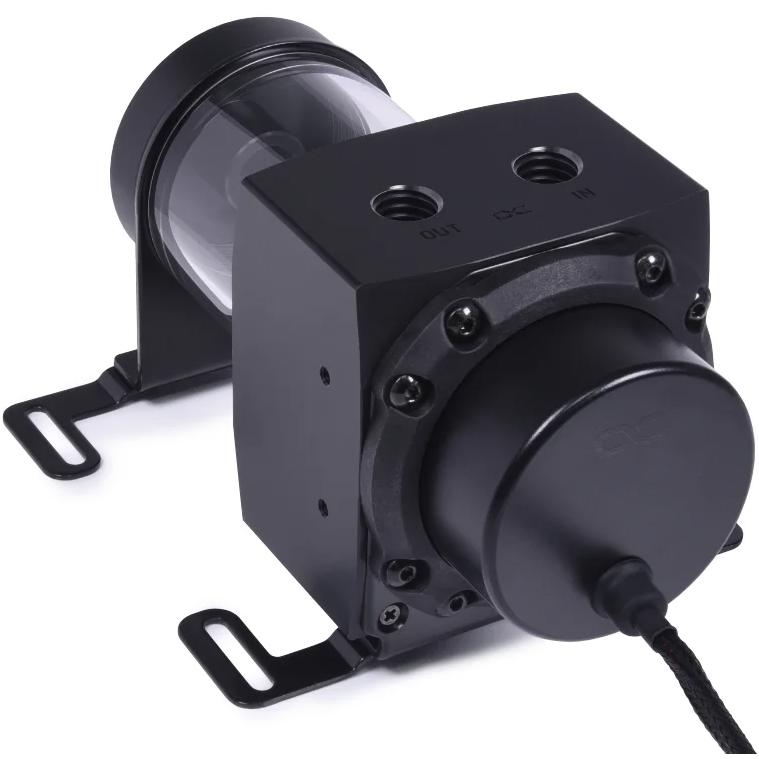

The Alphacool Core reservoir combines performance with design. It has an integrated pump top for powerful D5 pumps and is supplied with a VPP Apex pump. The reservoir tube is made of acrylic, the D5/VPP pump top and the lid are made of acetal. The combination of these two materials gives the reservoir a subtle appearance. 12 digitally addressable ARGB LEDs in the pump top and the light tower water effect inside the acrylic tube provides a wow effect.

What's new?

Compared to the previous models, the acrylic tube of the Core reservoir has an external thread. This ensures greater stability and safety when connecting the lid and pump top to the tube. The integrated digital ARGB lighting is also new. 12 digitally addressable RGB LEDs in the pump top are included with the Core reservoir and no longer need to be purchased separately.

Extensive assembly options

• The box includes feet which, among other things, enable the expansion tank to be mounted on the bottom of the housing.

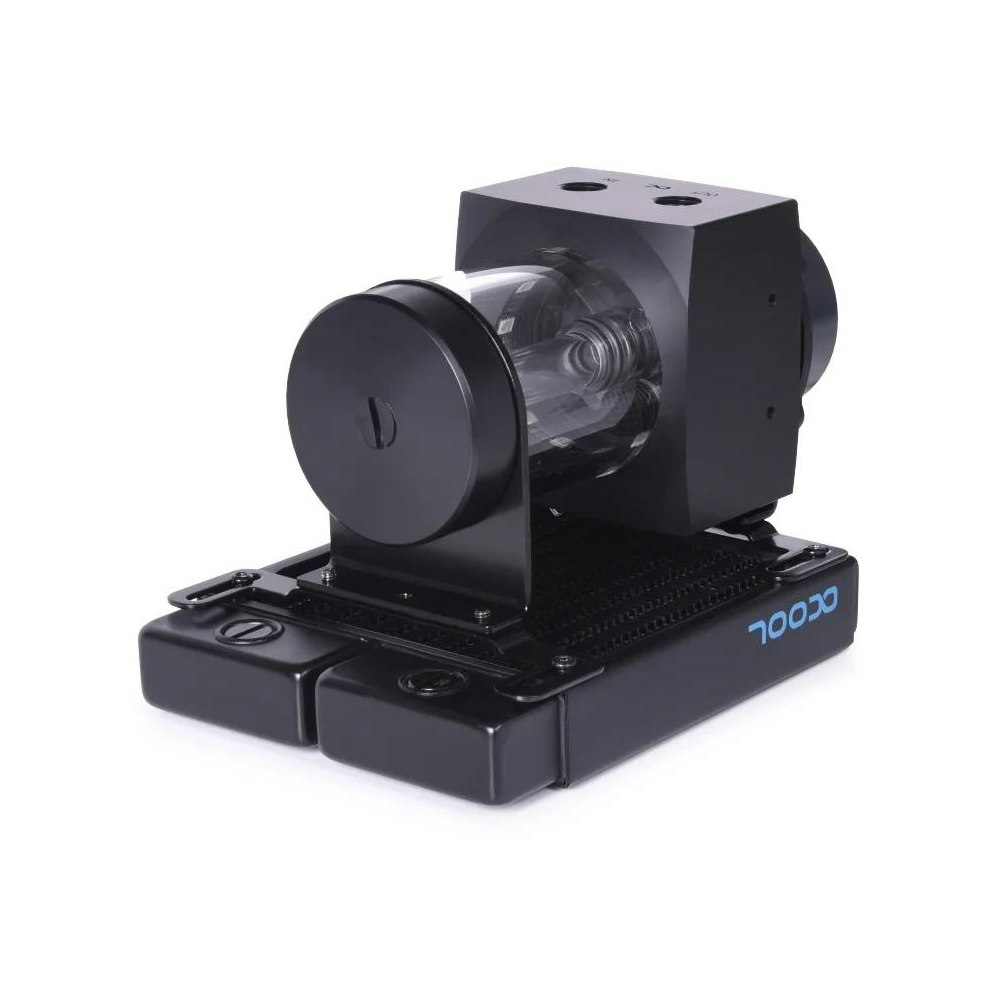

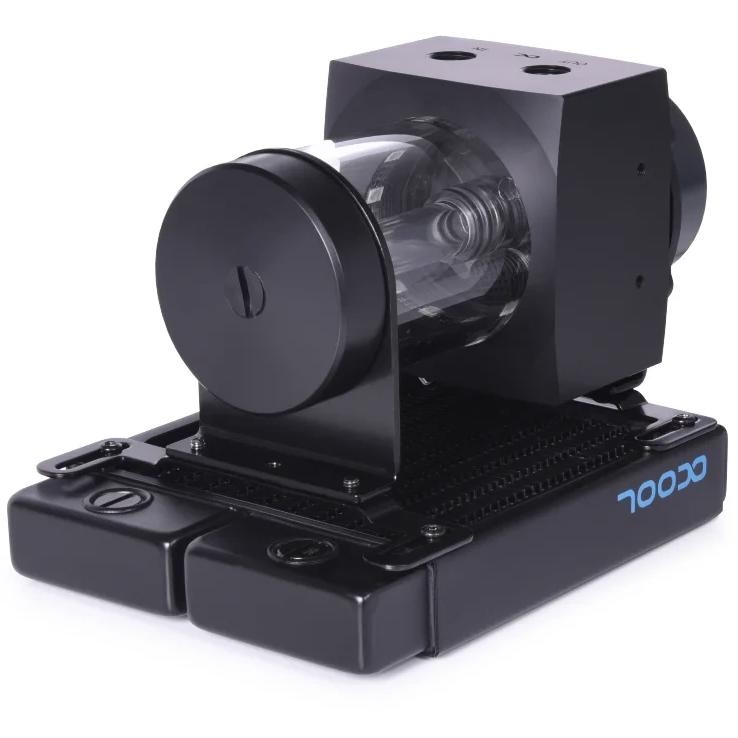

• The box includes 120mm/140mm mounting frames with which the Core expansion tank can be attached to free fan slots, radiators or to the fans on radiators.

Digitally addressable ARGB lighting

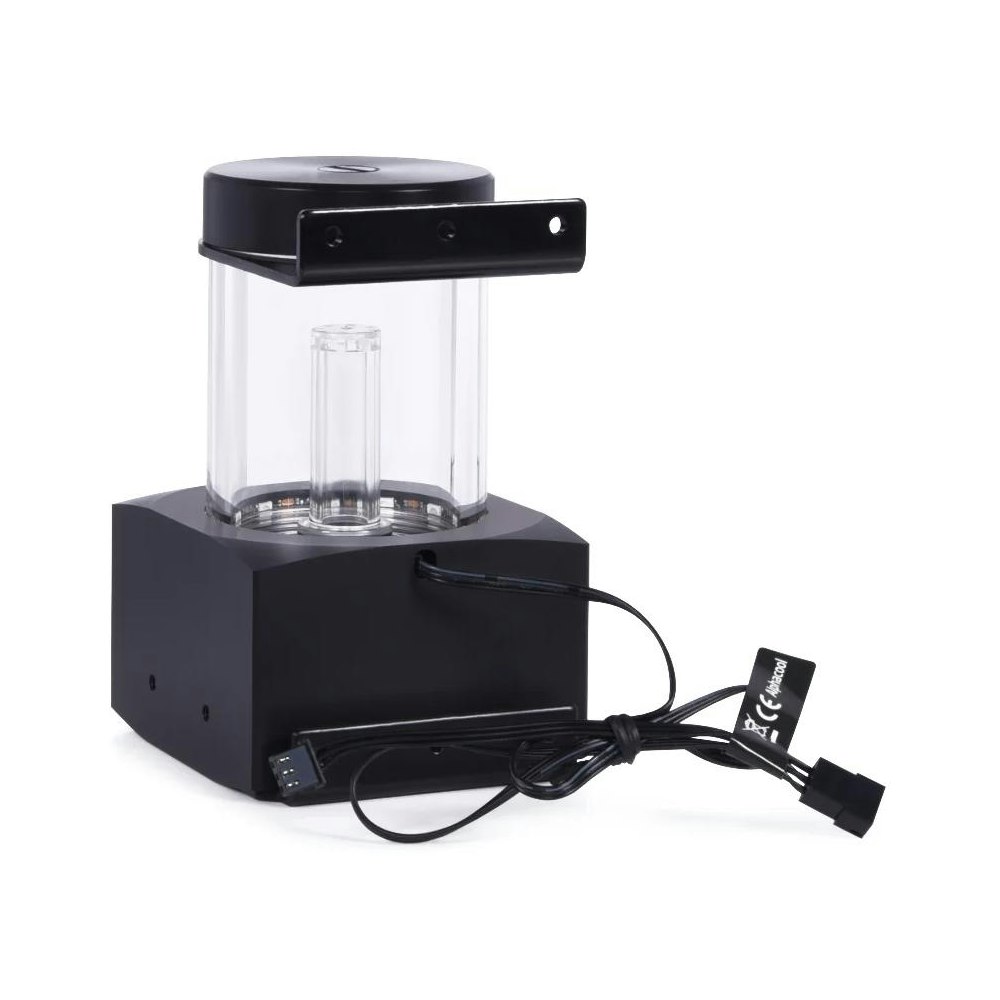

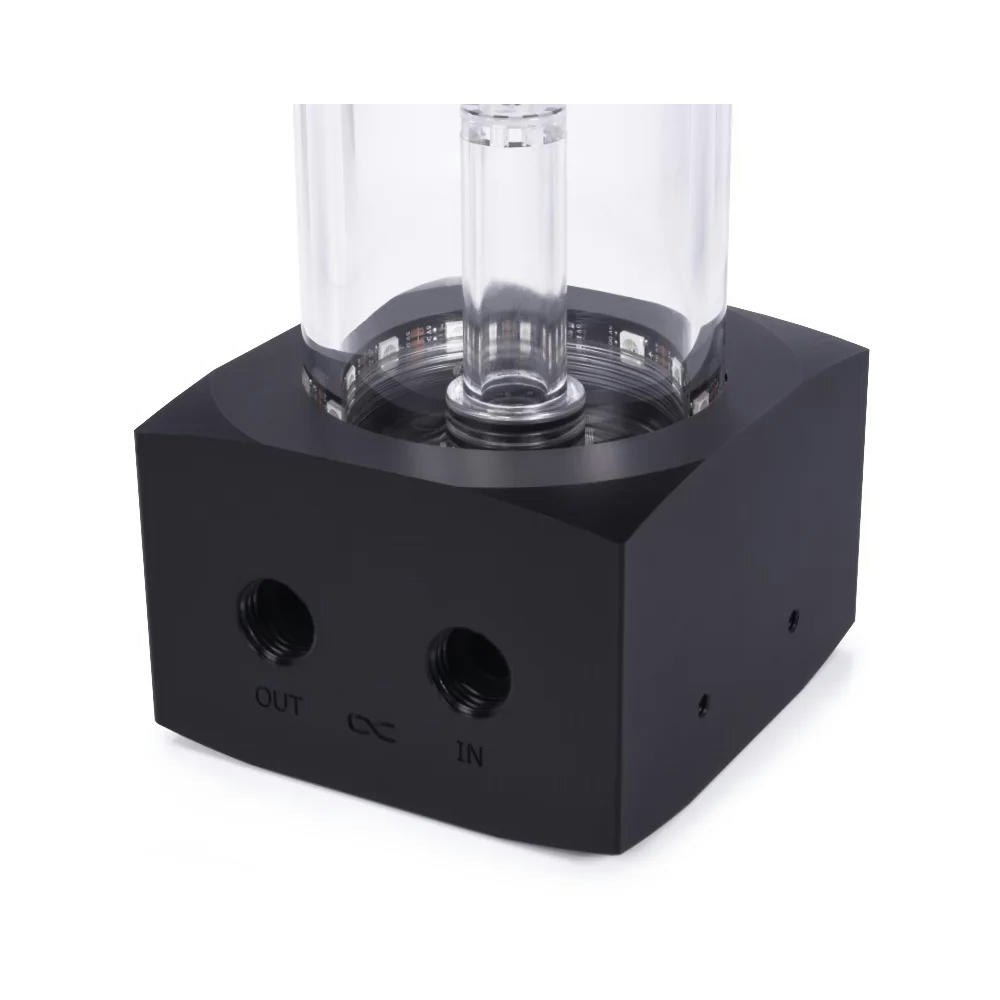

12 digitally addressable RGB LEDs illuminate the acrylic tube of the expansion tank. They are arranged in a ring at the lower end of the tube in the transition to the pump top and ensure brilliant illumination of the entire expansion tank. In combination with the light tower water effect, a very special ambience is achieved. The ARGB LED lighting is connected via a JST 3-pin connector and can be controlled with an ARGB controller or an ARGB capable mainboard.

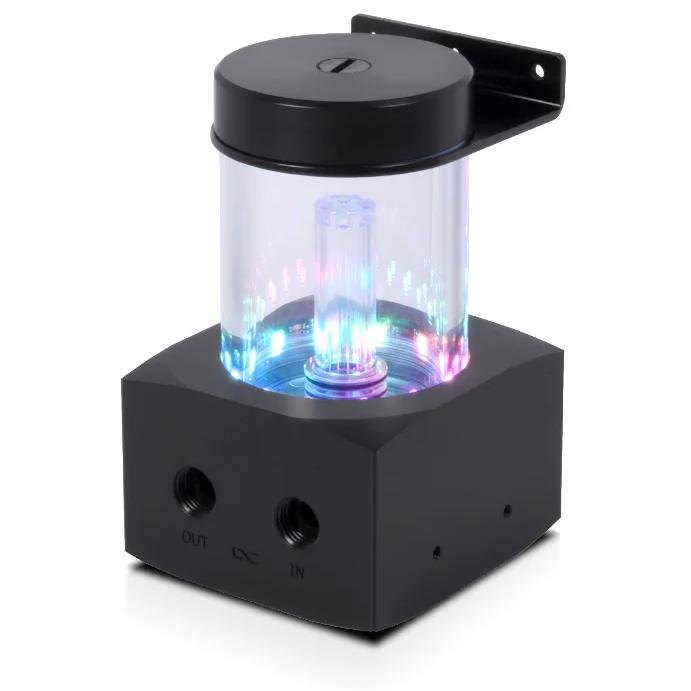

Light tower water effect

A special water effect is created in the core reservoir via the riser tubes. If you do not fill the expansion tank beyond the upper edge of the riser tube, you get a kind of fountain effect. The water is pushed out of the sides of the riser tube and sprayed against the glass tube. The effect is stronger or weaker depending on the flow of the circuit. The effect can be placed at the lower or upper inlet using the riser tubes included in the delivery.

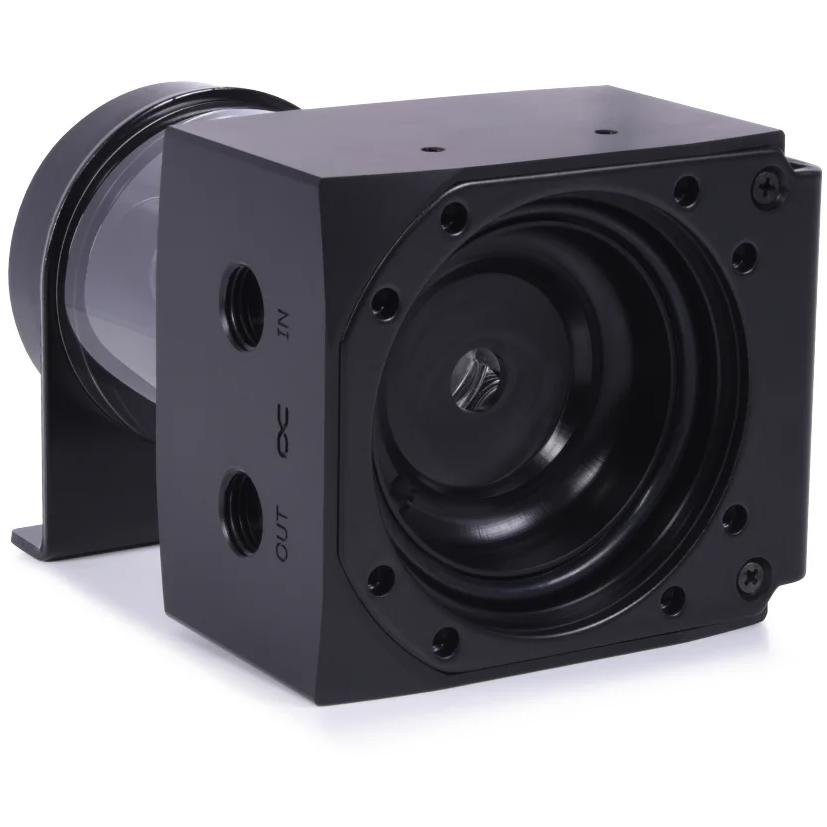

Pump compatibility

The Alphacool Core reservoir has an integrated pump top and is compatible with all original D5 pumps as well as all Alphacool VPP pumps. The pump retaining ring, a pump O-ring and all screws are included in the delivery.

Technical data

• Dimensions: 131 x 76.5 x 76.5mm
• Pump compatibility: D5/VPP
• Volume: 200ml
• Pump top & lid material: Acetal
• Tube material: Acrylic
• Connections: 3x G1/4“
• Maximum working temperature: 60°C
• Pressure tested: 0.8 bars

Warning

Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
