The MO-RA IV Passive Control module is the ideal control unit for your MO-RA IV radiator. Achieving maximum performance even over extended periods of time is no problem. This has been achieved through an amplified and smoothed PWM and tacho signal for stable transmission.

This means that 30 watts of power are available to the 5 volt rail and 120 watts to the 12 volt rail(combined maximum power 120W). This enables two D5 pumps, 18 fans and up to 3 aRGB modules to be powered without any Problems.

MO-RA IV ‘Link’ the controller interface

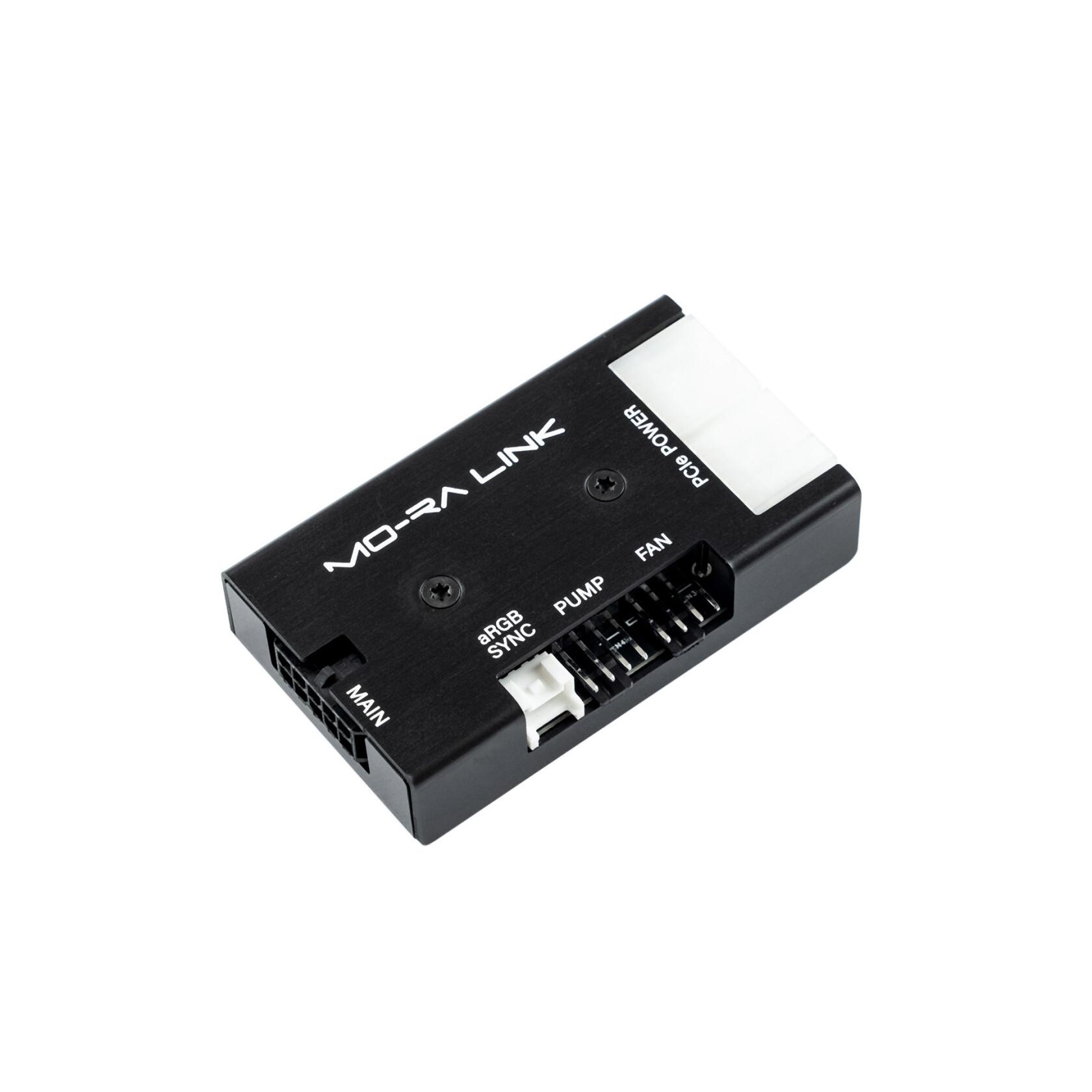

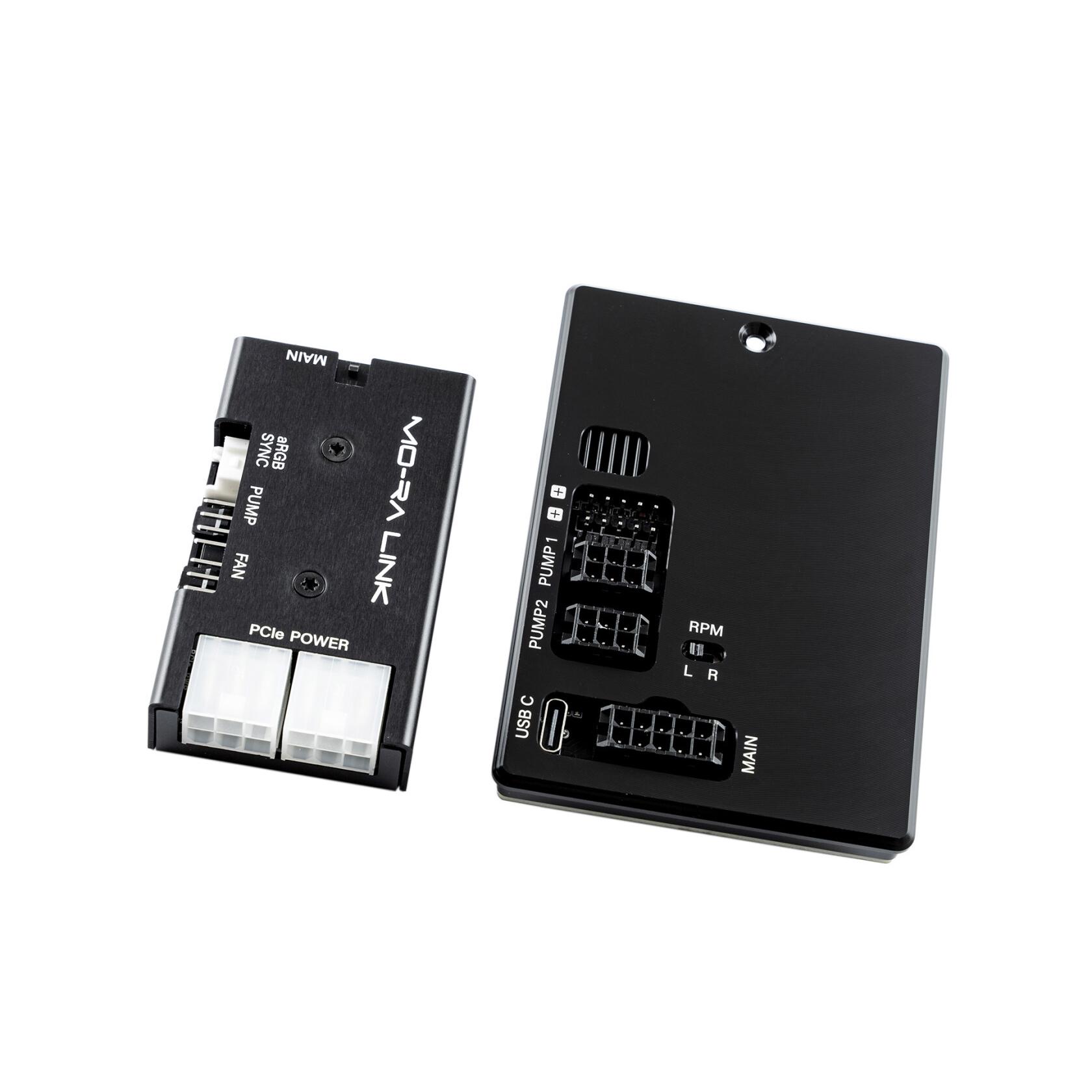

The connection from the PC to the MO-RA IV is made via the compact link module. This is achieved by fitting the link module in the PC housing and connect it to the mainboard. The passive control module is installed on the rear of the MO-RA IV radiator. A 1.5 metre long main connection cable ensures communication between the mainboard or computer and the MO-RA IV unit.

Control and monitoring is achieved using the software provided by the respective mainboard manufacturer. You can monitor a pump signal or a fan side on the radiator. The fan side can be selected via a toggle switch on the passive control module. A suitable lighting system has also been considered. Up to three aRGB modules can be connected and configured and customised via the mainboard Software.

The versatile MO-RA IV Control Set

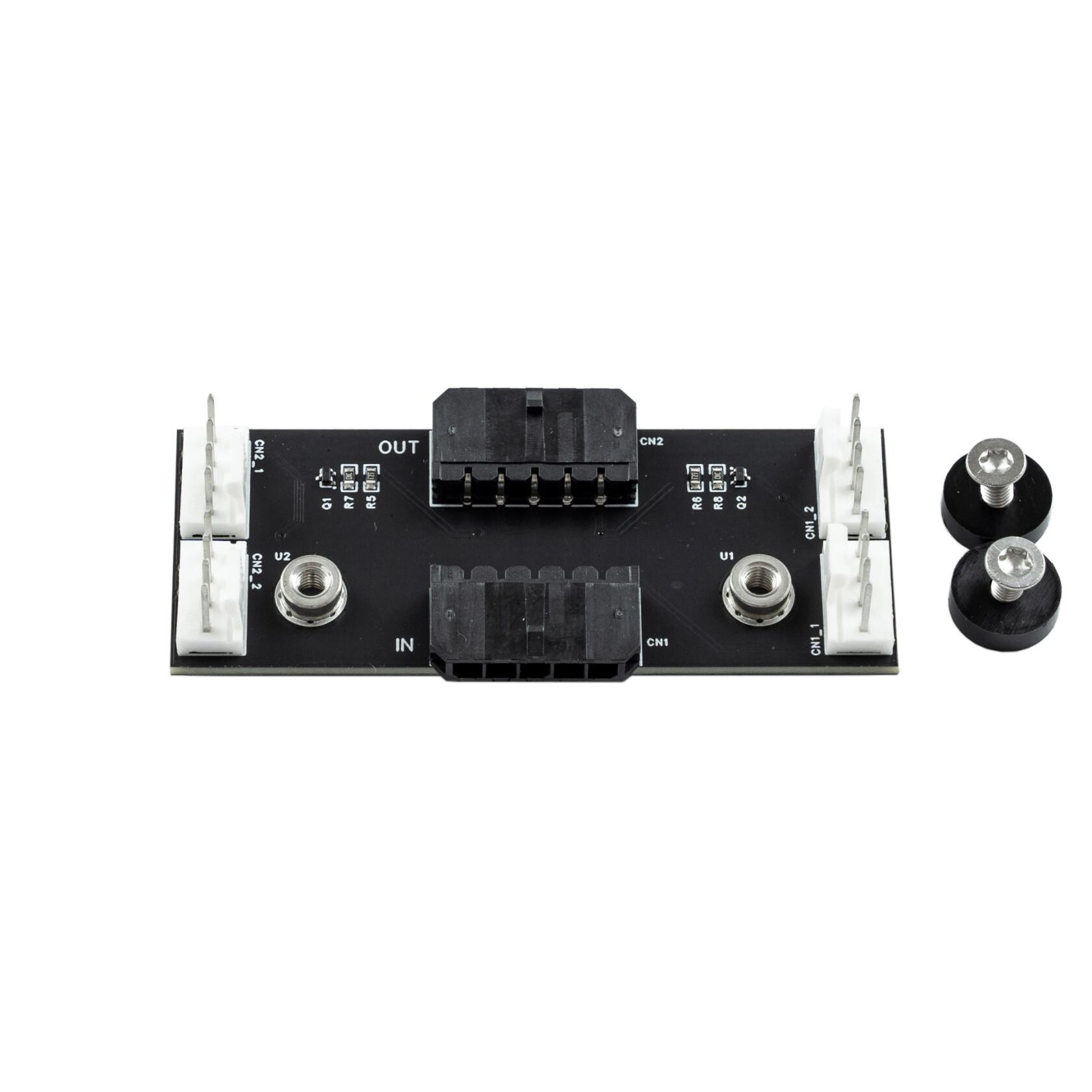

The MO-RA IV control module is provided as a complete set. It contains all the components required for installation. A particular highlight is the concealed fan hub, which is installed at the bottom of the radiator and enables concealed cabling. The same applies to the 1.5 metre long main connection cable, which is also optionally available in a 3 metre version.

Only one cable, the main cable, is required for the entire control and monitoring system. The integrated 2-port USB hub (USB 2.0) enables the connection of e.g. USB-supported pumps or other USB devices.

Technical data

• Dimensions: 63 x 92 x 20mm

Scope of delivery

• 1x MO-RA IV Passive CONTROL
• 1x MO-RA IV LINK

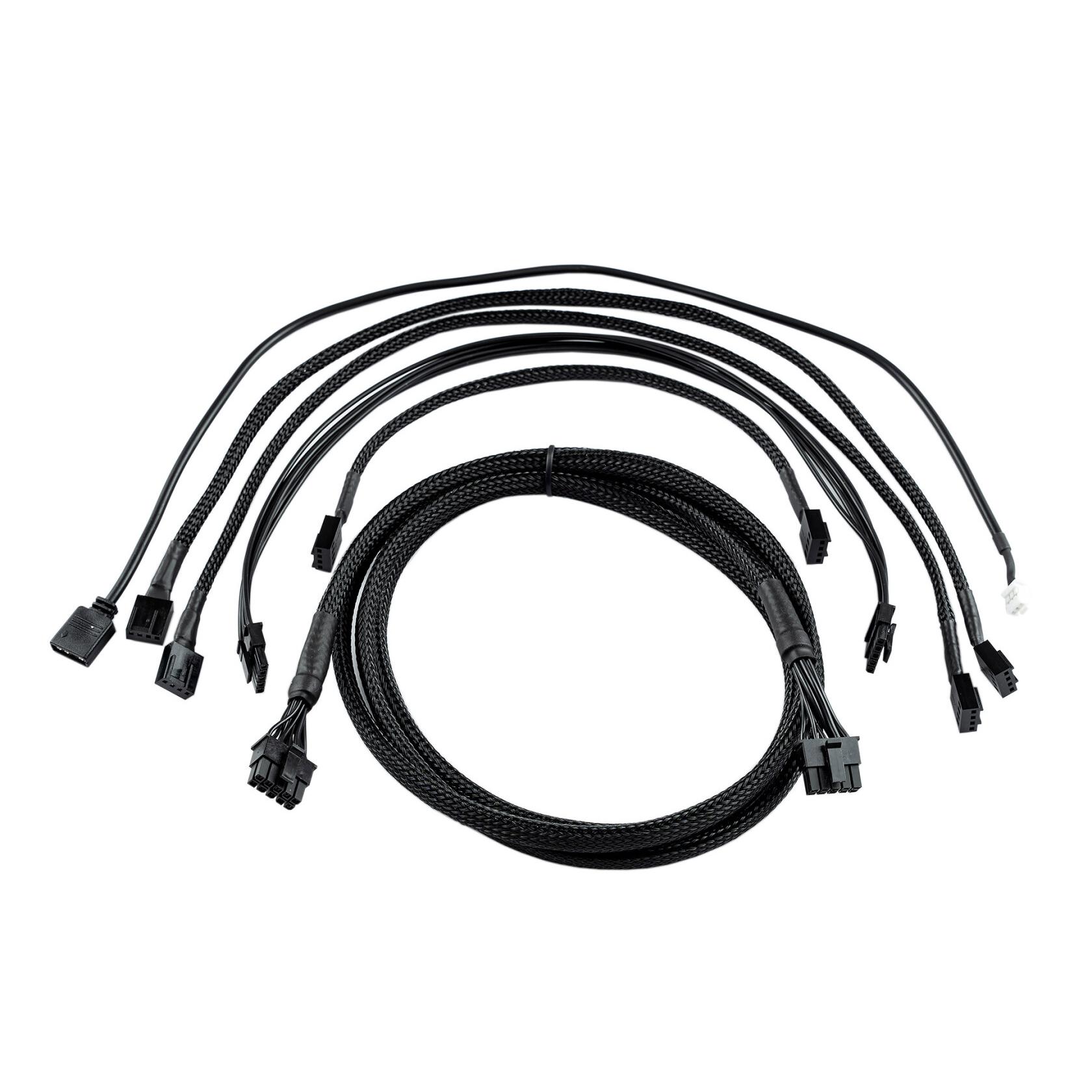

• 1x WATERCOOL MAIN CABLE (1.5m)
• 1x MO-RA IV FAN HUB
• 1x Cable set for installation
