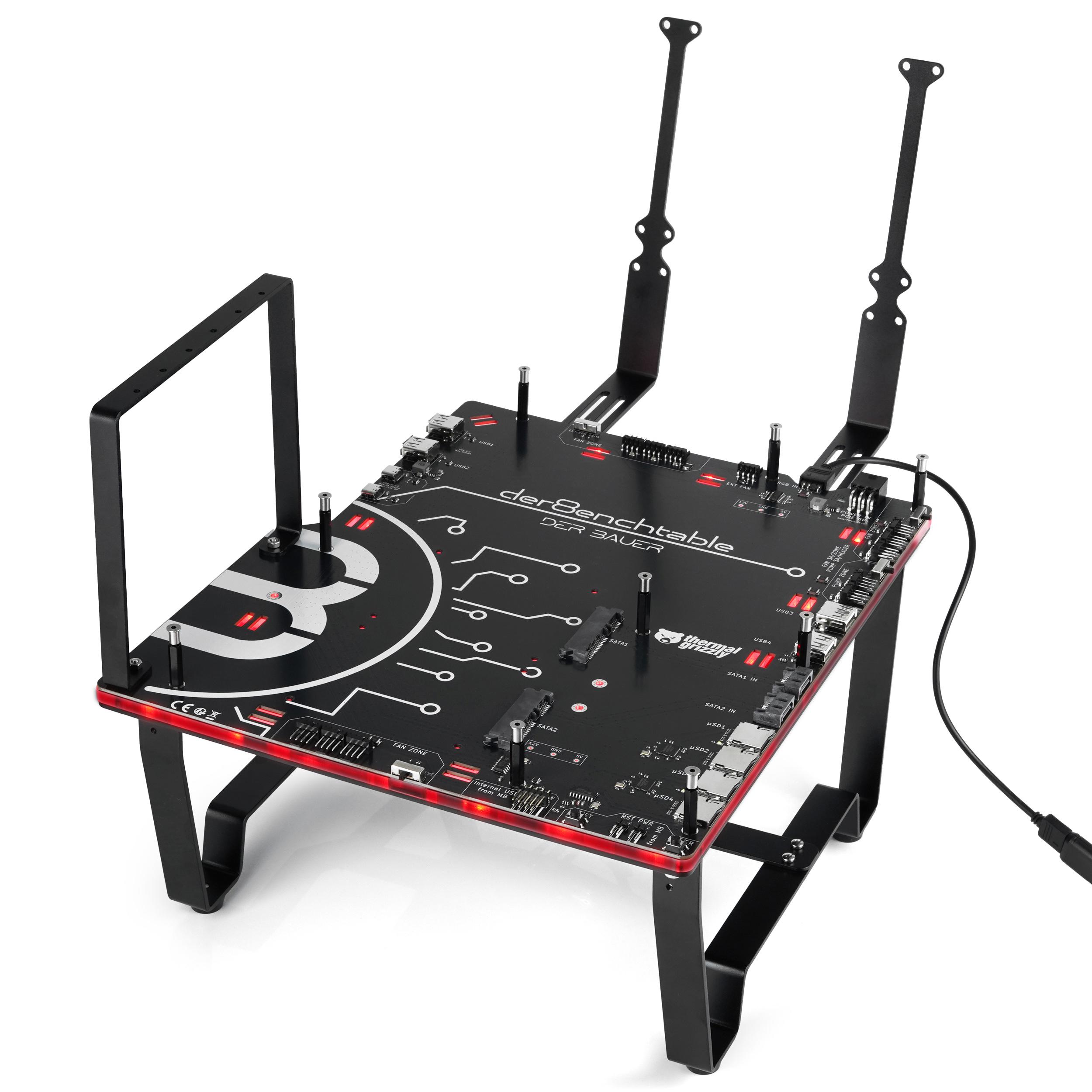

The der8enchtable is a collaboration between Thermal Grizzly, Jon “elmor” Sandström (ElmorLabs), and Roman “der8auer” Hartung. In addition to the features of a standard benchtable—such as integrated mounts for radiators and a power supply—the der8enchtable includes a base unit with an integrated printed circuit board (PCB) for connecting the hardware under test. For consistent test results, fans can be controlled via three fan controllers, each providing three 4-pin fan headers. Each fan zone can be switched independently to 50% or 100% speed, supplies 3A of power to the fans, and is protected by its own fuse. Additionally, the der8enchtable’s fan zones can be managed externally by the motherboard.

• Professional benchtable with active PCB
• Developed in collaboration with ElmorLabs and der8auer
• 3+1 control zones for fans and AIOs
• Supports SSD, USB, or microSD for OS and test software
• Compact, modular, and user-friendly frame design
• Compatible with air and AIO coolers
• ARGB lighting

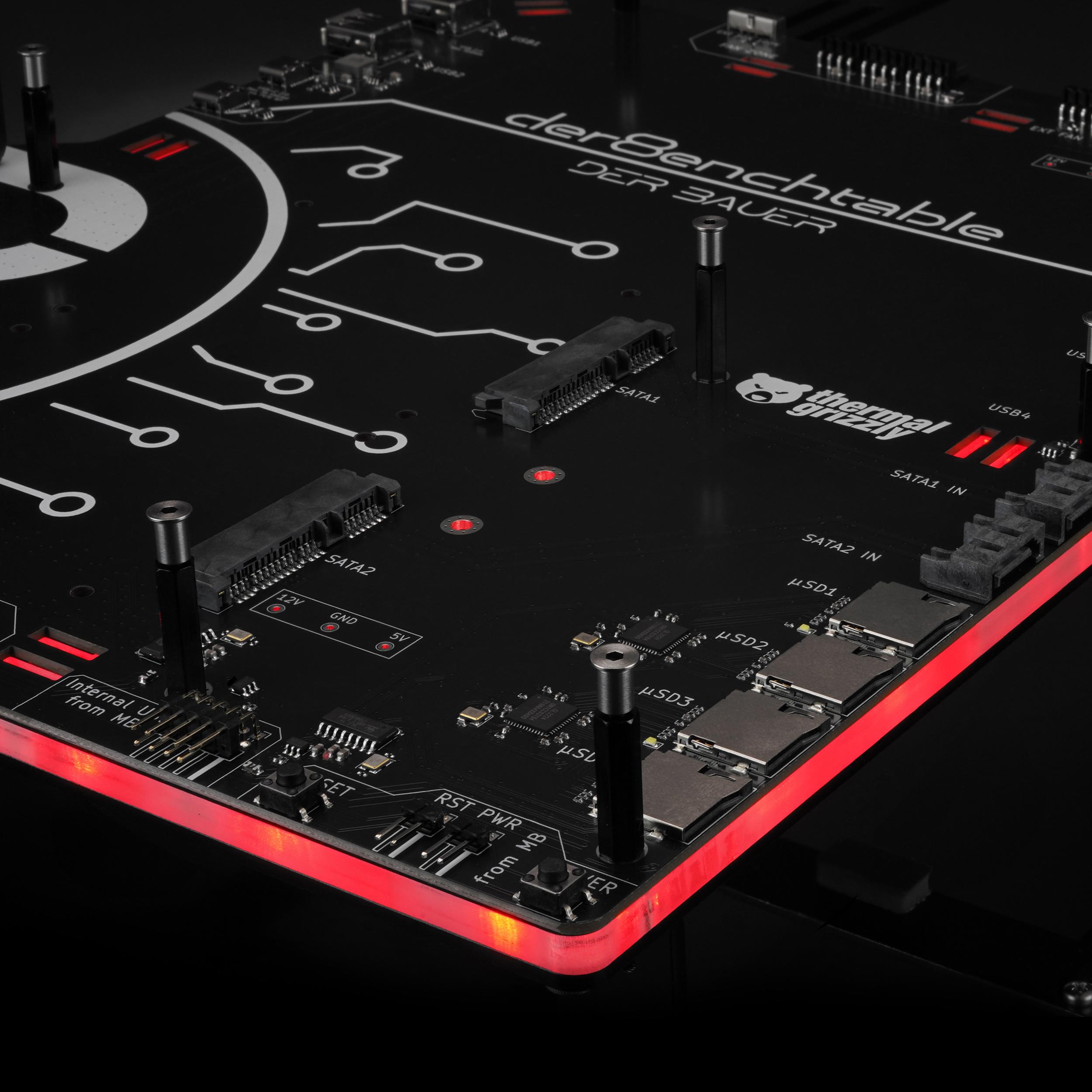

In addition to the fan-control zones, the base unit with integrated PCB offers a secondary control zone with two 4-pin headers for pumps or fans, featuring the same control options as the fan zones. The pump zone supplies 3 A per port—6 A total—and each port has its own fuse. Peripherals can be connected to the der8enchtable via USB (4× Type-A, 2× Type-C). Testing and benchmarking hardware typically requires drivers, a BIOS, or an operating system. To simplify this, storage media can be mounted directly on the benchtable. Up to two 2.5-inch SSDs can be installed on the PCB, and the PCB also provides four microSD card slots—a cost-effective alternative to solid-state drives (SSDs) in terms of price per gigabyte.

The test motherboard is connected to the der8enchtable via the 9-pin USB header. The der8enchtable itself is powered by the PSU via a PCIe 6-pin cable. For control of the addressable RGB lighting (aRGB), the der8enchtable can be connected to the motherboard via a 3-pin header. Alternatively, an external RGB controller may be used (not included). A power button and reset function are also provided on the PCB and wired to the motherboard.

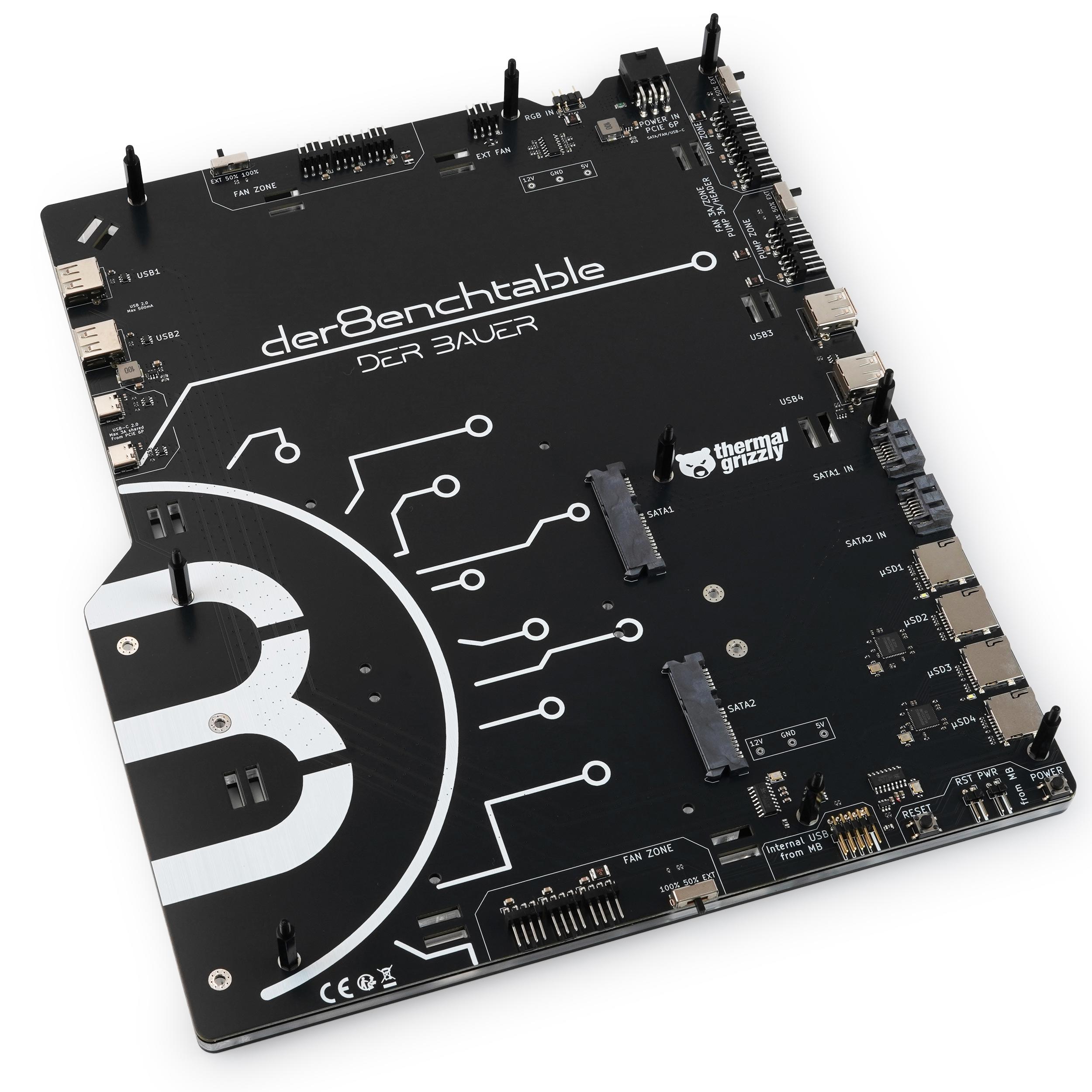

The der8enchtable’s PCB features preinstalled standoffs for ATX motherboards, which can be reconfigured for Micro-ATX and Mini-ITX boards. On the lower section of the black-anodized aluminum frame, a power supply can be mounted, and a custom-cuttable Velcro strap is provided for cable management. If the lower frame section is not needed, the feet can be attached directly to the base unit with integrated PCB, making the der8enchtable significantly more compact.

Port Overview

• 1× 9-pin USB header (data connection to motherboard)
• 1× PCIe 6-pin header (power supply from PSU)
• 1× 4-pin header (for PWM signal to external fan control)

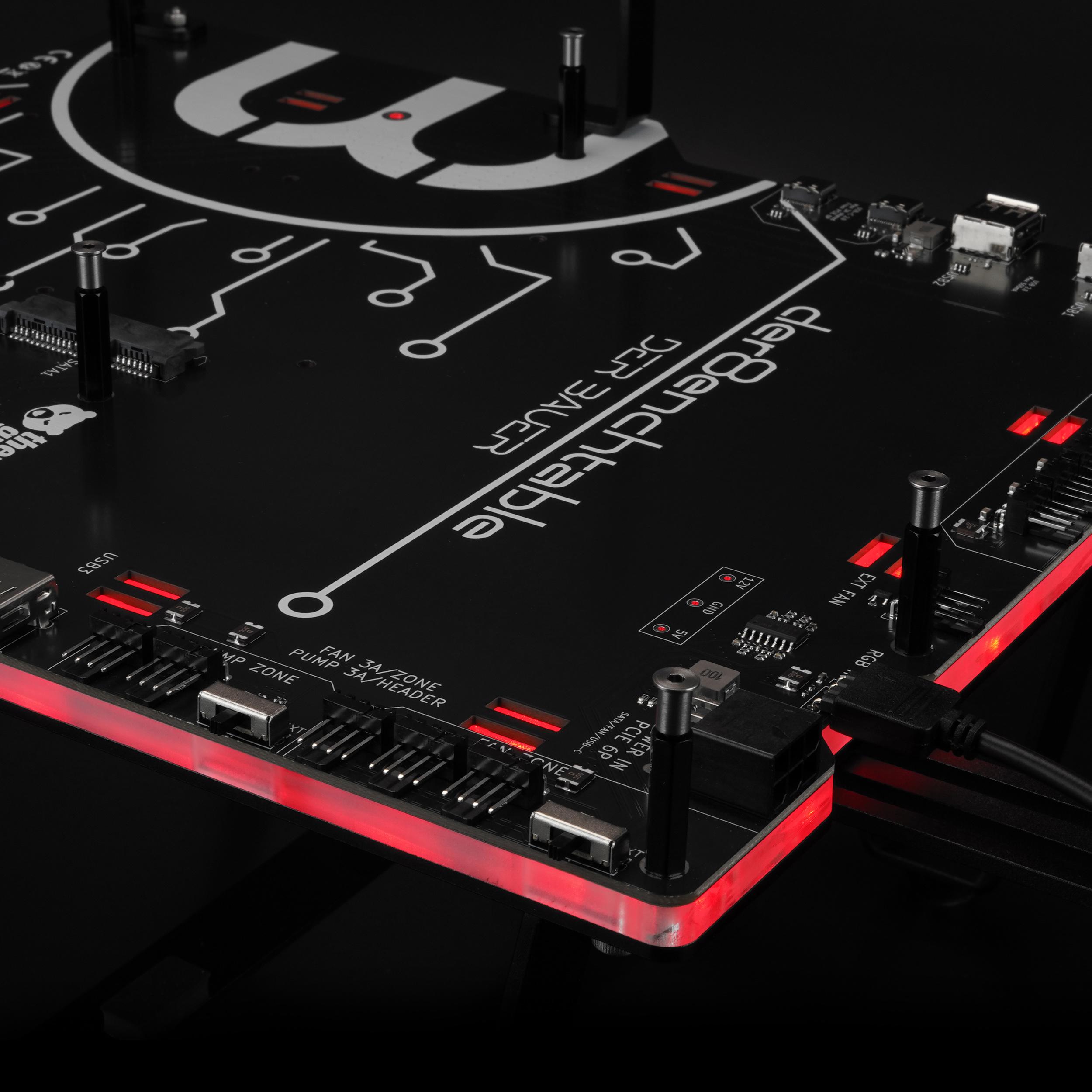

• 3× Fan Zones (each with 3× 4-pin fan headers)
• 1× Pump Zone (2× 4-pin pump headers)
• 4× MicroSD slots for memory cards
• 2× On-board SATA connectors
• 2× SATA out connectors

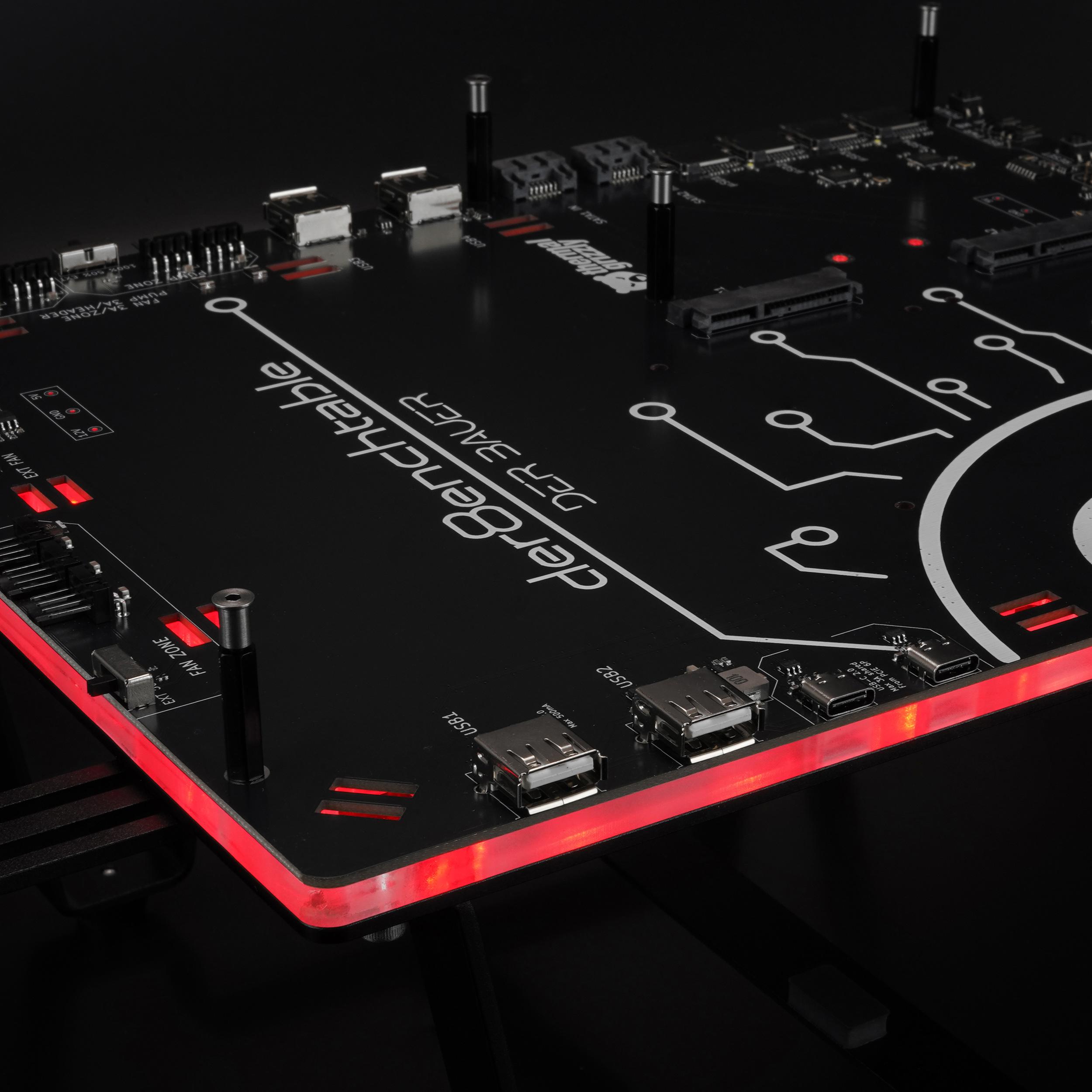

• 4× USB 2.0 Type-A (max. 500mA)
• 2× USB 2.0 Type-C (max. 3A)
• 1× 2-pin header for power button
• 1× 2-pin header for reset button
• 1× 3-pin ARGB header (GND / – / D / 5V)

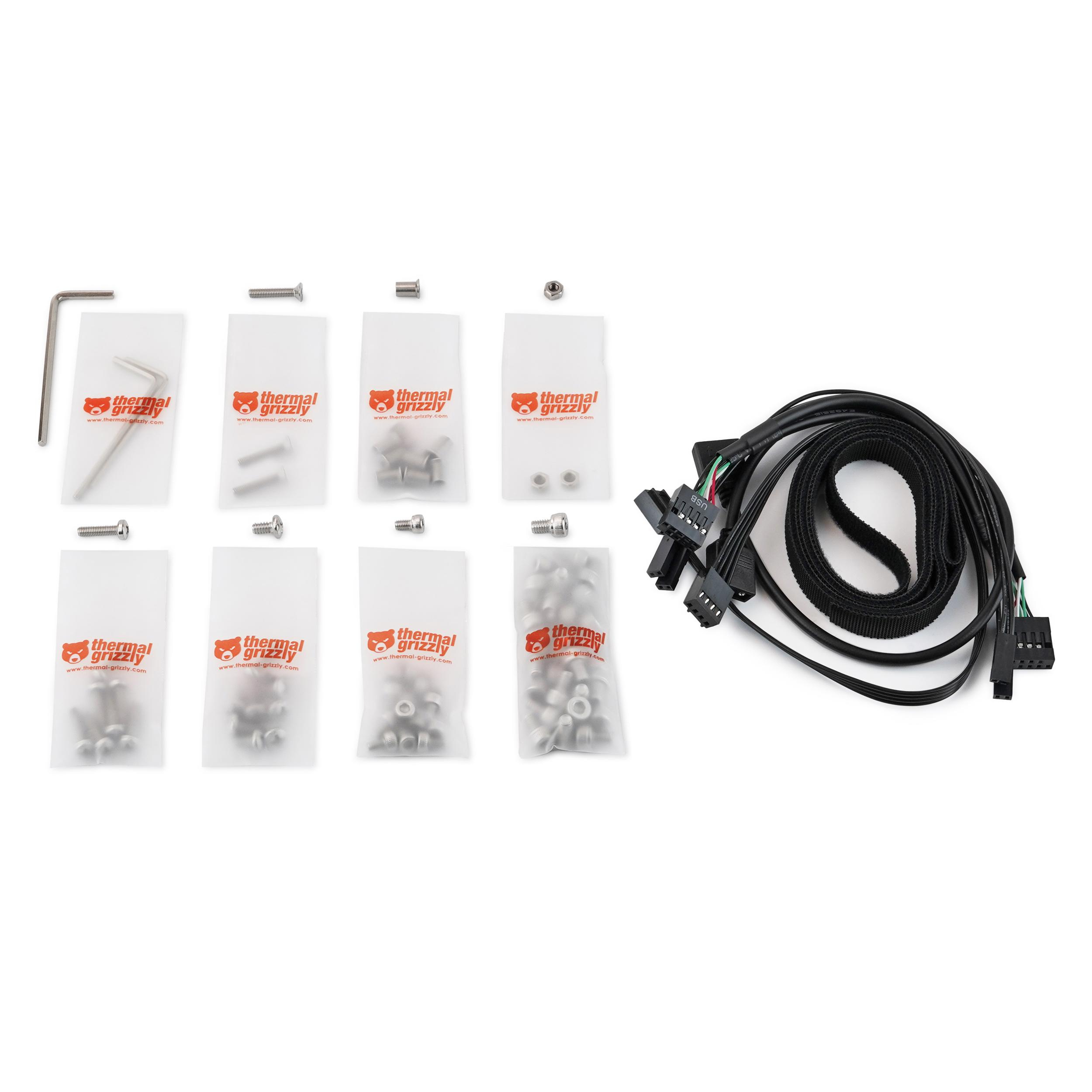

Scope of Delivery

• Manual
• Base Assembly with integrated PCB

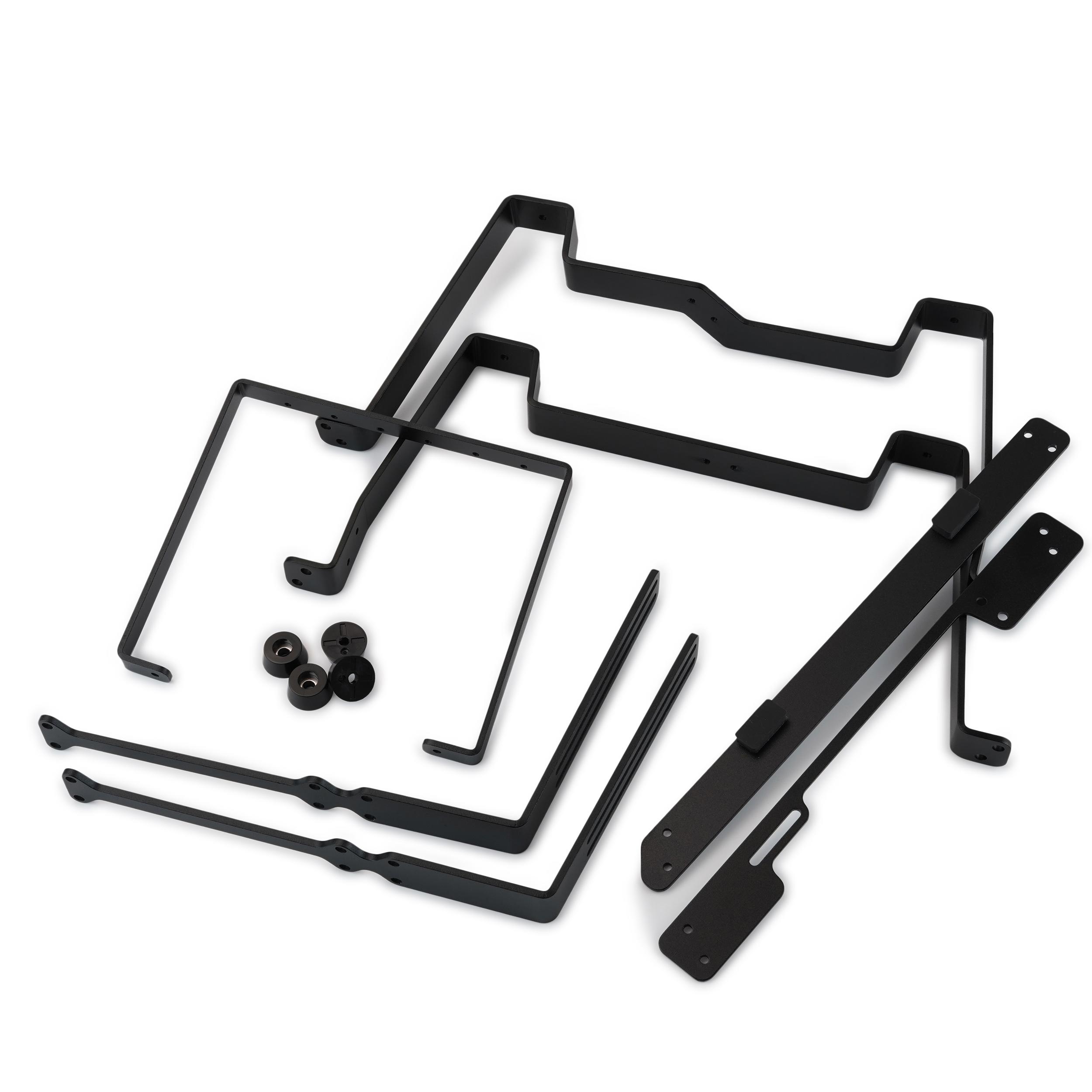

• AIB Securing Bracket
• Radiator Bracket
• Right Stand Bracket
• Left Stand Bracket
• PSU Support Bracket
• PSU Mounting Bracket
• Damper Feet
• DIN7991 M3 x 16mm Screw
• DIN7985H M3 x 12mm Screw - A2
• DIN912 M3 x 5mm Screw - A2
• DIN912 M4 x 6mm Screw
• 6-32 UNC x 1/4in Phillips Head Screw - A4
• M3 HEX Nut -A2
• M3 x 12mm Barrel Nut - A4
• Allen Key 2 mm
• Allen Key 2.5 mm
• Allen Key 3 mm
• Double female 2-pin Dupon cable, 20cm
• Double female 4-pin Fan cable, 30cm
• Double sided Velcro Strap
• Double female 3-pin A-RGB cable, 30cm
• Double 9-pin USB 2.0 cable, 15cm
