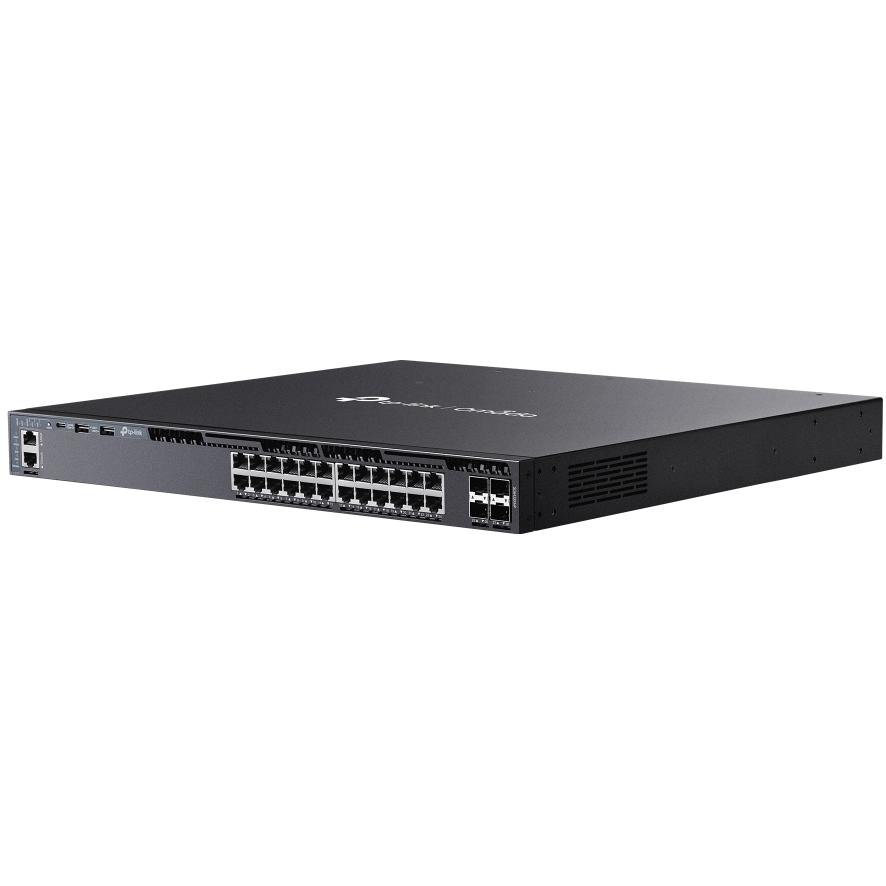

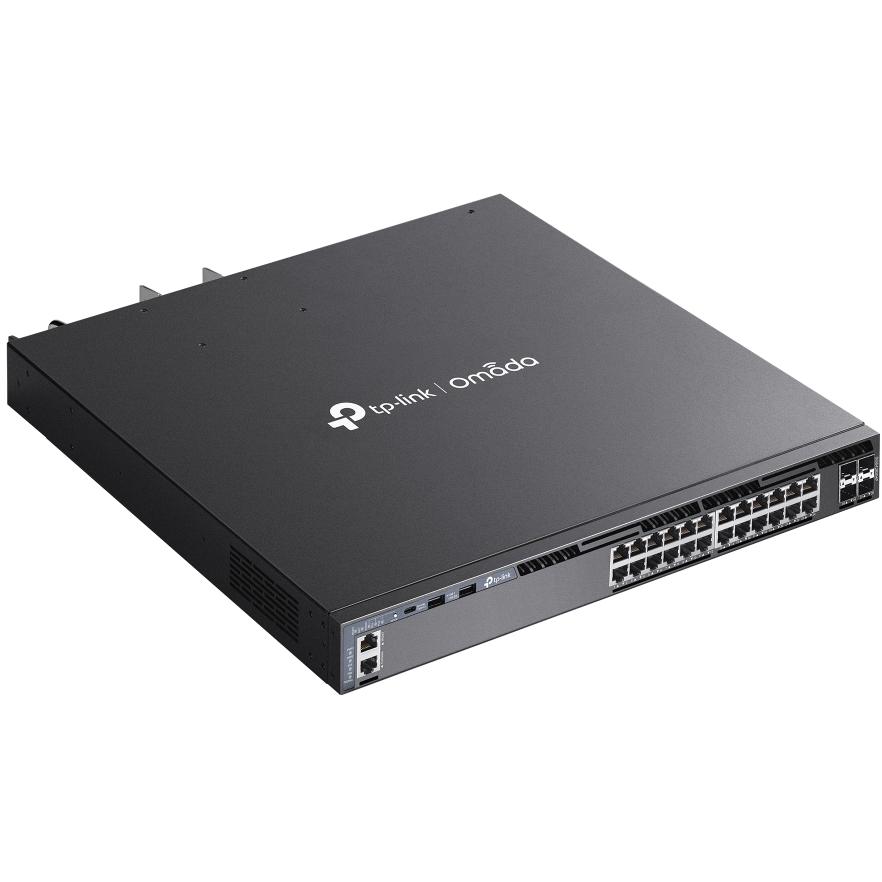

TP-Link Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 4x 10GbE Slots
$
2799
Unleash the power of seamless connectivity with the TP-Link Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch. Featuring four 10GbE slots, this top-tier networking wizard ensures ultra-fast data transmission and robust management flexibility for your demanding network environments. Transform your network infrastructure and experience unparalleled performance and reliability today.
Attributes
Main Specifications
Capacity
Priority queues: 8IPv6 interfaces: 256IPv4 interfaces: 256IPv4 routes (static): 1024IPv6 routes (static): 512Maximum host route table: 6100RIP routes: 8190OSPFv2 routes: 8190OSPFv3 routes: 4097VRRP groups: 64ECMP entries: 256ECMP next hops per route: 32StCompliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3atDevice Type
Switch - 24 ports - L3 - managed - stackableDimensions (WxDxH)
44 cm x 42 cm x 4.4 cmEnclosure Type
Front to back airflow rack-mountableFeatures
Flow control, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support,Jumbo Frame Support
9KBMAC Address Table Size
32K entriesPerformance
Switching capacity: 128 GbpsForwarding bandwidth: 64 GbpsSwitching capacity with stacking: 512 GbpsStacking bandwidth (full-duplex): 20 GbpsPacket forwarding rate: 95.2 MppsPacket buffer size: 3 MbitPoE Budget
720 WPorts
24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+Power
AC 100-240 V (50/60 Hz)Power Over Ethernet (PoE)
PoE+Power Redundancy
YesProduct Description
TP-Link Omada SG6428XHP V1 - switch - 24 ports - managed - rack-mountableRemote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, IPv4, IPv6, RSTP, RADIUS, MIB, TCP/IP, UDP, BOOTPRouting Protocol
OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, static IP routing, PIM-DM, IGMPv3, OSPFv3, ECMP, MLDv2, MLD, VRRPv2, VRRPv3, MSTP, RSTP, STP, L2PT, PPPoESubtype
Gigabit EthernetSystem Requirements
UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11TP-Link Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 4x 10GbE Slots
$
2799
More from this brand
This product is ordered from our suppliers once you place your order and PLE have received full payment. Unfortunately supplier availability of this item is unconfirmed. Please contact your closest store prior to ordering if you require a firm ETA.
PLE Code
PLE-673201Manufacturer
TP-LinkBoxed Weight
5Model Number
SG6428XHPWarranty
3 Year PLE Standard Return to Base
This document and other documents provided pursuant are for informational purposes only. The information
type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee
the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of
this document. This document may include screenshots from the manufacturer's website which may be used for
multiple variations of this product. The model number supplied at the top of this page (explicitly specified
as "Model Number") is the exact model item you will receive.
