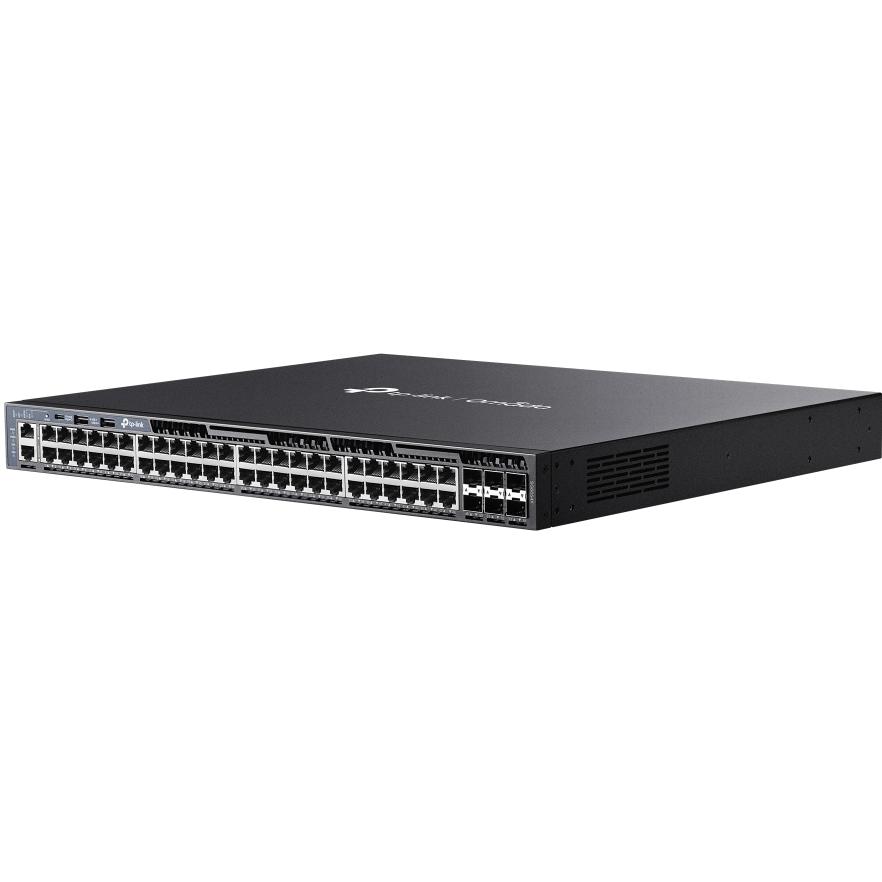

TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch w/ 6x 10GbE Slots

2499

Experience superior network performance with the TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch. Perfect for demanding environments, this powerhouse offers seamless connectivity through its 48 ports and 6x 10GbE slots, catering to all your high-speed data transfer needs. With advanced management features, it's an ideal choice for efficient and robust networking solutions.

Attributes

Main Specifications

Capacity

Priority queues: 8IPv6 interfaces: 256IPv4 interfaces: 256IPv4 routes (static): 1024IPv6 routes (static): 512Maximum host route table: 6100RIP routes: 8190OSPFv2 routes: 8190OSPFv3 routes: 4097VRRP groups: 64ECMP entries: 256ECMP next hops per route: 32St

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)

Device Type

Switch - 48 ports - L3 - managed - stackable

Dimensions (WxDxH)

44 cm x 38 cm x 4.4 cm

Enclosure Type

Front to back airflow rack-mountable

Features

Flow control, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support,

Jumbo Frame Support

9KB

MAC Address Table Size

32K entries

Performance

Switching capacity: 216 GbpsForwarding bandwidth: 108 GbpsSwitching capacity with stacking: 864 GbpsStacking bandwidth (full-duplex): 20 GbpsPacket forwarding rate: 160.7 MppsPacket buffer size: 3 Mbit

Ports

48 x 10/100/1000 + 6 x 10Gb Ethernet SFP+

Power

AC 100-240 V (50/60 Hz)

Product Description

TP-Link Omada SG6654X V1 - switch - 48 ports - managed - rack-mountable

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, IPv4, IPv6, RSTP, RADIUS, MIB, TCP/IP, UDP, BOOTP

Routing Protocol

OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, static IP routing, PIM-DM, IGMPv3, OSPFv3, ECMP, MLDv2, MLD, VRRPv2, VRRPv3, MSTP, RSTP, STP, L2PT, PPPoE

Subtype

Gigabit Ethernet

System Requirements

UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11

TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch w/ 6x 10GbE Slots

Name: TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch w/ 6x 10GbE Slots
Brand: TP-Link
SKU: PLE-673200
Price: 2499.00 AUD
Availability: OutOfStock

2499

This product is ordered from our suppliers once you place your order and PLE have received full payment. Unfortunately supplier availability of this item is unconfirmed. Please contact your closest store prior to ordering if you require a firm ETA.

PLE Code

PLE-673200

Manufacturer

TP-Link

Boxed Weight

Model Number

SG6654X

Warranty

3 Year PLE Standard Return to Base
