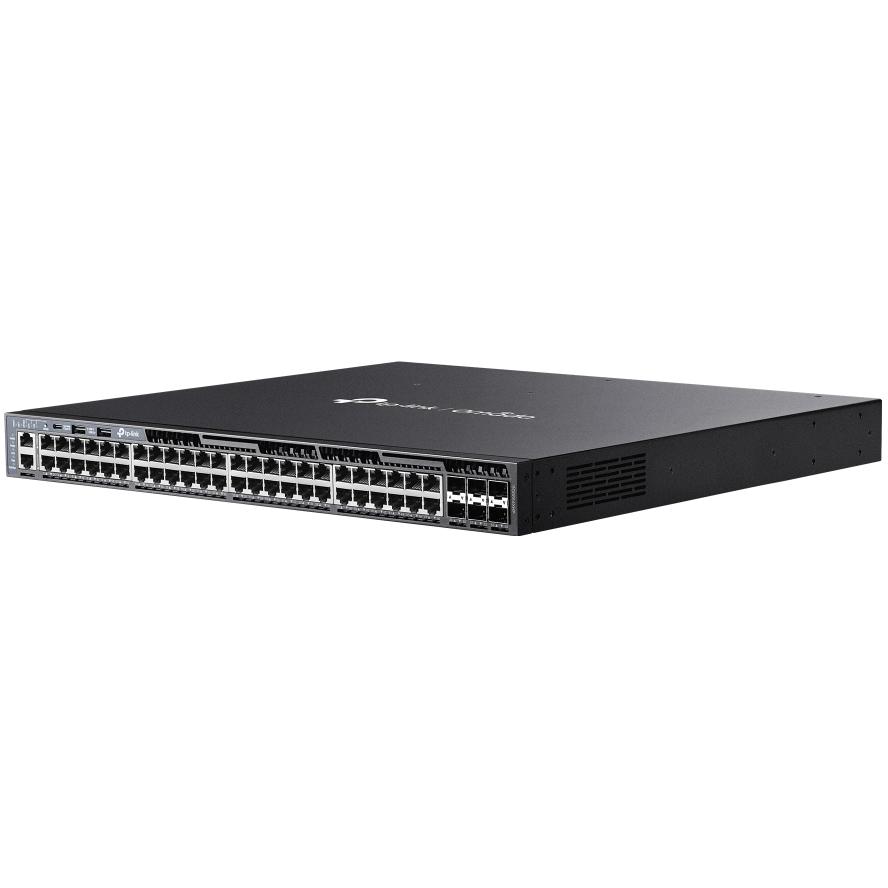

  • A large main feature product image of TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots
  • A large main feature product image of TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots
  • A large main feature product image of TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots
A small tile product image of TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots
A small tile product image of TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots
A small tile product image of TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots


Level up your network infrastructure with the TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch. Perfect for power users and businesses, this switch offers 48 ports and 6x 10GbE slots for high-speed connectivity. Whether you're stacking for scalability or managing intricate enterprise networks, experience the seamless performance and robust control you need to keep everything running smoothly.


Attributes
Main Specifications
Capacity
Priority queues: 8IPv6 interfaces: 256IPv4 interfaces: 256IPv4 routes (static): 1024IPv6 routes (static): 512Maximum host route table: 6100RIP routes: 8190OSPFv2 routes: 8190OSPFv3 routes: 4097VRRP groups: 64ECMP entries: 256ECMP next hops per route: 32St
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at
Device Type
Switch - 48 ports - L3 - managed - stackable
Dimensions (WxDxH)
44 cm x 42 cm x 4.4 cm
Enclosure Type
Front to back airflow rack-mountable
Features
Flow control, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support,
Jumbo Frame Support
9KB
MAC Address Table Size
32K entries
Performance
Switching capacity: 216 GbpsForwarding bandwidth: 108 GbpsSwitching capacity with stacking: 864 GbpsStacking bandwidth (full-duplex): 20 GbpsPacket forwarding rate: 160.7 MppsPacket buffer size: 3 Mbit
PoE Budget
1440 W
Ports
48 x 10/100/1000 (PoE+) + 6 x 10Gb Ethernet SFP+
Power
AC 100-240 V (50/60 Hz)
Power Over Ethernet (PoE)
PoE+
Power Redundancy
Yes
Product Description
TP-Link Omada SG6654XHP V1 - switch - 48 ports - managed - rack-mountable
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, IPv4, IPv6, RSTP, RADIUS, MIB, TCP/IP, UDP, BOOTP
Routing Protocol
OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, static IP routing, PIM-DM, IGMPv3, OSPFv3, ECMP, MLDv2, MLD, VRRPv2, VRRPv3, MSTP, RSTP, STP, L2PT, PPPoE
Subtype
Gigabit Ethernet
System Requirements
UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11

TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots

$
3,999
WA
  • BentleyOut of stock
  • CockburnOut of stock
  • Osborne ParkOut of stock
  • WangaraOut of stock
VIC
  • DandenongOut of stock
PLE Code
PLE-673199
Manufacturer
TP-Link
Boxed Weight
5
Model Number
SG6654XHP
Warranty
3 Year PLE Standard Return to Base

Buy now, pay later.

Same day delivery*

A large marketing image providing additional information about the product TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots - Additional alt info not providedA large marketing image providing additional information about the product TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots - Additional alt info not provided
A product image of TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots
A product image of TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots
A product image of TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch w/ 6x 10GbE Slots
This document and other documents provided pursuant are for informational purposes only. The information type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of this document. This document may include screenshots from the manufacturer's website which may be used for multiple variations of this product. The model number supplied at the top of this page (explicitly specified as "Model Number") is the exact model item you will receive.
