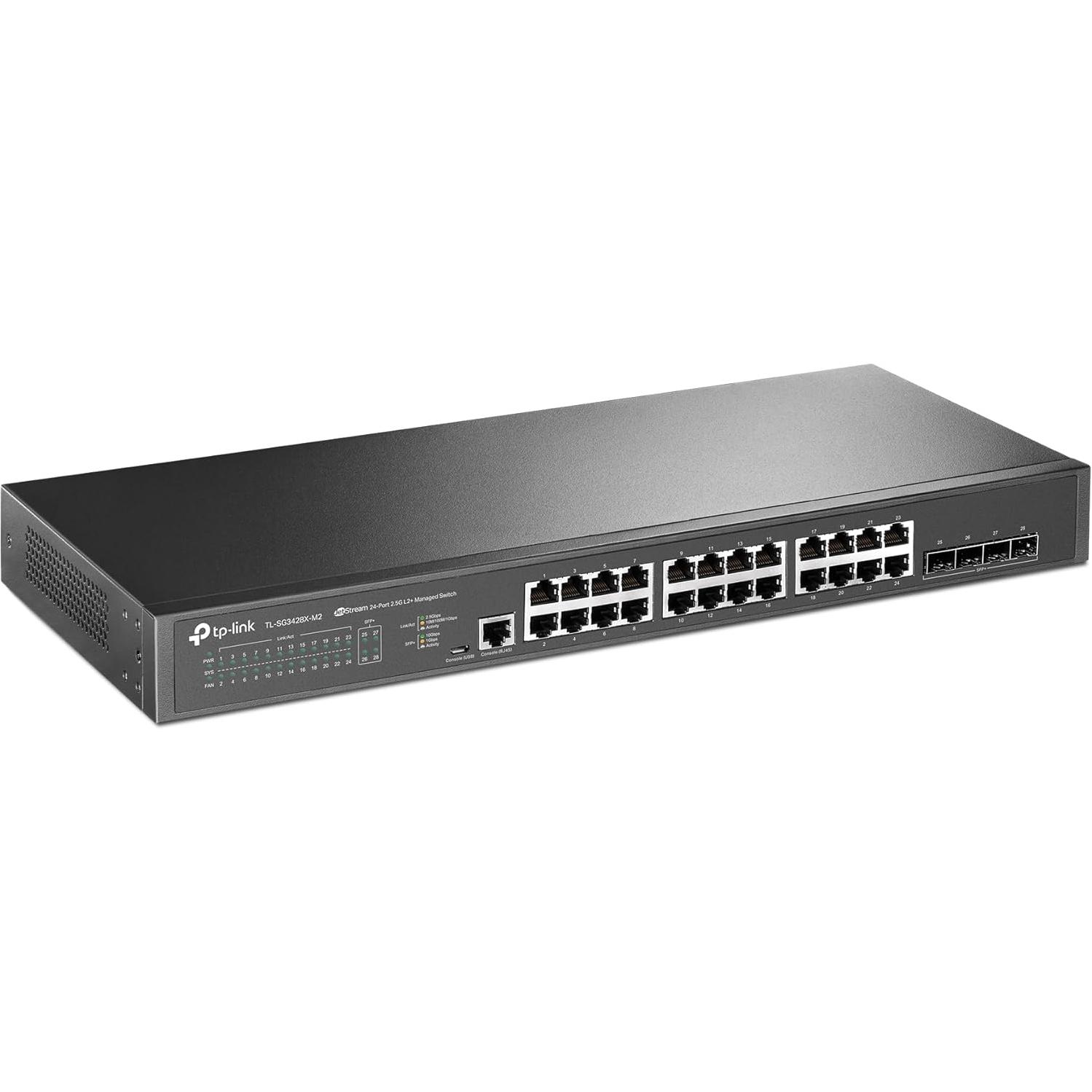

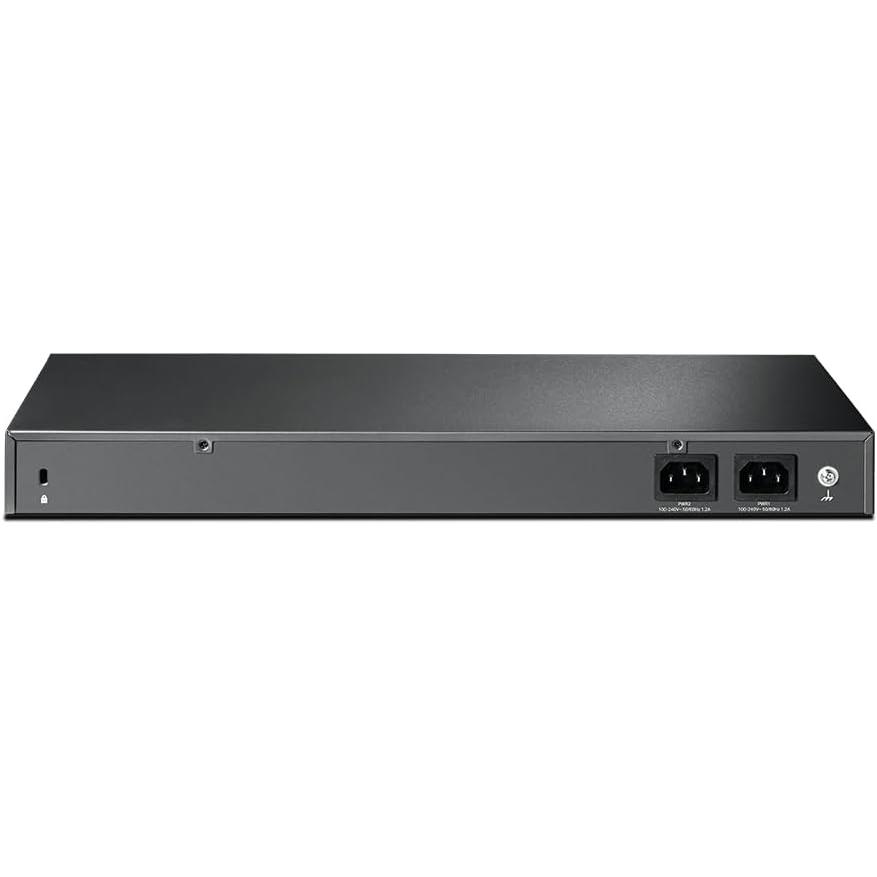

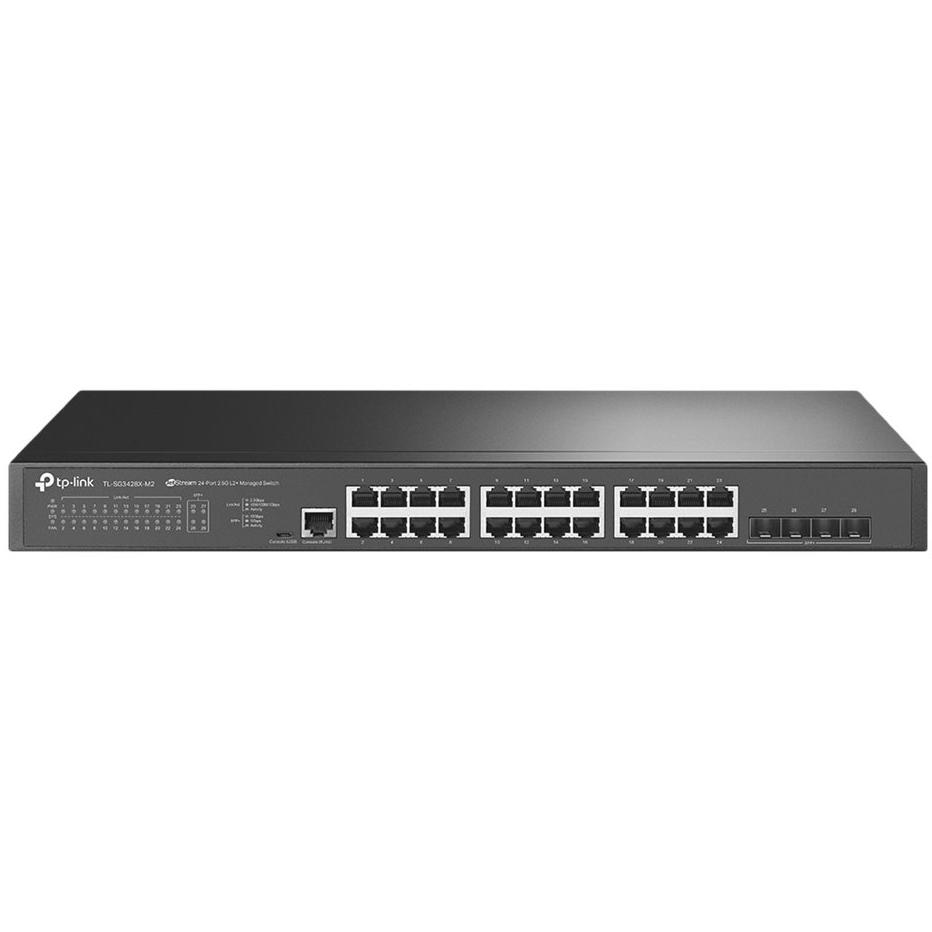

TP-Link JetStream TL-SG3428X-M2 - 24-Port 2.5GbE BASE-T L2+ Managed Switch with 4 10GbE SFP+ Slots

749

The TP-Link JetStream TL-SG3428X-M2 V1.6 is a managed switch designed to meet the demands of today’s high-performance networks. With a switching capacity of 200 Gbps and a packet forwarding rate of 148.80 Mpps, this switch supports 24 ports of 10/100/1000/2.5G and 4 additional 10 Gigabit SFP+ ports, ensuring seamless data transmission and efficient network management. Its feature set, including VLAN support, Quality of Service (QoS), and robust security measures such as IP source guard and DHCP snooping, helps maintain a secure and reliable network environment for small and medium-sized businesses.

Key Selling Points

2.5 Gbps speed
10G Lightning-Fast uplink
Integrated into Omada SDN
Centralized management
Static routing
Robust security strategies
Optimize voice and video applications
Standalone management

Product Features

With a high switching capacity of 200 Gbps and a packet forwarding rate of 148.80 Mpps, the TL-SG3428X-M2 V1.6 ensures smooth and rapid data transfer across the network.

Supports a variety of routing protocols, including static IPv4 and IPv6 routing, IGMP, and MLD, allowing for efficient network routing.

The switch supports various authentication methods like SSH, TACACS+, and RADIUS, alongside advanced security features such as DoS attack prevention and ARP inspection to protect against unauthorized access.

The device comes with 24 ports supporting 10/100/1000/2.5G and 4 SFP+ ports, providing versatility for different network needs and ensuring high-speed connections.

Designed with Energy-Efficient Ethernet (EEE) technology, the switch minimizes power consumption, operating at only 45.1 W during normal operation while providing sufficient performance.

Attributes

Main Specifications

Capacity

IP interfaces: 32Packet buffer size: 16 MBStatic routes: 48IGMP groups: 511Priority queues: 8Maximum aggregation groups: 8Layer 2 multicast filtering profiles: 256VLAN groups: 4000IP source guard entries: 100MAC addresses per port: up to 64Static ARP entr

Compliant Standards

IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3bz

Device Type

Switch - 24 ports - L2+ - managed

Dimensions (WxDxH)

44 cm x 18 cm x 4.4 cm

Enclosure Type

Rack-mountable

Features

Flow control, BOOTP support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, Cable Diagnostics

Jumbo Frame Support

9KB

MAC Address Table Size

32K entries

Manufacturer Warranty

5-year warranty

Performance

Switching capacity: 200 GbpsPacket forwarding rate: 148.80 Mpps

Ports

24 x 10/100/1000/2.5G + 4 x 10 Gigabit SFP+

Power

AC 100-240 V (50/60 Hz)

Product Description

TP-Link JetStream TL-SG3428X-M2 V1.6 - switch - 24 ports - managed - rack-mountable

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, MIB

Routing Protocol

IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP

Subtype

2.5 Gigabit Ethernet

System Requirements

UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11

TP-Link JetStream TL-SG3428X-M2 - 24-Port 2.5GbE BASE-T L2+ Managed Switch with 4 10GbE SFP+ Slots

Name: TP-Link JetStream TL-SG3428X-M2 - 24-Port 2.5GbE BASE-T L2+ Managed Switch with 4 10GbE SFP+ Slots
Brand: TP-Link
SKU: PLE-662498
Price: 749.00 AUD
Availability: OutOfStock

749

This product is ordered from our suppliers once you place your order and PLE have received full payment. Unfortunately supplier availability of this item is unconfirmed. Please contact your closest store prior to ordering if you require a firm ETA.

PLE Code

PLE-662498

Manufacturer

TP-Link

Boxed Weight

Model Number

TL-SG3428X-M2

Warranty

2 Year PLE Standard Return to Base

Buy now, pay later.

Same day delivery*

A large marketing image providing additional information about the product TP-Link JetStream TL-SG3428X-M2 - 24-Port 2.5GbE BASE-T L2+ Managed Switch with 4 10GbE SFP+ Slots - Additional alt info not provided

This document and other documents provided pursuant are for informational purposes only. The information type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of this document. This document may include screenshots from the manufacturer's website which may be used for multiple variations of this product. The model number supplied at the top of this page (explicitly specified as "Model Number") is the exact model item you will receive.
