TP-Link JetStream TL-SG3428XPP-M2 - 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

1199

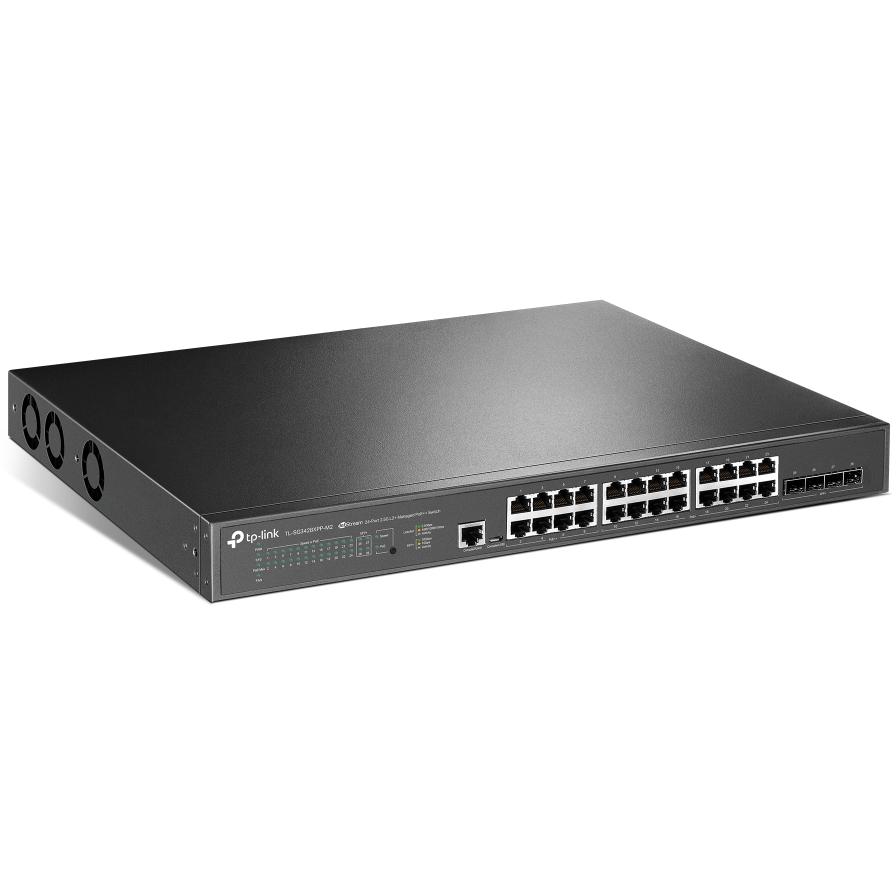

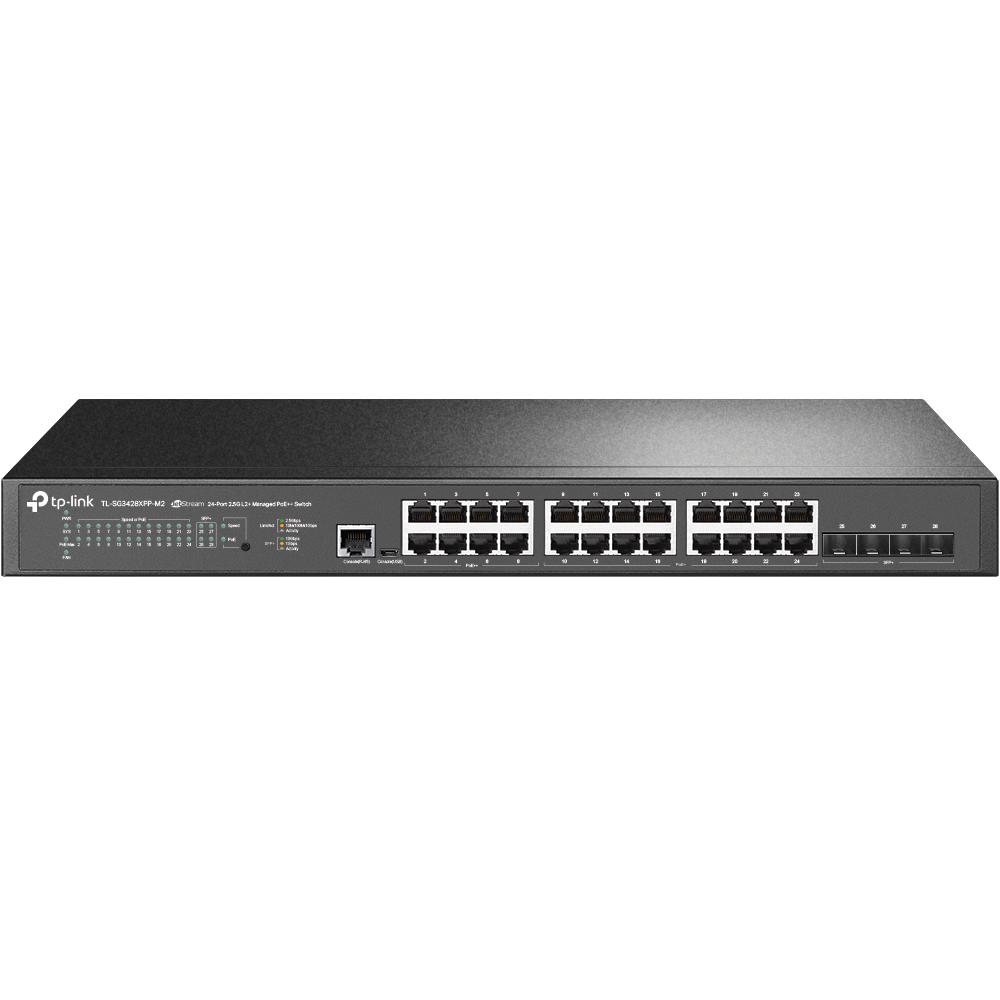

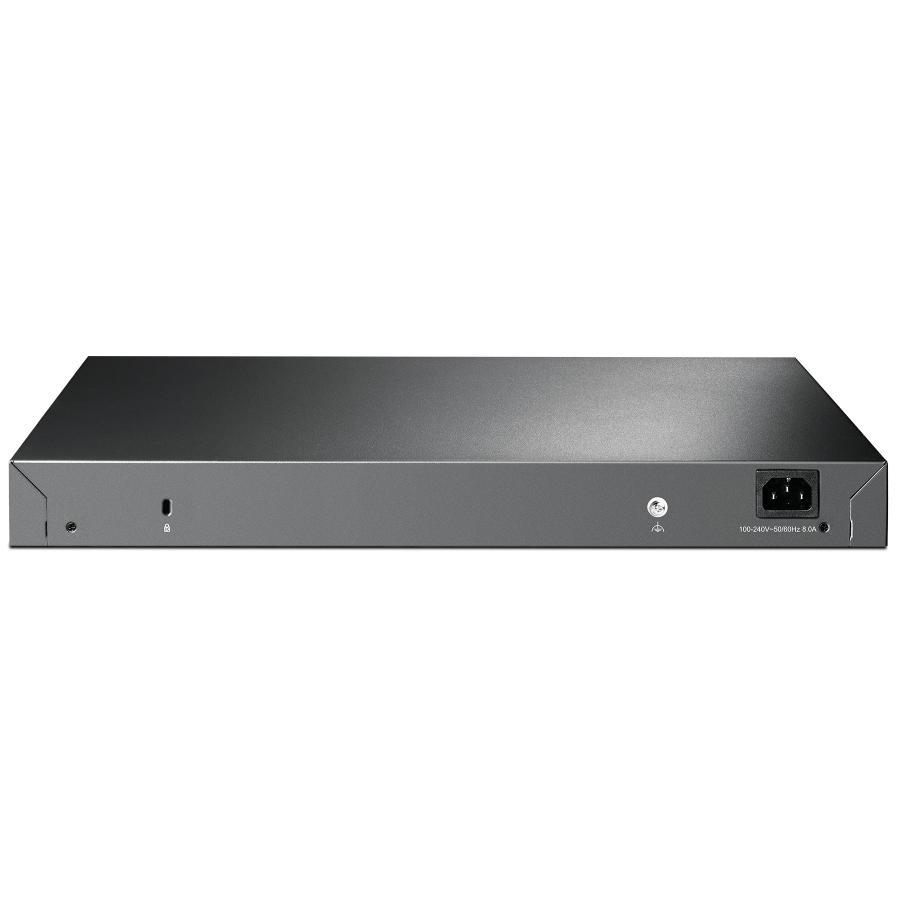

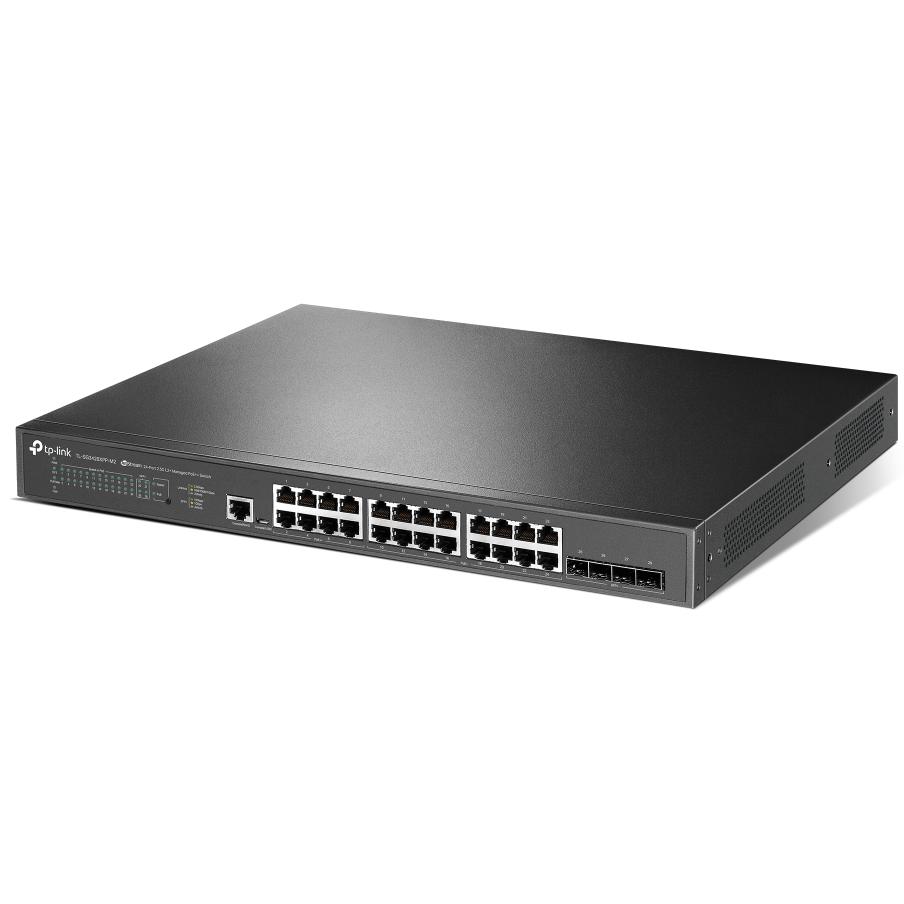

The TP-Link JetStream TL-SG3428XPP-M2 V1 is a switch designed to meet the demands of modern networking environments. With a capacity for up to 4000 static routes and 128 IGMP groups, the switch ensures efficient traffic management and service continuity. It features a robust hardware design with 24 PoE+ and PoE++ ports, delivering up to 500 W of Power over Ethernet to power connected devices seamlessly. The switch is rack-mountable and provides an extensive selection of management protocols, including SNMP and RMON, for streamlined control and monitoring. It can handle temperatures from 0°C to 40°C, making it suitable for various deployment scenarios.

Key Selling Points

2.5 Gbps speed
10G Lightning-Fast uplink
Integrated into Omada SDN
Centralized management
Static routing
Robust security strategies
Optimize voice and video applications
Standalone management

Product Features

Supports up to 4000 static routes and 128 IGMP groups, allowing for organized and effective data flow across the network.

Equipped with 24 PoE+ and PoE++ ports that provide up to 500 W of power, enabling the connection and powering of various network devices without additional wiring.

Offers numerous management protocols including SNMP and RMON for comprehensive network control and monitoring capabilities.

Designed to operate in temperatures ranging from 0°C to 40°C, with a storage temperature range from -40°C to 70°C, suitable for both industrial and office settings.

Features a built-in 32 MB flash memory and 256 MB RAM to support high-performance operations and ensure smooth functionality.

Attributes

Main Specifications

Capacity

IP interfaces: 32Packet buffer size: 16 MBStatic routes: 48IGMP groups: 511Priority queues: 8Maximum aggregation groups: 8Layer 2 multicast filtering profiles: 256VLAN groups: 4000MAC addresses per port: up to 64Static ARP entries: 128

Compliant Standards

IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt

Device Type

Switch - 24 ports - L2+ - managed

Dimensions (WxDxH)

44 cm x 33 cm x 4.4 cm

Enclosure Type

Rack-mountable

Features

Flow control, BOOTP support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, DHCP

Jumbo Frame Support

9KB

MAC Address Table Size

32K entries

Performance

Switching capacity: 200 GbpsPacket forwarding rate: 148.80 Mpps

PoE Budget

500 W

Ports

16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+

Power

AC 100-240 V (50/60 Hz)

Power Over Ethernet (PoE)

PoE++

Product Description

TP-Link JetStream TL-SG3428XPP-M2 V1 - switch - 24 ports - managed - rack-mountable

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, RSTP, TACACS+, RADIUS, MIB

Routing Protocol

IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP

Subtype

2.5 Gigabit Ethernet

System Requirements

UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11

TP-Link JetStream TL-SG3428XPP-M2 - 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

Name: TP-Link JetStream TL-SG3428XPP-M2 - 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
Brand: TP-Link
SKU: PLE-661713
Price: 1199.00 AUD
Availability: OutOfStock

1199

This product is ordered from our suppliers once you place your order and PLE have received full payment. Unfortunately supplier availability of this item is unconfirmed. Please contact your closest store prior to ordering if you require a firm ETA.

PLE Code

PLE-661713

Manufacturer

TP-Link

Boxed Weight

Model Number

TL-SG3428XPP-M2

Warranty

3 Year PLE Standard Return to Base
