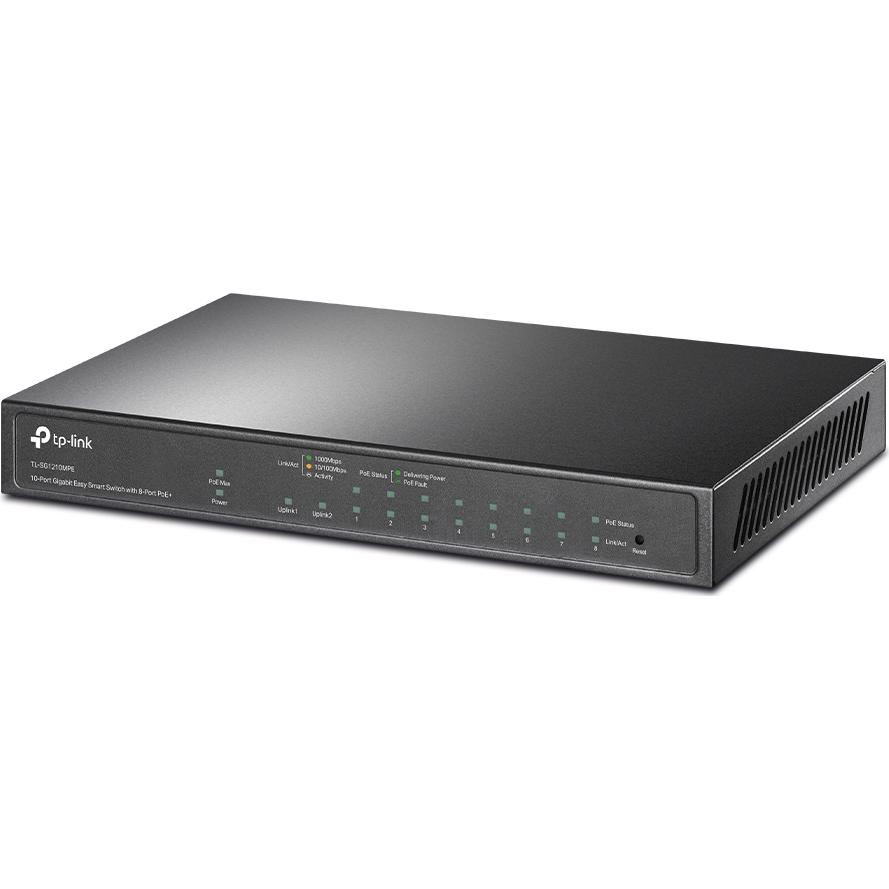

TP-Link SG1210MPE - 10-Port Gigabit Easy Smart Switch
$
159NETWORKING
Browse Networking
1GBPS SWITCH
Browse 1Gbps Switch
SWITCHES
Browse Switches
POWER OVER ETHERNET
Browse Power over Ethernet
TP-Link TL-SG1210MPE is an easy smart switch with 9x Gigabit RJ45 ports and 1x Gigabit combo SFP/RJ45 port that requires no configuration. With 8x PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Key Selling Points

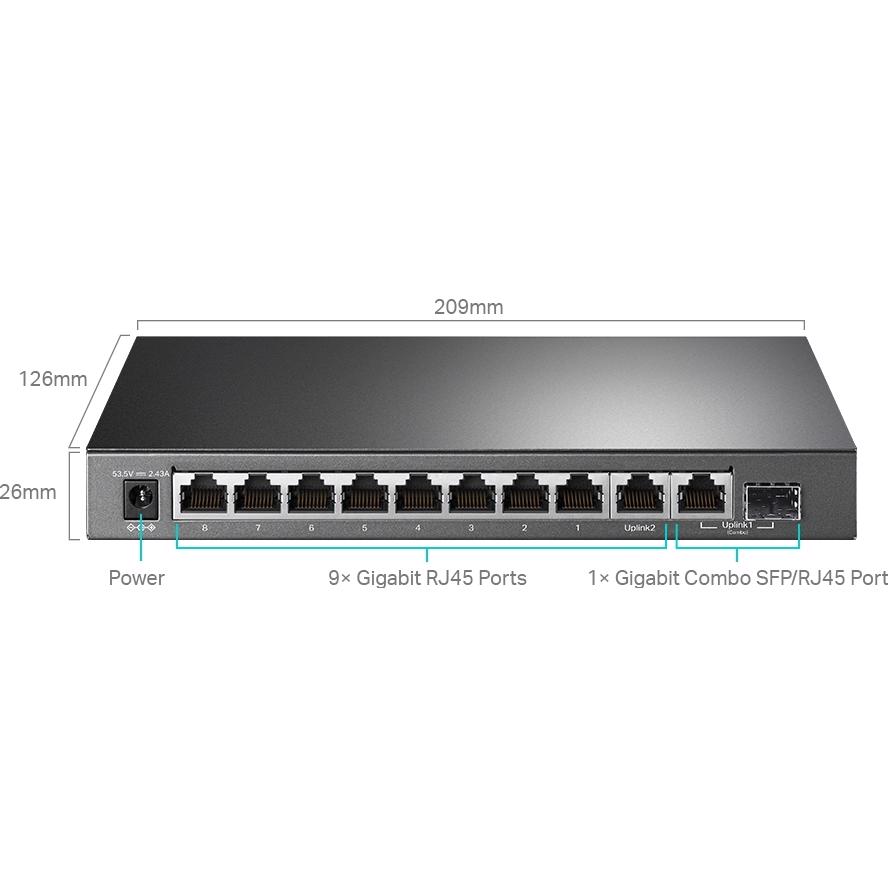

- 9x Gigabit RJ45 ports and 1x combo Gigabit SFP/RJ45 port
- Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
- Supports PoE power up to 123 W for all PoE ports
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Fanless design lowers energy consumption and eliminates operating noise
Product Features
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget for the 8x PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.
When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.
Attributes
Main Specifications
Capacity
VLANs supported: 32VLAN IDs: 4000Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3atDevice Type
Switch - 10 ports - smartDimensions (WxDxH)
20.9 cm x 12.6 cm x 2.6 cmFeatures
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, QoS, fanless, loop prevention, DSCP support, Storm Control, cable test, Static Link Aggregation, VLAN Tagging, priority mode, extend modeJumbo Frame Support
16KBMAC Address Table Size
4K entriesPerformance
Switching capacity: 20 GbpsPacket forwarding rate: 14.88 MppsPoE Budget
123 WPorts
8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x combo Gigabit SFP/RJ-45Power Over Ethernet (PoE)
PoE+Product Description
TP-Link TL-SG1210MPE V2 - switch - 10 ports - smartRouting Protocol
IGMPv2, IGMP, IGMPv3Subtype
Gigabit EthernetTP-Link SG1210MPE - 10-Port Gigabit Easy Smart Switch
Add to Wishlist
VIC :
Moorabbin
In Stock
VIC Warehouse
In Stock
WA :
Bentley
In Stock
Cockburn
In Stock
Osborne Park
In Stock
WA Warehouse
In Stock
Wangara
In Stock
Set your location for shipping prices
Set
PLE Code
PLE-648252Manufacturer
TP-LinkBoxed Weight
1.59Model Number
TL-SG1210MPEWarranty
3 Year PLE Standard Return to Base
