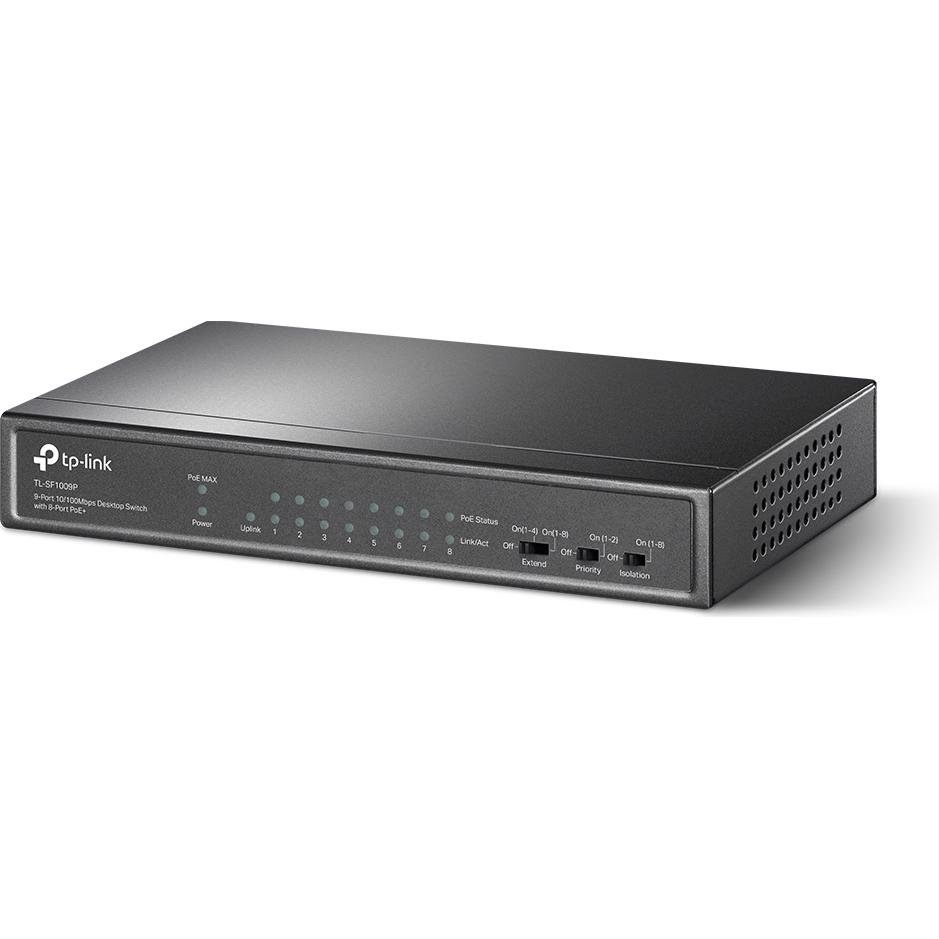

TP-Link SF1009P - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
$
69NETWORKING
Browse Networking
100MBPS SWITCH
Browse 100Mbps Switch
SWITCHES
Browse Switches
POWER OVER ETHERNET
Browse Power over Ethernet
TL-SF1009P is an unmanaged switch with 9 10/100Mbps ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Key Selling Points

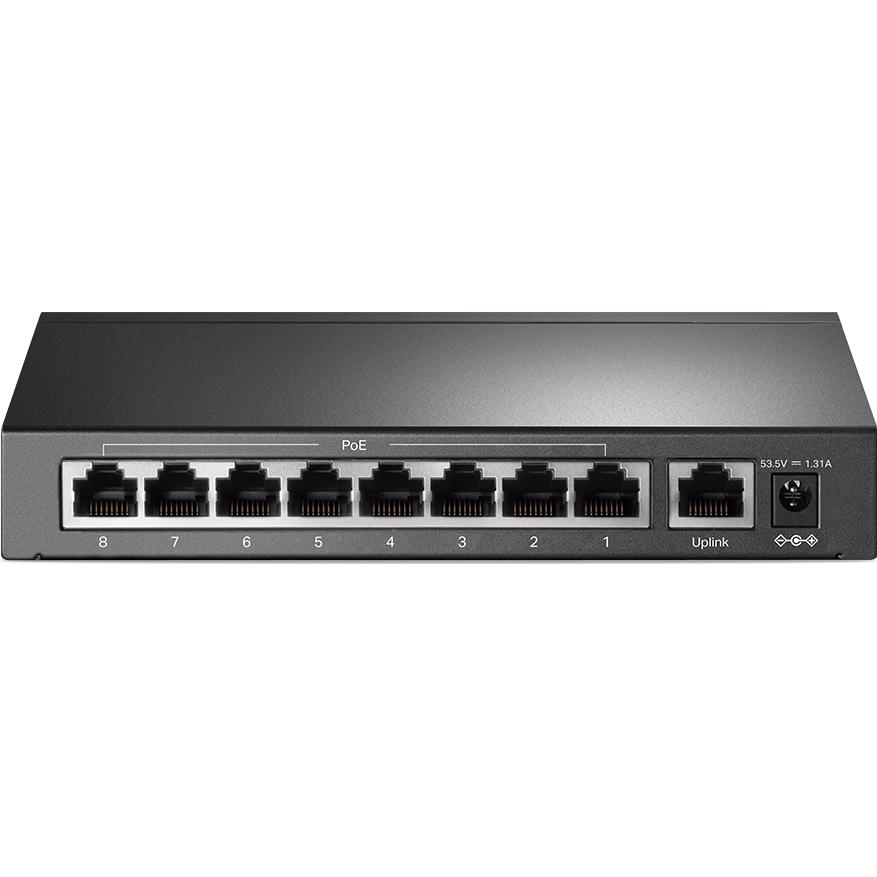

- 9× 10/100 Mbps RJ45 ports
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Up to 250 m data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1 - 2 to guarantee the quality of sensitive application
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports
- Plug and play with no configuration required
Product Features
8 of the 9 Auto-Negotiation RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
TL-SF1009P has the priority function which will help protect the system when the system power is overloaded.
Priority (port 1 = port 2 = port 3 > port 4): this function will help protect the system when the system power is overloaded. For example, port 1, 2 and 4 is using 20 W (maximum power per port is 30 W); the system power is 60 W in total. If there is an additional PD inserted to port 3 with 20 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 1, 2, and 3 will use 20 W, no power will be supplied to port 4.
TL-SF1009P is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TL-SF1009P is a great selection for expanding your network.
Attributes
Main Specifications
Compliant Standards
IEEE 802.3af, IEEE 802.3x, IEEE 802.3atDevice Type
Switch - 9 ports - unmanagedDimensions (WxDxH)
17.1 cm x 9.8 cm x 2.7 cmFeatures
Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless, security lock slot (cable lock sold separately)MAC Address Table Size
2K entriesPerformance
Bandwidth: 1.8 GbpsPoE Budget
65 WPorts
8 x 10/100 (PoE+) + 1 x 10/100Power Over Ethernet (PoE)
PoE+Product Description
TP-Link TL-SF1009P - switch - 9 ports - unmanagedSubtype
Fast EthernetTP-Link SF1009P - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
VIC :
VIC Warehouse
In Stock
WA :
Bentley
Approx 1 business day
Cockburn
In Stock
Osborne Park
Approx 1 business day
WA Warehouse
In Stock
Wangara
In Stock
Set your location for shipping prices
Set
PLE Code
PLE-642607Manufacturer
TP-LinkBoxed Weight
2Model Number
TL-SF1009PWarranty
3 Year PLE Standard Return to Base
