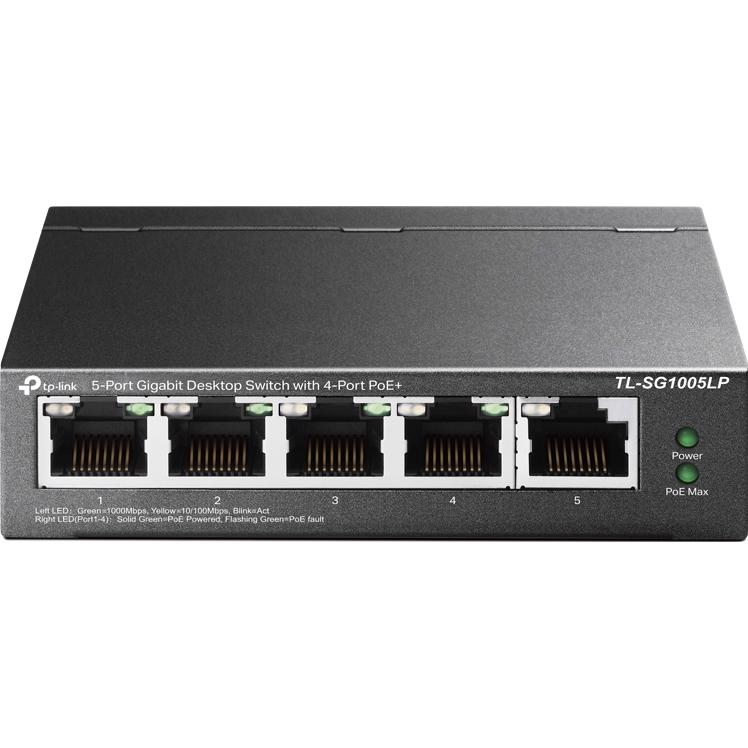

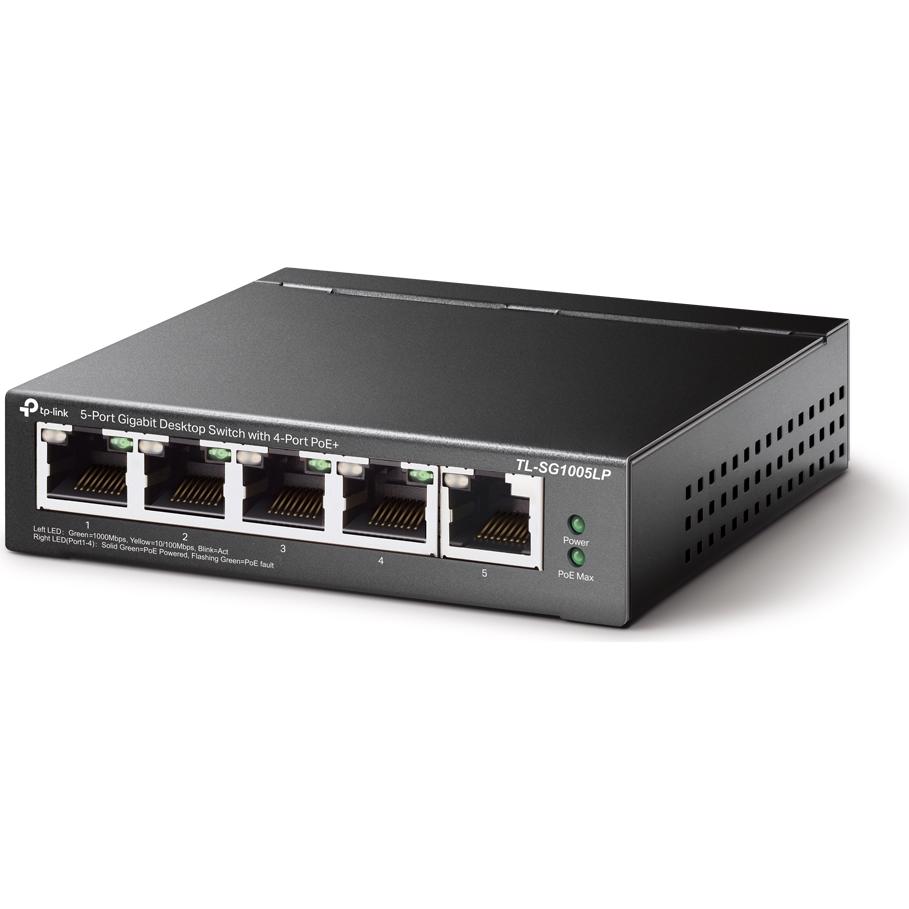

TP-Link SG1005LP - 5-Port Gigabit Desktop Switch with 4-Port PoE+
$
79NETWORKING
Browse Networking
1GBPS SWITCH
Browse 1Gbps Switch
SWITCHES
Browse Switches
POWER OVER ETHERNET
Browse Power over Ethernet
TL-SG1005LP is a professional 5-port Gigabit switch with 4 PoE+ ports. The total 40 W PoE power budget for the four PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life.
Key Selling Points
- Dedicated 4-port PoE+ switch for numerous applications
- Intelligent power management
- Qos for fluent online experience
- IGMP snooping - traffic optimization for IPTV
- Durable metal casing
- Plug and play with no configuration required
Product Features
The total 40 W PoE power budget for the four PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
Attributes
Main Specifications
Compliant Standards
IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3atDevice Type
Switch - 5 ports - unmanagedDimensions (WxDxH)
9.98 cm x 9.8 cm x 2.5 cmFeatures
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, QoS, fanless, DSCP supportJumbo Frame Support
16KBMAC Address Table Size
2K entriesPerformance
Packet forwarding rate: 7.44 MppsSwitching capacity: 10 GbpsPoE Budget
40 WPorts
5 x 10/100/1000 (4 PoE+)Power Over Ethernet (PoE)
PoE+Product Description
TP-Link TL-SG1005LP - V1 - switch - 5 ports - unmanagedRouting Protocol
IGMPSubtype
Gigabit EthernetTP-Link SG1005LP - 5-Port Gigabit Desktop Switch with 4-Port PoE+
Add to Wishlist
VIC :
Moorabbin
In Stock
VIC Warehouse
In Stock
WA :
Bentley
Out of stock
Cockburn
Out of stock
Osborne Park
Out of stock
WA Warehouse
Out of stock
Wangara
Out of stock
Set your location for shipping prices
Set
PLE Code
PLE-642514Manufacturer
TP-LinkBoxed Weight
0.5Model Number
TL-SG1005LPWarranty
