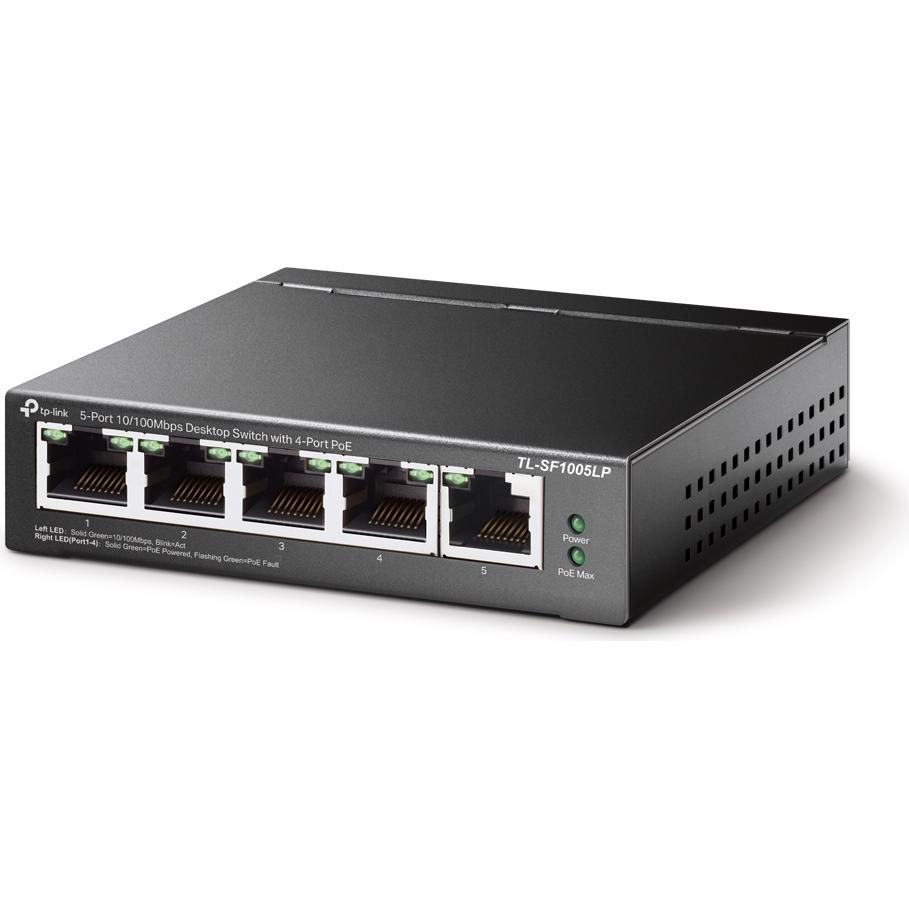

TP-Link SF1005LP - 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
$
49NETWORKING
Browse Networking
100MBPS SWITCH
Browse 100Mbps Switch
SWITCHES
Browse Switches
POWER OVER ETHERNET
Browse Power over Ethernet
TL-SF1005LP is a 5 10/100 Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Key Selling Points
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands your network
- Supports PoE Power up to 15.4 W for each PoE port
- Supports PoE Power up to 41 W for all PoE ports
- Plug and play, no configuration and installation required
- Up to 250 m data and power transmission under Extend Mode specially designed for surveillance system
- Priority Mode ensures high priority of port 1 - 2 to guarantee the quality of sensitive application
Product Features
Four of the 5 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
TL-SF1005LP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 41 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Priority (port-1=port-2=port-3>port-4): this function will help to ensure the normal operation of the system; it means Port 4 will be cut off when all total PoE PDs power consumption exceeds 41 W. For example. If port 1, 2 and 4 are consuming 10 W respectively, and an additional PoE device with 15.4 W is inserted to port 3, the system will cut off the power of port 4 to compensate for the overload.
TL-SF1005LP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link's TL-SF1005LP 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your network.
Attributes
Main Specifications
Compliant Standards
IEEE 802.3af, IEEE 802.3xDevice Type
Switch - 5 ports - unmanagedDimensions (WxDxH)
10 cm x 9.8 cm x 2.5 cmFeatures
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless, metal housing, priority mode, extend mode, security slot (Kensington security lock compatible), Intelligent Power ManagementJumbo Frame Support
2KBMAC Address Table Size
2K entriesPerformance
Packet forwarding rate: 0.744 MppsSwitching capacity: 1 GbpsPoE Budget
41 WPorts
5 x 10/100 (4 PoE)Power Over Ethernet (PoE)
PoEProduct Description
TP-Link TL-SF1005LP - V1 - switch - 5 ports - unmanagedSubtype
Fast EthernetTP-Link SF1005LP - 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
VIC :
VIC Warehouse
Out of stock
WA :
Bentley
Approx 1 business day
Cockburn
In Stock
Osborne Park
Approx 1 business day
WA Warehouse
In Stock
Wangara
In Stock
PLE Code
PLE-642513Manufacturer
TP-LinkBoxed Weight
0.5Model Number
TL-SF1005LPWarranty
3 Year PLE Standard Return to Base
