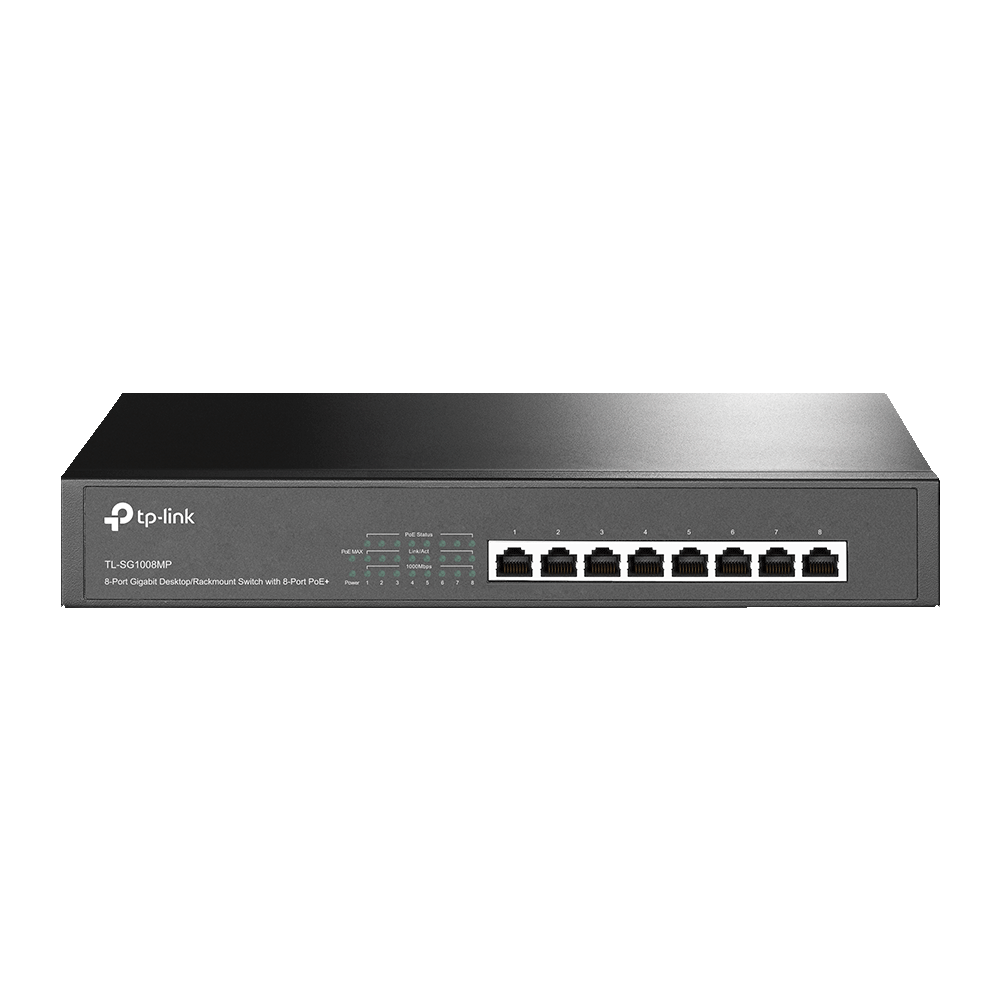

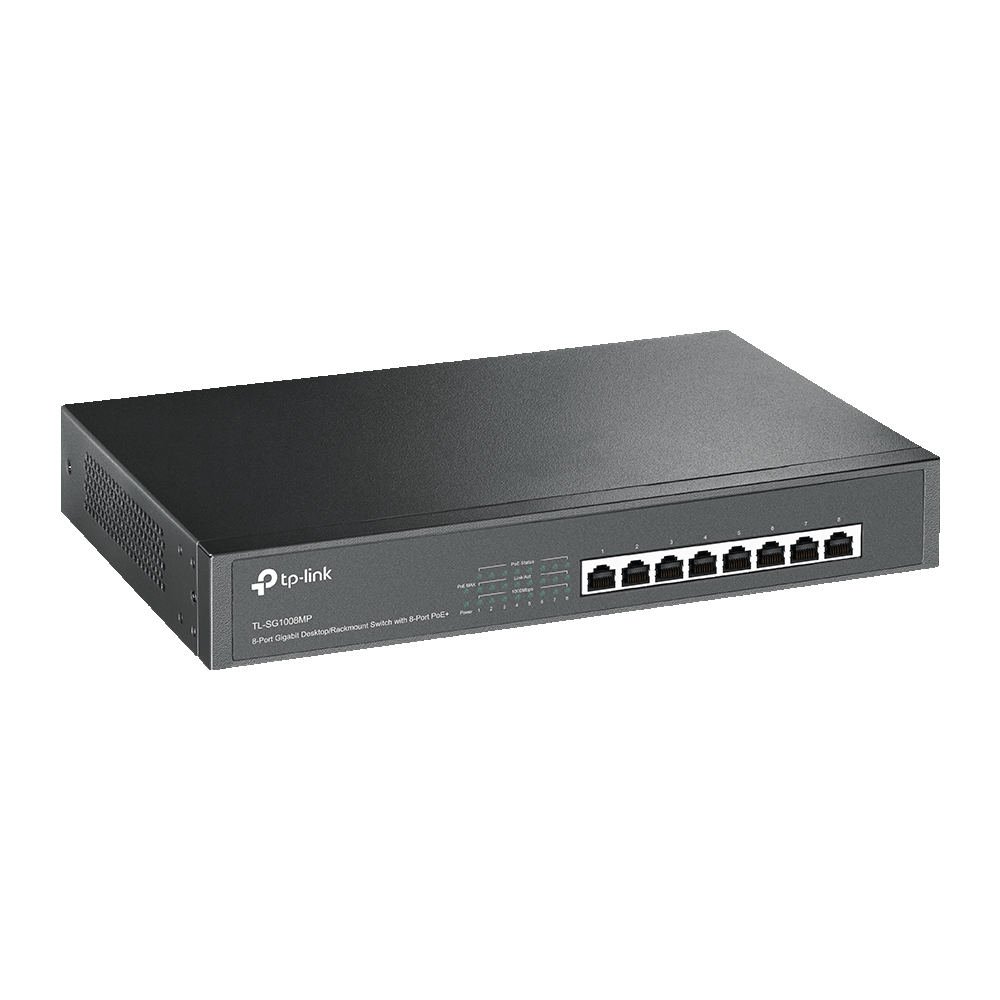

TP-Link SG1008MP - 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
$
179NETWORKING
Browse Networking
1GBPS SWITCH
Browse 1Gbps Switch
SWITCHES
Browse Switches
POWER OVER ETHERNET
Browse Power over Ethernet
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
All 8 ports of TL-SG1008MP support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are no electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
All 8 ports of TL-SG1008MP support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are no electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
Product Features
TL-SG1008MP has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices' power consumption is greater than or equal to 126W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 126W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 126W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Attributes
Main Specifications
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3atDevice Type
Switch - 8 ports - unmanagedDimensions (WxDxH)
29.4 cm x 18 cm x 4.4 cmEnclosure Type
Rack-mountableFeatures
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, half duplex mode, full duplex mode, QoS, Jumbo Frames support, DSCP support, 1.5MB packet buffer, Back Pressure Support, 1 fanJumbo Frame Support
16KBMAC Address Table Size
4K entriesManufacturer Warranty
Limited lifetime warrantyPerformance
Bandwidth: 16 GbpsPoE Budget
126 WPorts
8 x 10/100/1000 (PoE+)Power
AC 120/230 V (50/60 Hz)Power Over Ethernet (PoE)
PoE+Product Description
TP-Link TL-SG1008MP - switch - 8 ports - unmanaged - rack-mountableSubtype
Gigabit EthernetTP-Link SG1008MP - 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
Add to Wishlist
VIC :
Moorabbin
In Stock
VIC Warehouse
In Stock
WA :
Bentley
Approx 1 business day
Cockburn
In Stock
Osborne Park
In Stock
WA Warehouse
Approx 1 business day
Wangara
In Stock
Set your location for shipping prices
Set
PLE Code
PLE-639448Manufacturer
TP-LinkBoxed Weight
2.1Model Number
TL-SG1008MPWarranty
3 Year PLE Standard Return to Base
