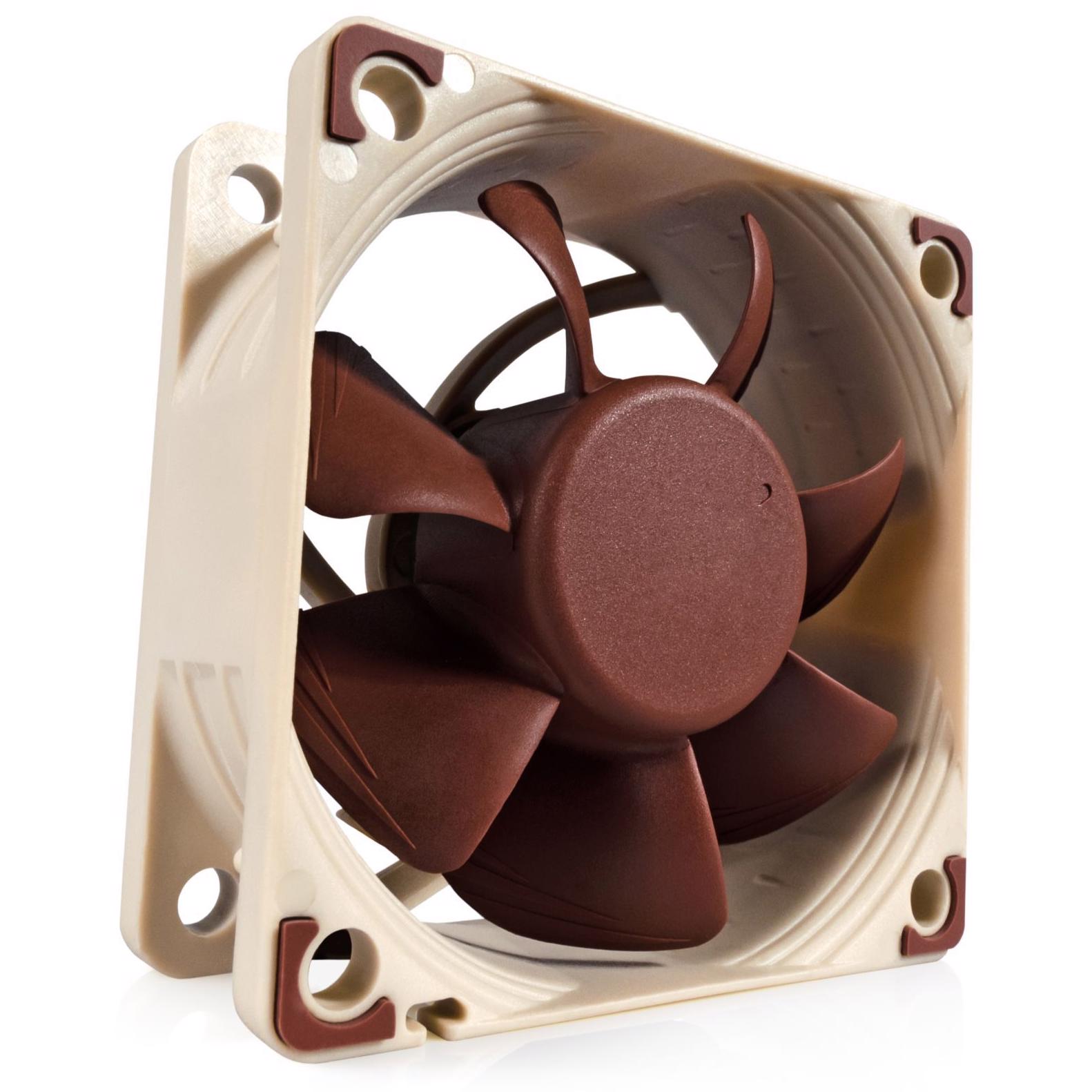

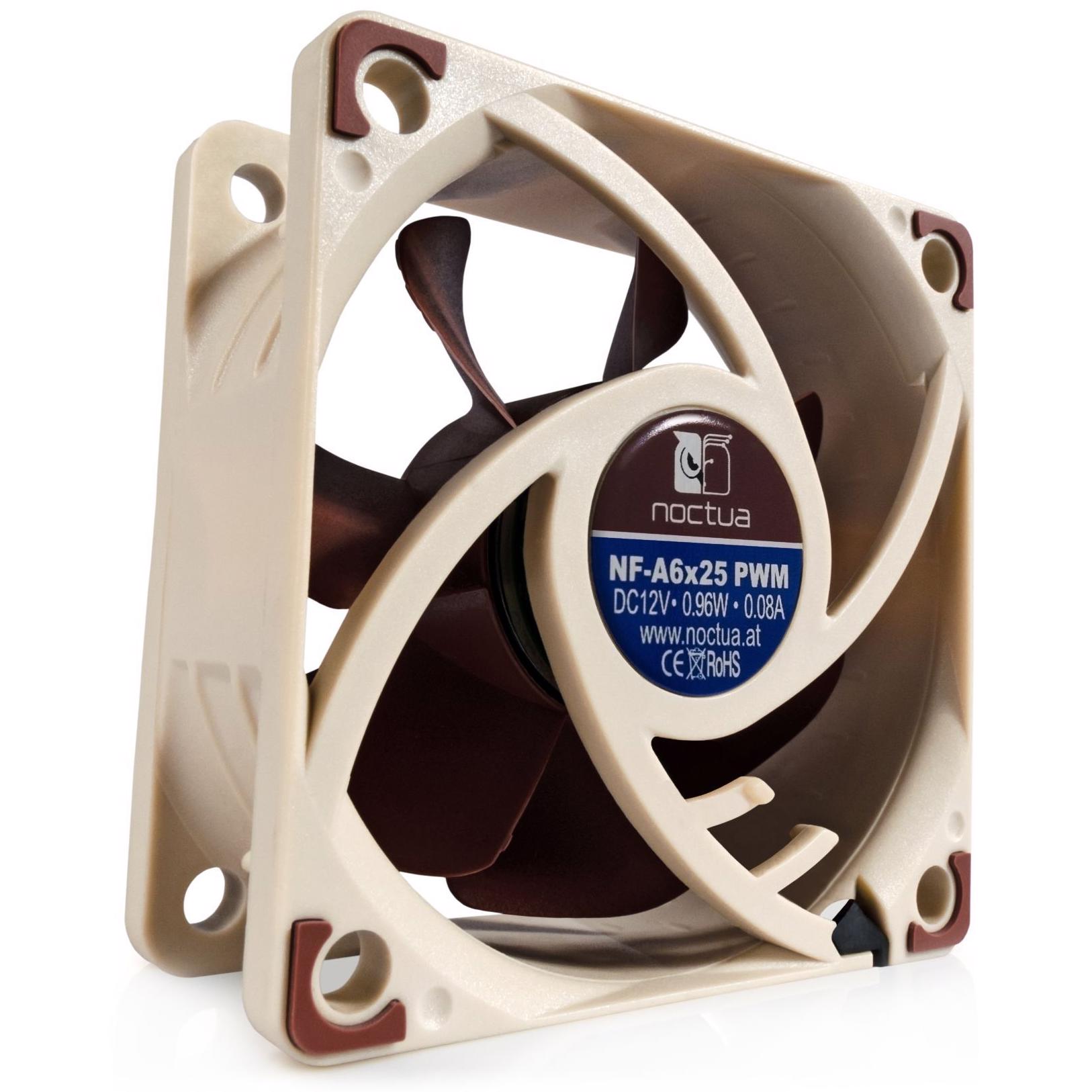

Noctua NF-A6x25-PWM 60mm x 25mm 3000RPM PWM Cooling Fan

Featuring advanced aerodynamic design measures such as flow acceleration channels and Noctua’s AAO frame, the NF-A6x25 is a highly optimized, quiet fan. It features a low-noise adapter to reduce the maximum speed during PWM control. Its advanced running smoothness, SSO2 bearing and Noctua’s trusted quality make it an elite choice for high demands.

Key Selling Points

Flow acceleration channels
Varying angular distance
AAO frame
Stepped inlet design
Inner surface microstructures
Integrated anti-vibration
SSO2 bearing
Custom designed PWM IC with SCD
Low-noise adapter

Product Features

The NF-A6x25 impeller features suction side flow acceleration channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

Thanks to its streamlined, compact motor design, the NF-A6x25's motor hub is small. This allows for more blade surface area and thus contributes to the NF-A6x25's superior airflow and pressure performance.

Noctua's AAO frames feature integrated anti-vibration pads as well as Noctua's stepped inlet design and inner surface microstructures, both of which further refine the fan's performance and noise efficiency.

Noctua's stepped inlet design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.

With the tips of the fan blades plugging through, the boundary layer created by the inner surface microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated anti-vibration pads made from extra silicone minimize the transmission of minute vibrations while maintaining full compatibility with mounting systems and fan clips used on heatsinks.

The NF-A6x25 features the further optimized SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilization, precision and durability.

Supporting fully automatic PWM speed control, the NF-A6x25 PWM uses Noctua's custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.

The NF-A6x25 PWM is supplied with a low-noise adapter that reduces high fan speeds. It can be used either to run the fan at a fixed speed or to cap high speed when using automatic PWM control.

Attributes

Main Specifications

Air Flow

29.2 cfm

Dimensions (WxDxH)

6 cm x 6 cm x 2.5 cm

Fan Bearing

SSO2 bearing

Fan Diameter

60 mm

Fan Height

25 mm

Features

Pulse-width modulation (PWM) support, Advanced Acoustic Optimisation (AAO), flow acceleration channels, integrated anti-vibration pads, Smooth Commutation Drive 2 (SCD2) technology, Stepped Inlet Design, Inner Surface Microstructures

Manufacturer Warranty

6-year warranty

Noise Level

19.3 dBA

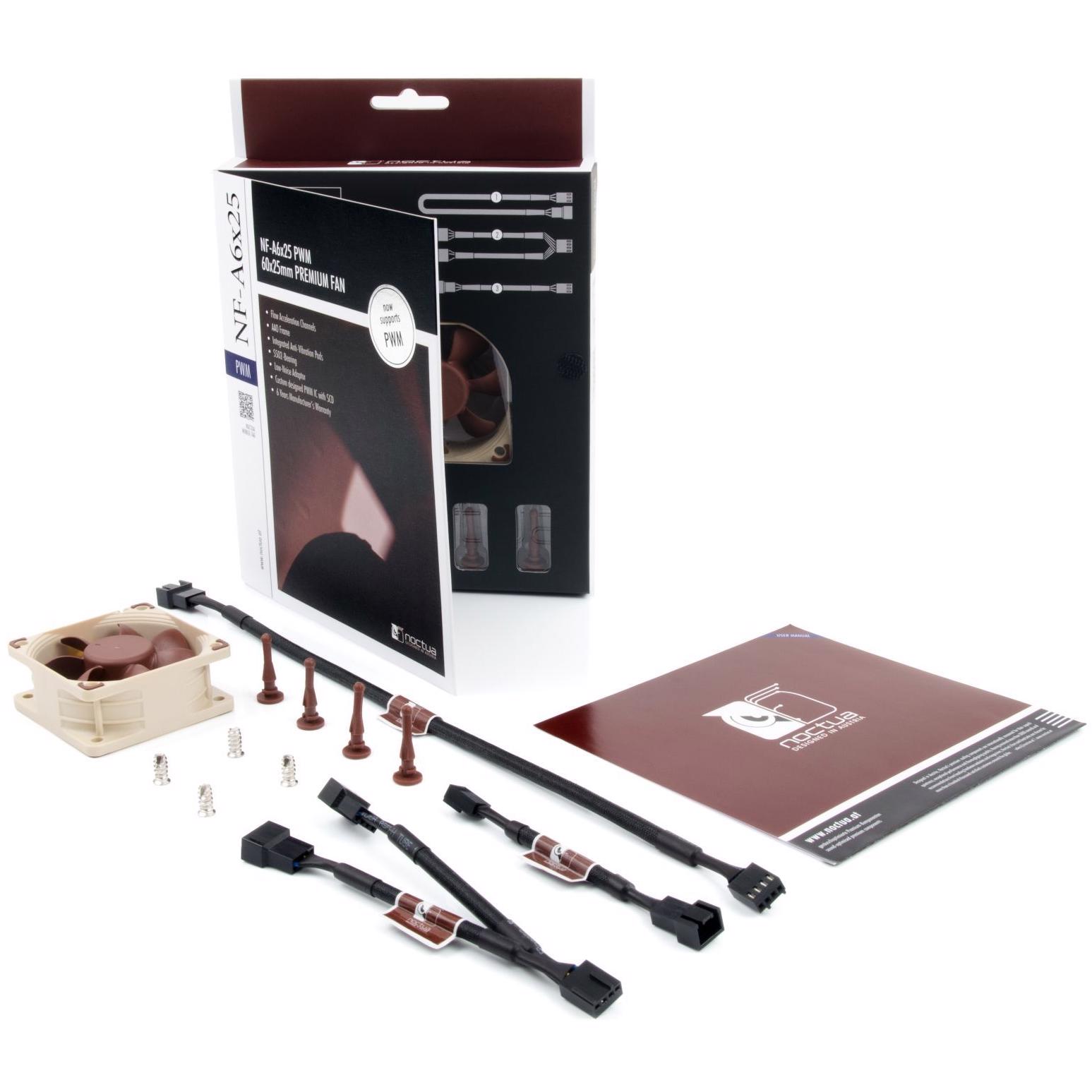

Package Content

Low-Noise Adapter (L.N.A.), Y-Split cable, 4 vibration isolators, extension cable (30 cm), 4 screws

Power Connector

4-pin fan connector

Product Description

Noctua NF-A6x25 PWM - case fan

Product Type

Case fan

Rated Voltage

12 V

Rotation Speed

550-3000 rpm

Noctua NF-A6x25-PWM 60mm x 25mm 3000RPM PWM Cooling Fan

Name: Noctua NF-A6x25-PWM 60mm x 25mm 3000RPM PWM Cooling Fan
Brand: Noctua
SKU: PLE-638246
Price: 35.00 AUD
Availability: OutOfStock

VIC :

VIC Warehouse

Out of stock

WA :

Bentley

ETA 15/6/2026

Cockburn

ETA 15/6/2026

Osborne Park

ETA 15/6/2026

WA Warehouse

ETA 11/6/2026

Wangara

ETA 15/6/2026

PLE Code

PLE-638246

Manufacturer

Noctua

Boxed Weight

0.4

Model Number

NF-A6x25-PWM

Warranty

1 Year PLE Standard Return to Base
