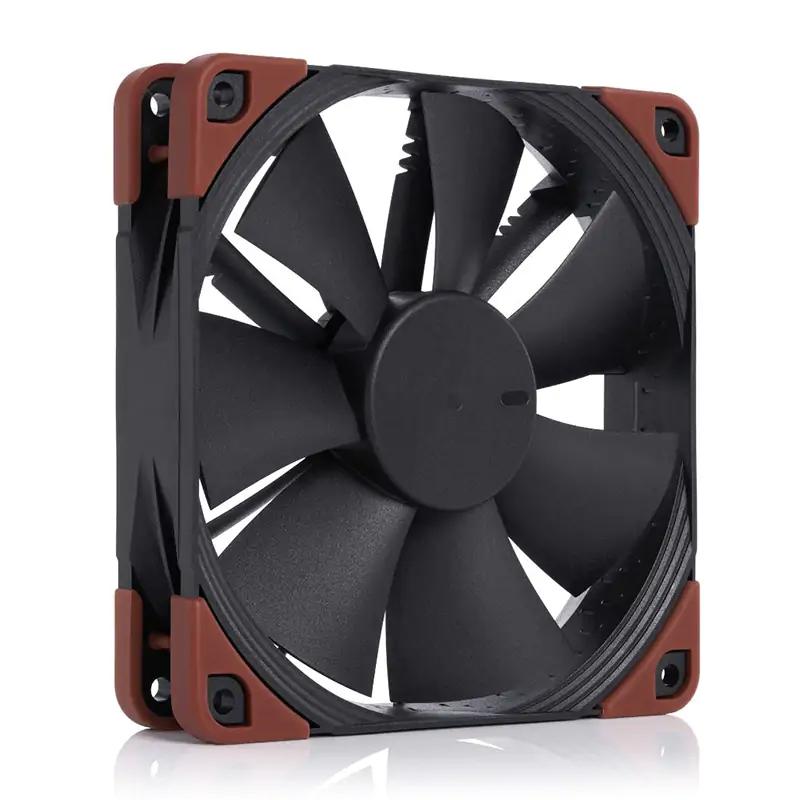

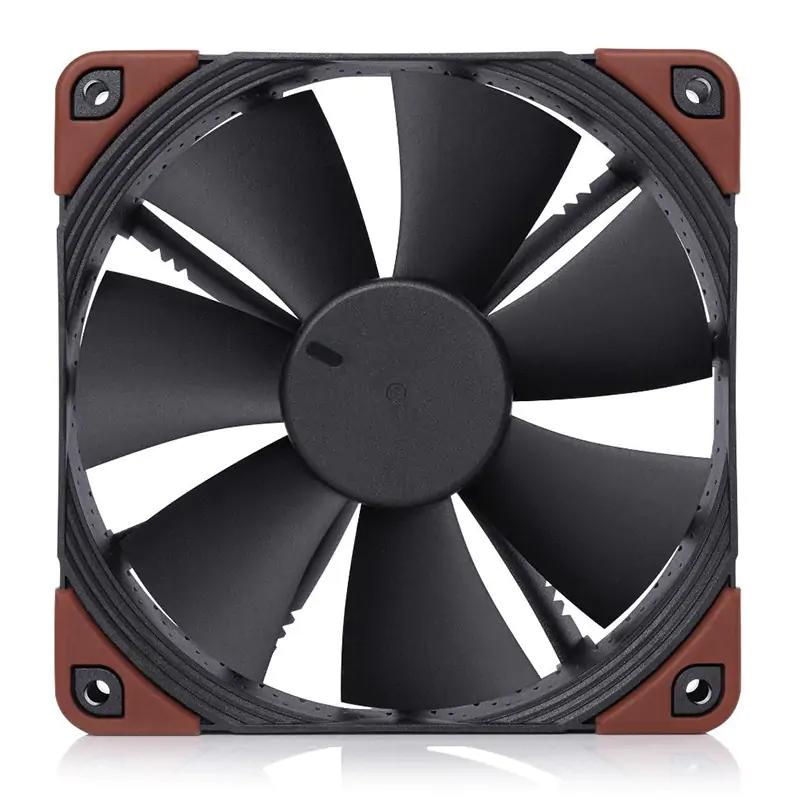

Noctua 120mm IndustrialPPC IP52 3000RPM PWM Fan
$
60
Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC is a ruggedized high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fiber-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs.
Key Selling Points
- Three-phase motor design
- Fiber-glass reinforced polyamide construction
- Certified IP52 water- and dust protection
- Focused flow frame
- Varying angular distance and vortex control notches
- Heptaperf Impeller
- AAO frame
Product Features
- Three-phase motor design
While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency. - Fiber-glass reinforced polyamide construction
Both the impeller and the frame of Noctua's industrialPPC fans are made entirely from fiber-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua's standard fiber-glass reinforced PBT fans. - Certified IP52 water- and dust protection
Thanks to a special varnish coating that covers the motor and PCB, the NF-F12 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute. - Focused flow frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds. - Varying angular distance and vortex control notches
The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear. - Heptaperf Impeller
Custom designed for the new Focused Flow frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf impeller has been carefully optimized to achieve a perfect balance between power and quietness. - AAO frame
Noctua's AAO frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Noctua 120mm IndustrialPPC IP52 3000RPM PWM Fan
VIC :
VIC Warehouse
Out of stock
WA :
Bentley
Approx 1 business day
Cockburn
Approx 1 business day
Osborne Park
Approx 1 business day
WA Warehouse
In Stock
Wangara
Approx 1 business day
PLE Code
PLE-619896Manufacturer
NoctuaBoxed Weight
0.4Model Number
NF-F12-iPPC-3000-PWMWarranty
1 Year PLE Standard Return to Base
