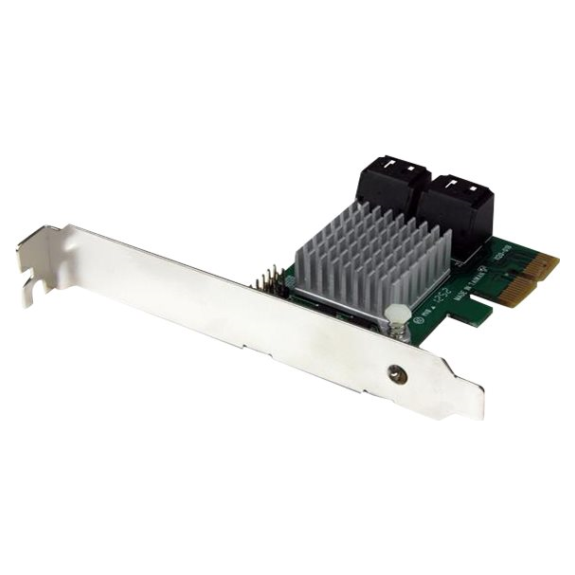

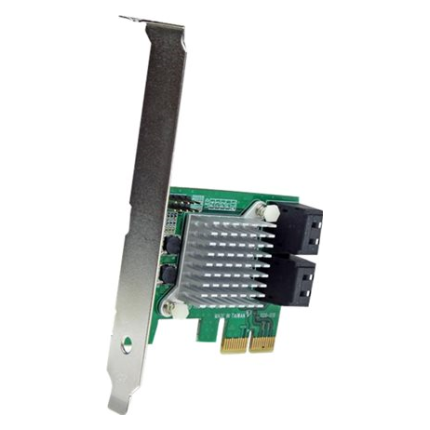

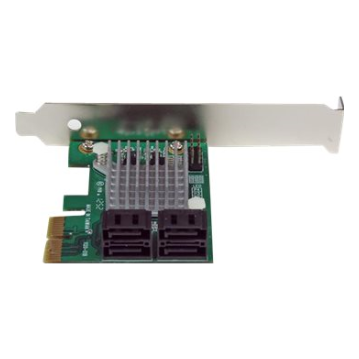

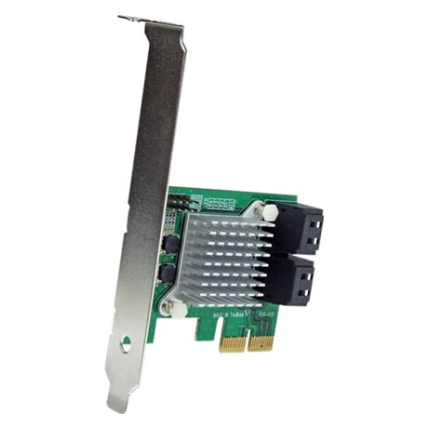

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs). Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.) The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support. Throughput Benchmark Drive configuration Throughput Drive size 1 x HDD 112.81 MB/s 2 TB 1 x SSD 490.28 MB/S 120 GB 1 x HDD + 1 x SSD HyperDuo (Safe Mode) 489.28 MB/s 2 TB 1 x HDD + 2 x SSD HyperDuo (Safe Mode) 715.13 MB/s 2 TB Drives Used: SSD: OCZ Vertex 3 Series 2.5" 120 GB (VTX3-25SAT3-120G) HDD: Western Digital Caviar Green 3.5" 2 TB (WD20EARS) Software Used: IO Meter, 256KB Sequential Read, queue depth = 10 This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Key Selling Points
  • Leverage SSD performance and standard HDD capacity with HyperDuo technology
  • Maximize system capability with SATA III connection speeds

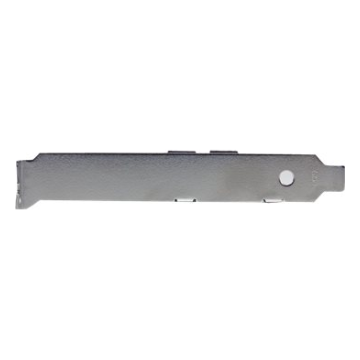

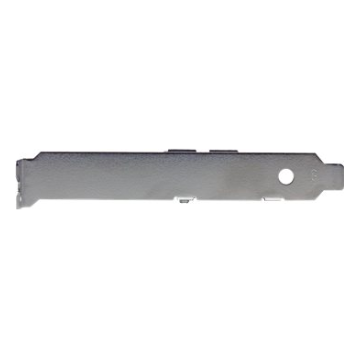

  • Fit any standard or low profile chassis with included brackets
Product Features
This controller card supports various RAID levels including RAID 0 for performance, RAID 1 for data redundancy, RAID 10 for a combination of both, and JBOD for flexible storage management.
With a data transfer rate of 6 Gbit/s, this card allows for rapid data movement, optimizing overall system performance during heavy workloads.
The low-profile form factor enables easy installation in space-constrained environments without sacrificing performance, providing a fit for compact systems.
Tailored for Mac systems, this storage controller ensures seamless integration, allowing users to expand their storage without complications.
Meets FCC and RoHS standards, assuring users of environmental and safety while delivering consistent performance.
Attributes
General
Depth
7 cm
Device Type
Storage controller (RAID) - plug-in card - low profile
Height
2 cm
Host Bus
PCIe 2.0 x2
Interface
SATA 6Gb/s

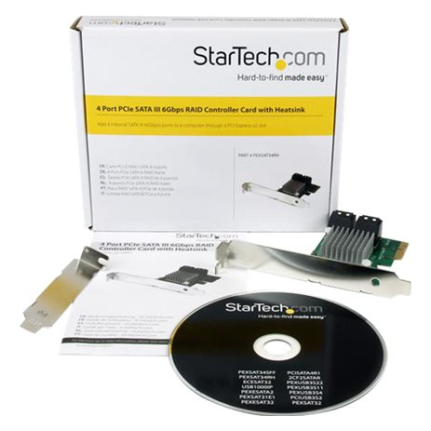

Package Content
SATA 6Gb/s
Storage Capacity
StarTech.com 4 Port PCI Express SATA III RAID Card w/ HyperDuo SSD Tiering - storage controller (RAID) - SATA 6Gb/s - PCIe 2.0 x2
Width
12 cm

Startech 4 Port PCIe SATA III Controller Card

$
165
VIC :
VIC Warehouse
In Stock
WA :
Bentley
In Stock
Cockburn
In Stock
Osborne Park
In Stock
WA Warehouse
In Stock
Wangara
In Stock
Set your location for shipping prices
Use device location
Set
PLE Code
PLE-618590
Manufacturer
Startech
Boxed Weight
0.08
Model Number
PEXSAT34RH
Warranty
2 Year PLE Standard Return to Base
