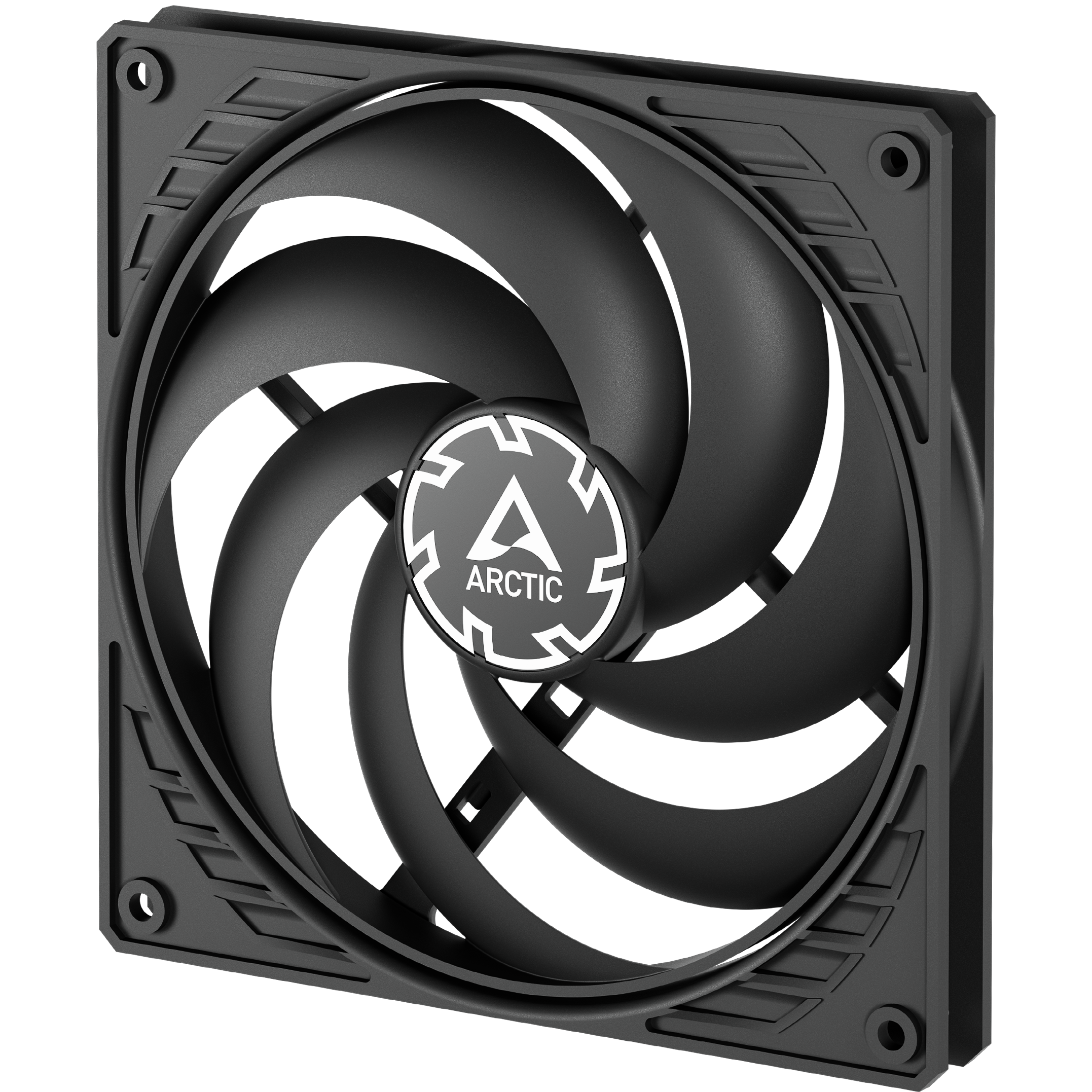

A product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
$
15
  • A large main feature product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A large main feature product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A large main feature product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A large main feature product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A large main feature product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A large main feature product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A large main feature product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A small tile product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A small tile product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A small tile product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A small tile product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A small tile product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A small tile product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
  • A small tile product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)

Because the fan design of the P14 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P14 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.


With a wide speed range and innovative PWM Sharing Technology (PST), the P14 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.


Specifications:

  • Fan speed: 120-1800 RPM
  • Airflow: 47 CFM | 79.85 m³/h
  • Speed control: PWM
  • Static pressure: 1.31 mmH²O
  • Connector: 4-Pin plug & socket
  • Fan bearing: fluid dynamic bearing
  • Dimensions: 140 x 140 x 15mm
  • Cable length: 400mm + 80mm daisy-chain cable
  • Weight: 130g
Attributes
Main Specifications
Air Flow
52 cfm
Dimensions (WxDxH)
14 cm x 14 cm x 1.6 cm
Fan Bearing
Fluid dynamic bearing
Fan Diameter
140 mm
Fan Height
16 mm
Features
Pulse-width modulation (PWM) support, PWM Sharing Technology (PST)
Manufacturer Warranty
6-year warranty
Noise Level
0.3 Sone
Power Connector
4-pin fan connector, 4-pin fan socket
Product Description
ARCTIC P14 - case fan - slim
Product Type
Case fan - slim
Rated Voltage
12 V
Rotation Speed
150-1800 rpm
Weight
109 g

ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)

VIC :
VIC Warehouse
In Stock
WA :
Bentley
In Stock
Cockburn
In Stock
Osborne Park
In Stock
WA Warehouse
In Stock
Wangara
In Stock
Set your location for shipping prices
Use device location
Set
PLE Code
PLE-667548
Manufacturer
ARCTIC
Boxed Weight
0.2
Model Number
ACFAN00268A
Warranty
3 Year PLE Standard Return to Base
A large marketing image providing additional information about the product ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black) - Additional alt info not provided
A product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
A product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
A product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
A product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
A product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
A product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
A product image of ARCTIC P14 Slim PWM PST 140mm Performance Fan (Black)
This document and other documents provided pursuant are for informational purposes only. The information type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of this document. This document may include screenshots from the manufacturer's website which may be used for multiple variations of this product. The model number supplied at the top of this page (explicitly specified as "Model Number") is the exact model item you will receive.
