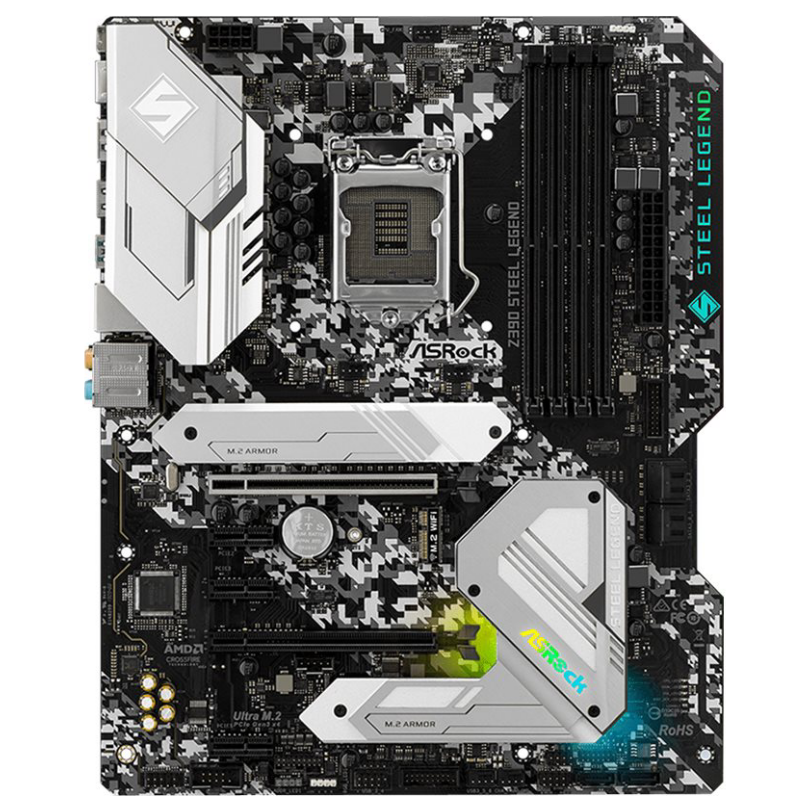

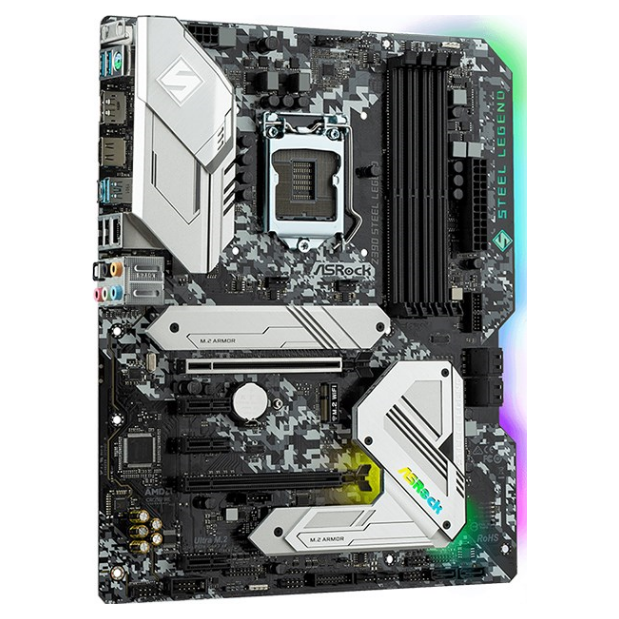

ASRock Z390 Steel Legend LGA1151-CL ATX Desktop Motherboard
$239.00
Add to Cart
Add to Wishlist
Close
ASRock Z390 Steel Legend LGA1151-CL ATX Desktop Motherboard
Close
ASRock Z390 Steel Legend LGA1151-CL ATX Desktop Motherboard
$239.00
More from this brand
Add to Cart
Add to Wishlist
Close
Stock Availability
Bentley (WA)
5/3/2020
Notify me
Close
Cockburn (WA)
5/3/2020
Notify me
Close
Osborne Park (WA)
5/3/2020
Notify me
Close
Wangara (WA)
5/3/2020
Notify me
Close
WA Warehouse
4/3/2020
Notify me
Close
Heatherton (VIC)
In stock
Product Information
PLE Code
PLE-639732Manufacturer
ASRockBoxed Weight
2.3kgModel Number
Z390-STEEL-LEGENDWarranty
3 Year PLE Standard Return to Base
Share This Product On Socials
Product Description
ASRock motherboard provides completely smooth power delivery to the CPU and offers unmatched overclocking capabilities and enhanced performance with lower temperatures.
Product Summary
High-density glass fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock full spike protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
Product Specifications
Form Factor
ATX
Memory Type
DDR4
Chipset
Z390
PCB Colour
Black
Socket
LGA1151-CL
RGB Type
A-RGB & RGB
Product Description
ASRock Z390 Steel Legend - motherboard - ATX - LGA1151 Socket - Z390
Product Type
Motherboard - ATX
Chipset Type
Intel Z390
Processor Socket
1 x LGA1151 Socket
Compatible Processors
(supports 9th and 8th Generation Intel Core)
Max RAM Size
128 GB
RAM Supported
4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered
Storage Ports
6 x SATA-600 (RAID), 2 x Ultra M.2
USB / FireWire Ports
USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (4 x USB 3.2 Gen 1 + 3 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet
Max Processors Qty
1
Max Size
128 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3200 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1200
Compliant Standards
High Definition Audio, Premium Blu-ray audio support
Network Controller
Intel I219V
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU4 x DIMM 288-pin2 x PCIe 3.0 x16 (dual x16, x4 mode; single card: x16 mode)3 x PCIe 3.0 x11 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5SATA-600 / PCIe 3.0 -connectors: 2 x Ultra M.2
Interfaces
1 x PS/2 keyboard / mouse1 x HDMI1 x DisplayPort1 x TOSLINK1 x USB 3.2 Gen 21 x USB-C Gen22 x USB 3.2 Gen 11 x LAN (Gigabit Ethernet)1 x audio line-in - mini-jack1 x microphone - mini-jack1 x audio line-out (rear) - mini-jack1 x audio line-out (center/sub
Internal Interfaces
3 x USB 2.0 - header4 x USB 3.2 Gen 1 - header1 x audio - header1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up
Wake on LAN (WOL)
Hardware Features
8 Phase Power Design, ASRock Instant Flash, 15µ Gold Contact, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock Internet Flash, Digi Power Design, Intel InT
Included Accessories
I/O back cover, 3 x M.2 screws, 2 x standoff for M.2 socket
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome RGB
Width
30.5 cm
Depth
24.4 cm
