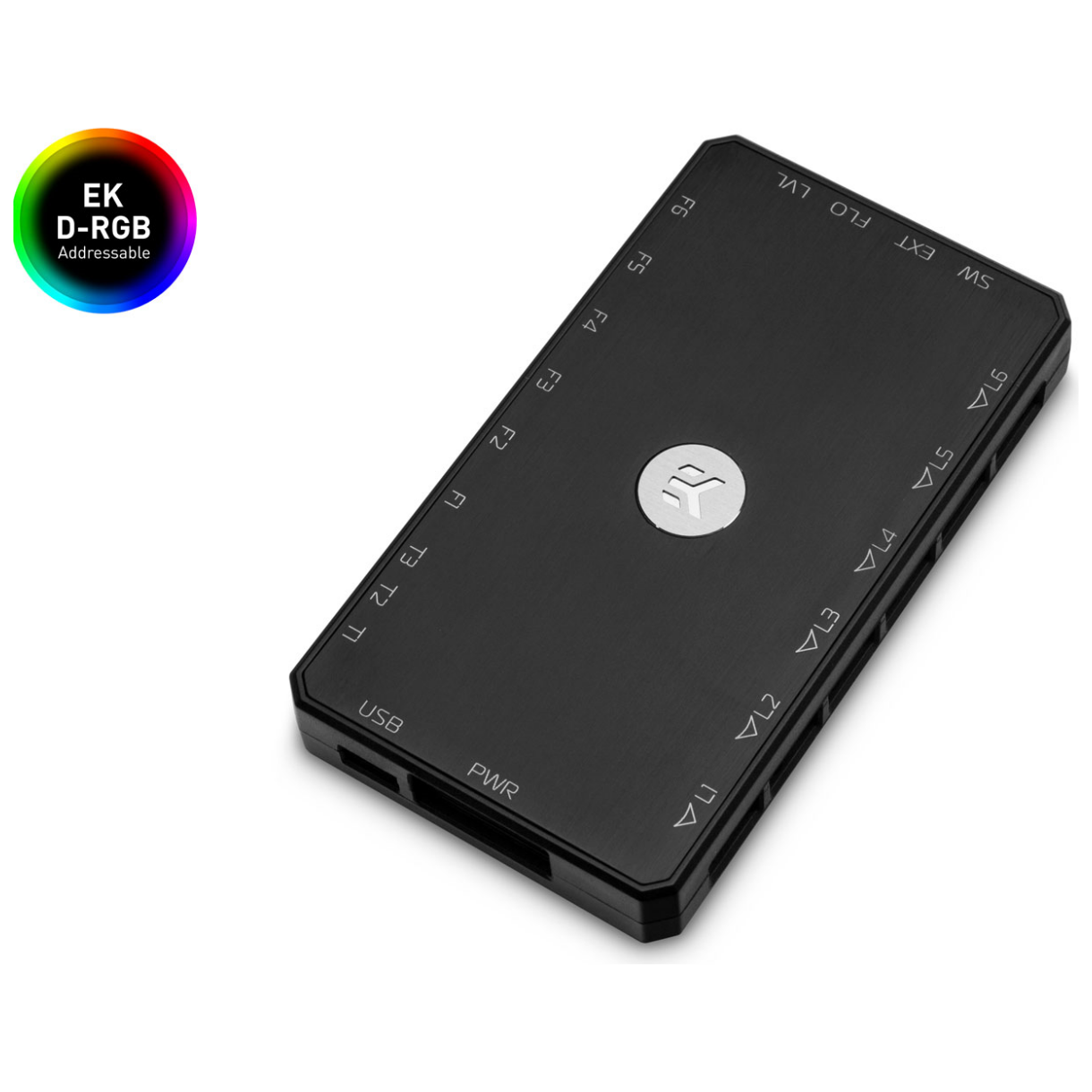

A Fan, Pump, and Addressable D-RGB controller unit, designed from the standpoint of enthusiasts. The EK-Loop Connect is a reliable information and control hub for all the relevant parameters of your liquid-cooled PC! This controller hub is equipped with 6 PWM fan headers with a limit of incredible 20W per header. On the opposite side of the unit, there are 6 Addressable D-RGB headers for standard 3-pin 5V D-RGB connectors (Pinout: +5V, Data, Empty, Ground) with the ability to deliver 9W of power on each header.

Through the EK-Connect software, you’re able to easily set fan curves, pump speed, various pre-defined D-RGB effects and much, much more. Due to its high power output capabilities, the EK-Connect is powered through a Molex connector, which has an adapter cable that splits it into two SATA power connectors for users who prefer SATA connectors. The hardware and software side are interconnected via an internal USB 2.0 connector. With a dedicated modern software solution that brings all the hardware power together, it is a complete liquid cooling ecosystem control hub that’s making sure your PC stays healthy.

The new EK-Loop Connect is a much more powerful version of the EK Connect 51. EK-Loop Connect can provide a total of 120W of power over 6 fan headers, and 50W total for addressable D-RGB LEDs. Combined, that makes it 170W of power. They share the same software and connector layout, with the only difference being their power output capacity. The EK-Loop Connect 51 is EOL and it was available only in limited quantities which were used only for promotional purposes as a free addition.
