A product image of SilverStone SX550 550W 80Plus Gold SFX Power Supply

SilverStone SX550 550W 80Plus Gold SFX Power Supply

$149.00
Add to Cart
Add to Wishlist

SilverStone SX550 550W 80Plus Gold SFX Power Supply

SilverStone SX550 550W 80Plus Gold SFX Power Supply

Add to Cart
Add to Wishlist
Stock Availability

Bentley (WA)
In stock
Cockburn (WA)
In stock
Osborne Park (WA)
5/8/2020
Notify me
Wangara (WA)
5/8/2020
Notify me
WA Warehouse
In stock
Heatherton (VIC)
In stock
Product Information

PLE Code

PLE-638700

Manufacturer

SilverStone

Boxed Weight

1.52kg

Model Number

SST-SX550

Warranty

3 Year PLE Standard Return to Base
Share This Product On Socials
Product Description
As the standards bearer of SFX PSUs, SilverStone's continuous breakthrough in power supply miniaturization and power density has resulted in SX550, a standard sized SFX model with high performance but surprisingly affordable price. Equipped with automatic temperature control, its fan can remain silent during idle and provide adequate cooling during high loading conditions. For SFF enthusiasts looking for the best bang for their bucks, the SX550 is an excellent choice.
Product Specifications
Product Description
SilverStone SFX Series SX550 - power supply - 550 Watt
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.4/ SFX12V
80 PLUS Certification
80 PLUS Gold
Weight
1.1 kg
Input Voltage
AC 100-240 V
Output Voltage
+3.3, +5, ±12 V
Power Capacity
550 Watt
Output connectors
1 x power 24 pin ATX with detachable 4 pin section1 x power 8 pin EPS12V with detachable 4 pin ATX12V section2 x 8 pin PCI Express power with detachable 2 pin section2 x 4 PIN internal power3 x 15 pin Serial ATA power1 x 4 PIN mini-power connector
Cooling System
80 mm fan
Colour
Black
Dimensions (WxDxH)
12.5 cm x 10 cm x 6.35 cm
PSU Form Factor
SFX
Input Voltage Range
AC 90 - 264 V
Frequency Required
47 - 63 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section1 x power 8 pin EPS12V with detachable 4 pin ATX12V section2 x 8 pin PCI Express power with detachable 2 pin section2 x 4 PIN internal power3 x 15 pin Serial ATA power1 x 4 PIN mini-power connector
Output Current
+3.3V - 21 A / 0 A+5V - 22 A / 0 A+12V1 - 45 A / 0.1 A+5VSB - 2.5 A / 0 A-12V - 0.3 A / 0 A
MTBF
100,000 hours
Features
Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Width
12.5 cm
Depth
10 cm
Height
6.35 cm
MEPS
Yes
Wattage
550W
80+ Rating
Gold
Form Factor
SFX
Modular
No
From the manufacturer

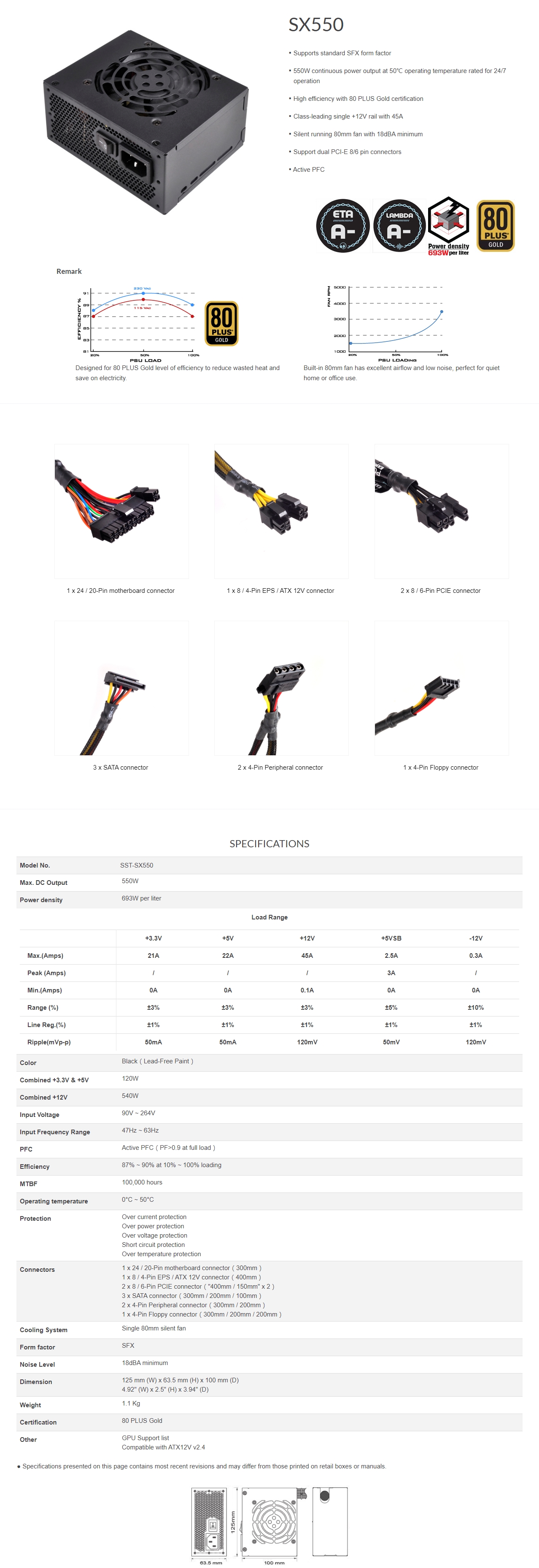

A large marketing image providing additional information about the product SilverStone SX550 550W 80Plus Gold SFX Power Supply - Additional alt info not provided
This document and other documents provided pursuant are for informational purposes only. The information type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of this document. This document may include screenshots from the manufacturer's website which may be used for multiple variations of this product. The model number supplied at the top of this page (explicitly specified as "Model Number") is the exact model item you will receive.
