A product image of SilverStone Raven Z RVZ01-E mITX Small Form Factor Case

SilverStone Raven Z RVZ01-E mITX Small Form Factor Case

$89.00
Add to Cart
Add to Wishlist
Close

SilverStone Raven Z RVZ01-E mITX Small Form Factor Case

Cases
Browse Cases
>
Mini ITX
Browse Mini ITX
>
Without Power Supply
Browse Without Power Supply

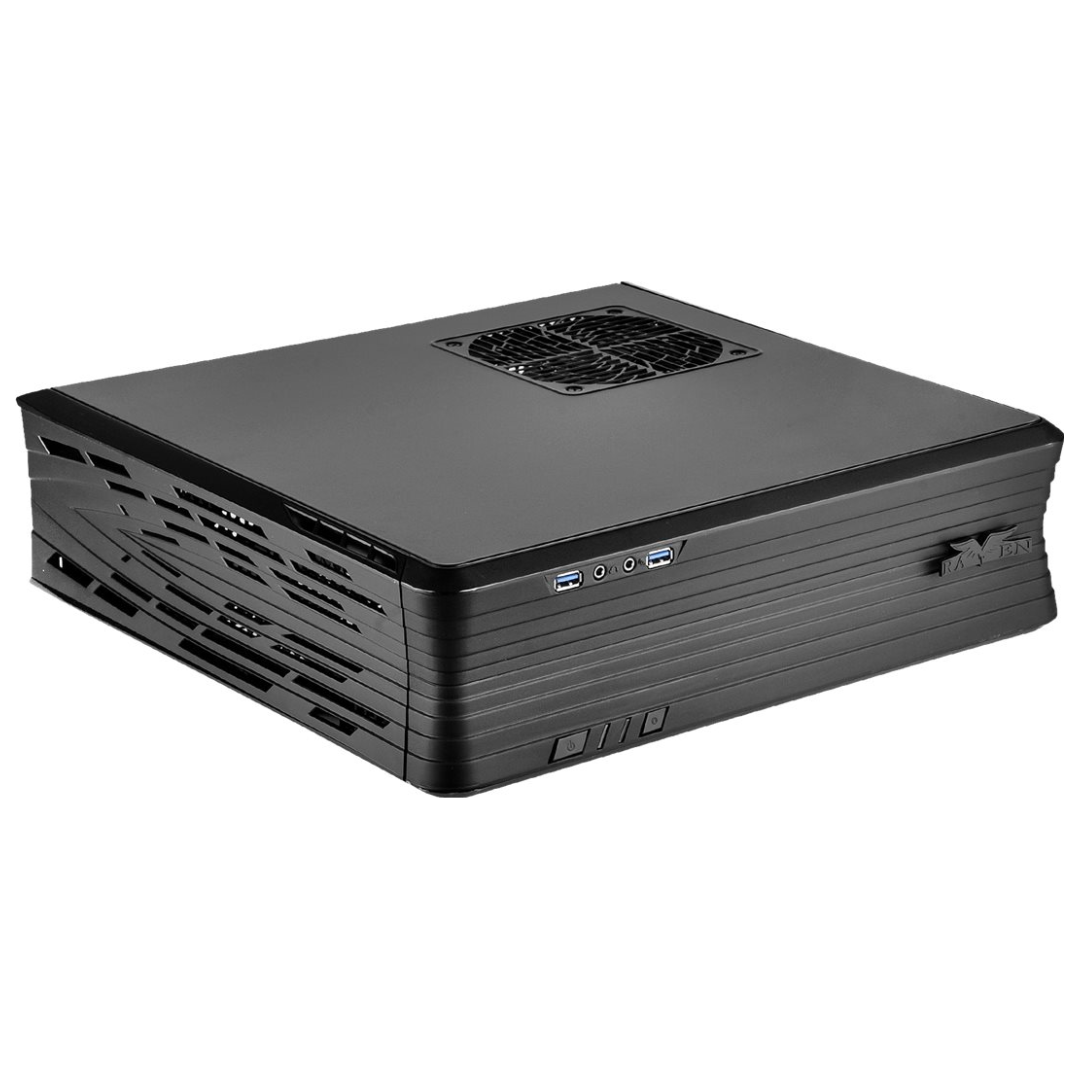

A large main feature product image of SilverStone Raven Z RVZ01-E mITX Small Form Factor Case
A small tile product image of SilverStone Raven Z RVZ01-E mITX Small Form Factor Case
A small tile product image of SilverStone Raven Z RVZ01-E mITX Small Form Factor Case
A small tile product image of SilverStone Raven Z RVZ01-E mITX Small Form Factor Case
A small tile product image of SilverStone Raven Z RVZ01-E mITX Small Form Factor Case
A small tile product image of SilverStone Raven Z RVZ01-E mITX Small Form Factor Case
A small tile product image of SilverStone Raven Z RVZ01-E mITX Small Form Factor Case
A small tile product image of SilverStone Raven Z RVZ01-E mITX Small Form Factor Case
A small tile product image of SilverStone Raven Z RVZ01-E mITX Small Form Factor Case
Close

SilverStone Raven Z RVZ01-E mITX Small Form Factor Case

$89.00
Add to Cart
Add to Wishlist
Close
Stock Availability

Bentley (WA)
In stock
Cockburn (WA)
Available for transfer (~1 business day)
Notify me
Close
Osborne Park (WA)
In stock
Wangara (WA)
In stock
WA Warehouse
Available for transfer (~1 business day)
Notify me
Close
Heatherton (VIC)
In stock
Product Information

PLE Code

PLE-638679

Manufacturer

SilverStone

Boxed Weight

4.92kg

Model Number

SST-RVZ01B-E

Warranty

1 Year PLE Standard Return to Base
Share This Product On Socials
Close
Product Description
SilverStone RVZ01-E is an evolution of the ground-breaking RAVEN Z RVZ01, a slim form factor case with tremendous capability. While maintaining the same volume size and appearance as the original model, the RVZ01-E's interior was reworked to convert SFX power supply space into one for standard ATX (PS2) power supply. This amazing change came with little sacrifice as the case still has support for the biggest consumer graphics cards on the market with superb air cooling performance. Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space-constrained environment that requires a powerful PC.
Product Specifications
Product Description
SilverStone Raven RVZ01-E - desktop - mini ITX
Product Type
System cabinet
Form Factor
Desktop
Colour
Black
I/O Connectors
2 x USB 3.01 x audio line-out1 x microphone
Supported Motherboards
Mini-ITX, Mini-DTX
System Cabinet Features
Kensington lock support, Liquid Cooling Ready, vented side panel, plastic outer shell
Power Device
No power supply
Specification Compliance
ATX / PS/2
Dimensions (WxDxH)
38.2 cm x 35 cm x 10.5 cm
Weight
3.7 kg
Max Mainboard Size
Mini ITX
Internal Bays Qty
4
Product Material
Steel
Cooling System
Top: 120 mm fan x 1 / 1500 rpm / 18 dBABottom: 120 mm fan x 1 / 1500 rpm / 18 dBABottom: 120 mm fan mount x 1
CPU Cooler Max Height
83 mm
Video Card Max Length
330 mm
Expansion Bays
4 (total) / 4 (free) x internal - 2.5"
Expansion Slots
2
Interfaces
2 x USB 3.01 x audio line-out - mini-jack1 x microphone - mini-jack
Width
38.2 cm
Depth
35 cm
Height
10.5 cm
Window
No
Included PSU
No
PSU Sizes Accepted
ATX
3.5 Bays
0
2.5 Bays
4
5.25 Bays
0
120mm Radiator Mounts
1
240mm Radiator Mounts
0
280mm Radiator Mounts
0
360mm Radiator Mounts
0
480mm Radiator Mounts
0
140mm Radiator Mounts
0
Build Points
15
From the manufacturer
A large marketing image providing additional information about the product SilverStone Raven Z RVZ01-E mITX Small Form Factor Case - Additional alt info not provided
This document and other documents provided pursuant are for informational purposes only. The information type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of this document. This document may include screenshots from the manufacturer's website which may be used for multiple variations of this product. The model number supplied at the top of this page (explicitly specified as "Model Number") is the exact model item you will receive.
