ASUS HYPER M.2 x16 V2 PCIe M.2 Expansion Card
89.0000

ASUS HYPER M.2 x16 V2 PCIe M.2 Expansion Card

SKU HYPER M.2 X16 CARD V2
$89.00
Buy Now (Place Backorder)
Add to Wishlist
Shipping Availability
Enter your postcode
Western Australia : Enter your postcode for more information
Eastern States : Enter your postcode for more information
Pickup Availability
Victoria
Heatherton
:
Out Of Stock (ETA:03/07/19)

Western Australia
Bentley
:
Out Of Stock (ETA:09/07/19)

Cockburn
:
Out Of Stock (ETA:09/07/19)

Osborne Park
:
Out Of Stock (ETA:09/07/19)

Wangara
:
Out Of Stock (ETA:09/07/19)

PLE Code: PLE-636222
Model Number: HYPER M.2 X16 CARD V2
Manufacturer: ASUS
Warranty: 1 Year PLE Standard Return to Base
Boxed Weight: 0.77kg

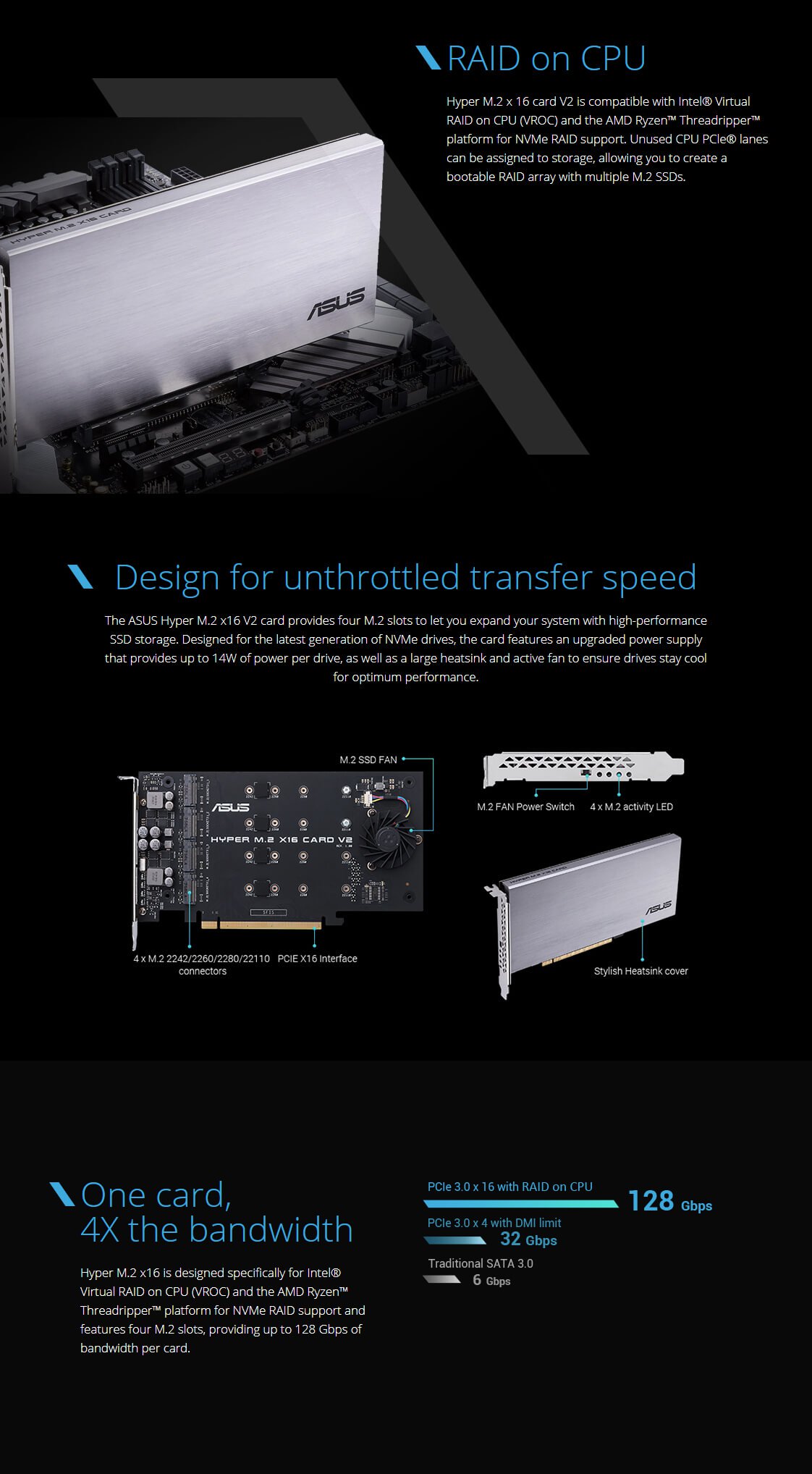

Hyper M.2 x 16 card V2 is compatible with Intel Virtual RAID on CPU (VROC) and the AMD Ryzen Threadripper platform for NVMe RAID support. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs.

  • Design for unthrottled transfer speed
  • One card, 4X the bandwidth

Design for unthrottled transfer speed
The ASUS Hyper M.2 x16 V2 card provides four M.2 slots to let you expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure drives stay cool for optimum performance.
One card, 4X the bandwidth
Hyper M.2 x16 is designed specifically for Intel Virtual RAID on CPU (VROC) and the AMD Ryzen Threadripper platform for NVMe RAID support and features four M.2 slots, providing up to 128 Gbps of bandwidth per card.
Main Specifications
Product Description
ASUS HYPER M.2 X16 CARD V2 - interface adapter - M.2 Card - PCIe 3.0 x16
Device Type
Interface adapter - plug-in card
Bus Type
PCIe 3.0 x16
Supported Form Factor
Expansion Slot to M.2
Expansion Bays
4 x internal - M.2 2242/2260/2280/22110
Hard Drive Form Factor Compatibility
M.2
Interface
M.2 Card
Data Transfer Rate
128 Gbit/s
Dimensions (WxDxH)
1.3 cm x 20.2 cm x 9.6 cm
Extended Specifications
General
Device Type
Interface adapter - plug-in card
Hard Drive Form Factor Compatibility
M.2
Supported Form Factor
Expansion Slot to M.2
Host Bus
PCIe 3.0 x16
Storage Controller
Interface
M.2 Card
Data Transfer Rate
128 Gbit/s
Expansion / Connectivity
Bays
4 x internal - M.2 2242/2260/2280/22110
Miscellaneous
Features
Built-in cooling fan, Bootable RAID Array support, Intel VROC technology
Dimensions & Weight
Width
1.3 cm
Depth
20.2 cm
Height
9.6 cm
