EK Vector RTX RE TI RGB Nickel/Plexi Waterblock
199.0000

EK Vector RTX RE TI RGB Nickel/Plexi Waterblock

SKU 3831109815861
$199.00
Buy Now
Add to Wishlist
Shipping Availability
Enter your postcode
Western Australia : Immediate Dispatch Available
Eastern States : Immediate Dispatch Available
Pickup Availability
Victoria
Heatherton
:
In Stock

Western Australia
Bentley
:
Available Next Business Day Transfer

Cockburn
:
Available Next Business Day Transfer

Osborne Park
:
Available Next Business Day Transfer

Wangara
:
Available Next Business Day Transfer

PLE Code: PLE-635417
Model Number: 3831109815861
Manufacturer: EK Waterblocks
Warranty: 2 Year PLE Standard Return to Base
Boxed Weight: 0.99kg

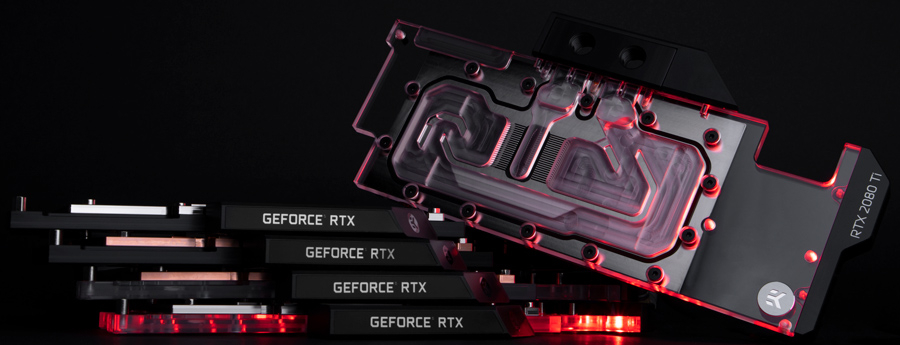

The EK-Vector RTX RE Ti high-performance water block is an evolution of the original EK-Vector water block specially designed for multiple reference NVIDIA® GeForce® RTX Turing based graphics cards. The cooling engine is tweaked for even more performance with an optimized flow pattern. It also offers extended compatibility fitting more reference design based graphics cards.


This water block is compatible with all reference design GeForce RTX 2080 Ti-based graphics cards, but as always, we recommend that you refer to the EK® Cooling Configurator for a precise compatibility match.

The water block directly cools the GPU, VRAM and the VRM (voltage regulation module) as cooling liquid is channeled directly over these critical areas. These newly developed water blocks feature a redesigned cooling engine that has a larger footprint compared to the previous generation of EK® Full Cover water blocks. This results in a larger surface area for heat transfer which increases the thermal performance of these water blocks.

The EK® Vector Series water blocks use an Open Split-Flow cooling engine design which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, which means that it can be used with weaker water pumps, or pumps running on low-speed settings and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performances even when used in reversed water flow scenarios.

The base of the block is CNC machined out of nickel-plated electrolytic copper while the top is CNC machined out of glass-like Acrylic. Sealing is ensured by high-quality EPDM O-Rings. The brass standoffs are already pre-installed and allow for a safe and easy installation procedure. The front aesthetic corner piece is lit up with LED strip. This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 4-pin LED connector is to be aligned with the +12V marking on the RGB header.


EK® recommends the purchase of a retention backplate which improves the aesthetics of your graphics cards, but also provides additional passive cooling to the GPU core and circuit board VRM section.
 Enclosed:

- EK-Vector RTX RE Ti series high-performance water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- 6mm Allen key
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)

Made in Slovenia - Europe!

PLEASE NOTE:

- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel plated water block! EK is offering a selection of such products in the coolants section.
- Due to an immense variety of fittings/barbs available on the market and no prescribed standards, we guarantee compatibility only for connectors bought from our website.
- Check your toolbox if you are missing this special Hex adapter for some of the screws.
- Fittings are just for showcase and are not included!
- The EK-Vector GPU water block terminal cover is not compatible with FC Terminal X and FC Terminal (Legacy) multi GPU connectivity bridges.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
