EK Coolstream SE 360mm Radiator
95.0000

EK Coolstream SE 360mm Radiator

SKU 3831109860472
$95.00
Buy Now
Add to Wishlist
Shipping Availability
Enter your postcode
Western Australia : Immediate Dispatch Available
Eastern States : Enter your postcode for more information
Pickup Availability
Victoria
Heatherton
:
Out Of Stock (ETA:19/08/19)

Western Australia
Bentley
:
In Stock

Cockburn
:
In Stock

Osborne Park
:
In Stock

Wangara
:
In Stock

PLE Code: PLE-634627
Model Number: 3831109860472
Manufacturer: EK Waterblocks
Warranty: 1 Year PLE Standard Return to Base
Boxed Weight: 0.95kg

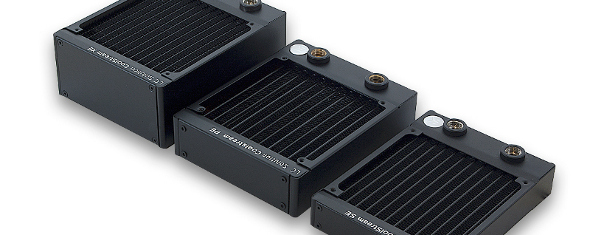

EK-CoolStream SE is a slim, high-performance computer liquid cooling radiator which combines EK's unique CSQ design with latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.

EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream SE series radiators a perfect choice for any computer water cooled system. Overall compact measurement of the SE series radiator allow for utilization even in the tiniest computer chassis.

This radiator offers best cooling capacity in 28mm thick radiator class: copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.
This product features two recessed G1/4 threaded ports with two pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings.





Technical details:

Material:
- Copper fins
- 90% copper tubing (H90)
- Brass chambers
- Aluminum/Steel housing

Dimensions: 400 x 120 x 28mm (L x W x H)
Weight: 1.33kg
Liquid Capacity: ~155mL
FPI: 22
Port threads: 2x G1/4
Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping
Pressure tested: 1bar(g)

Enclosed:
- EK-CoolStream SE series radiator /w two pre-installed G1/4 extenders
- Flat-head UNC 6-32 screws (l=30mm)
- Flat-head UNC 6-32 screws (l=5mm)
- Allen key 2,5mm
PLEASE NOTE:

When using fans other than standard 120x120x25mm size please use appropriately long screws!

Use of the improperly long screws may result in piercing of the radiator core and irreparably damage the product. Such misuse is not covered by product warranty!
This product should NOT be installed with any aluminum Fluid Gaming parts!
