eVGA SuperNOVA T2 1000W 80PLUS Titanium Power Supply
399.0000

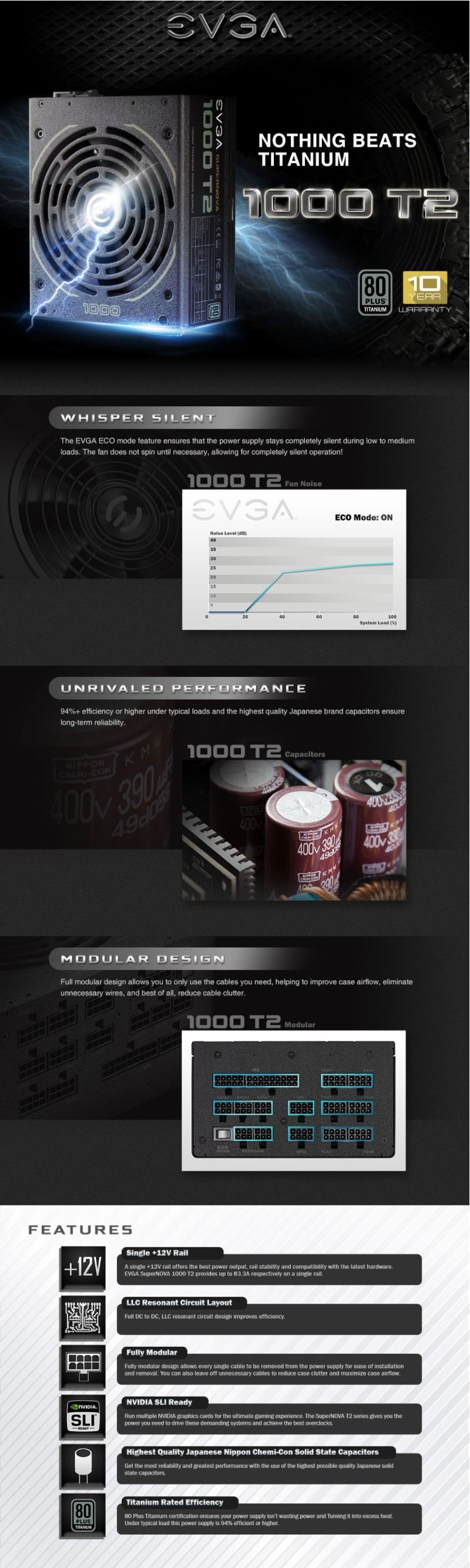

eVGA SuperNOVA T2 1000W 80PLUS Titanium Power Supply

SKU 220-T2-1000-X4
$399.00
Buy Now
Add to Wishlist
Shipping Availability
Enter your postcode
Western Australia : Immediate Dispatch Available
Eastern States : Enter your postcode for more information
Pickup Availability
Victoria
Heatherton
:
Available After Interstate Transfer

Western Australia
Bentley
:
Available Next Business Day Transfer

Cockburn
:
In Stock

Osborne Park
:
Available Next Business Day Transfer

Wangara
:
In Stock

PLE Code: PLE-630941
Model Number: 220-T2-1000-X4
Manufacturer: eVGA
Warranty: 3 Year PLE Standard Return to Base
Boxed Weight: 4.86kg
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNOVA 1000 T2 provides up to 83.3A respectively on a single rail.



CABLE LENGTH

ATX CABLE1x 600mm (m)
EPS CABLE2x 750mm (m)
PCIE CABLE2x 750mm, 900mm (m) 4x 750mm (m)
SATA CABLE3x 550mm, 650mm, 750mm, 850mm (m)
FOUR-PIN PERIPHERAL CABLE2x 550mm, 650mm, 750mm (m)
FLOPPY ADAPTER1x 100mm
AC POWER1x 1500mm (m)
MODULAR CABLE TYPEFull

CONNECTOR QUANTITY

24 PIN ATX1x
EPS (CPU)2x 8pin (4+4)
PCIE6x 8pin (6+2), 2x 6pin
SATA12x
FOUR-PIN PERIPHERAL6x
FLOPPY1x

ADDITIONAL DETAILS

OPERATING TEMPERATURE0° to 50° C
JAPANESE CAPACITORS100%
ECO MODEYes
MTBF100,000 Hours
NET WEIGHT9 lbs
SIZE85mm (H) x 150mm (W) x 180mm (L)
APPROVALSTUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
FAN SIZE / BEARING140mm Double Ball Bearing
