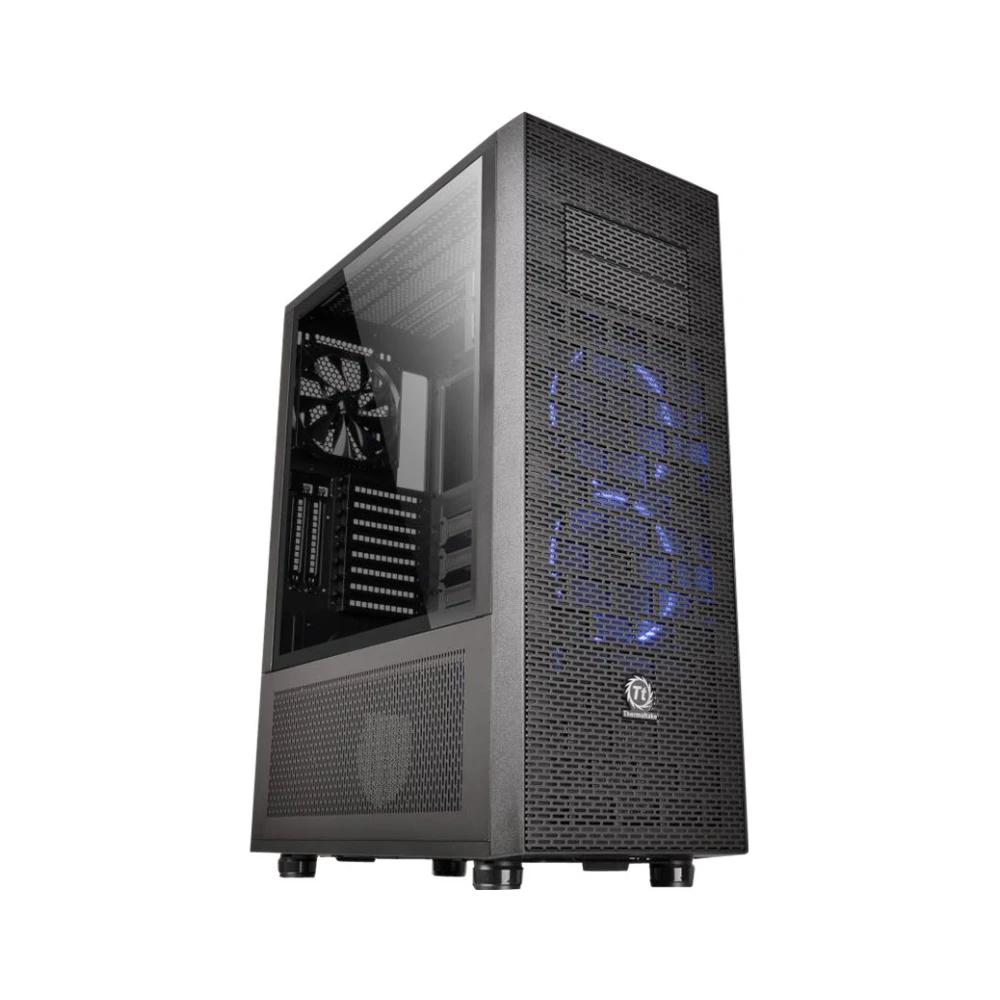

A product image of Thermaltake Core X71 Tempered Glass Riing Edition Full Tower Case

Thermaltake Core X71 Tempered Glass Riing Edition Full Tower Case

$249.00
Add to Cart
Add to Wishlist

Thermaltake Core X71 Tempered Glass Riing Edition Full Tower Case

Thermaltake Core X71 Tempered Glass Riing Edition Full Tower Case

Add to Cart
Add to Wishlist
Stock Availability
This product is ordered from our suppliers once you place your order and PLE have received full payment. Unfortunately supplier availability of this item is unconfirmed. Please contact your closest store prior to ordering if you require a firm ETA.
Product Information

PLE Code

PLE-626968

Manufacturer

Thermaltake

Boxed Weight

13.24kg

Model Number

CA-1F8-00M1WN-02

Warranty

3 Year PLE Standard Return to Base
Share This Product On Socials
Product Description
With its amazing interior design, the Core X71 delivers a streamlined experience that makes it easier for PC makers and hobbyists to put together high-end systems. Offering full assembly capacity and expandability for enthusiasts to create massive liquid cooling systems, the Core X71 provides more interior space for custom cooling components with adjustable installation of a drive cage. The Core X71 delivers superb viewing presentation with an enlarged side panel window. Moreover, Core X71 provides maximum interior space for advanced cooling performance or liquid systems build.
Product Summary
Optimized for space management, the Core X71 is divided into two main chambers: the upper chamber for cooling performance and better efficiency, and the lower one for PSU and the addition of case fans, radiators, and a drive cage. The removable drive device racks give assemblers plenty of flexibility to gain the maximum interior space needed for advanced cooling performance or liquid systems build.
A special drive bay design for storage devices makes setting up the advanced storage solutions super easy and flexible. Besides hanging three drives at the back of motherboard tray, users are capable of freely adjusting the drive cage within the upper chamber or to the lower chamber to suit their particular needs.
Designed for high-end gaming system compatibility, the Core X71's modular drive racks allow gamers to easily install up to seven data storage devices, a dual expansion slot VGA, and a tower CPU cooler. Even with a high-wattage PSU, it still leaves plenty of space for cable management. Moreover, a radiator can be installed at front of the chassis, delivering superior cooling performance.
The Core X71's superb cooling ability offers fan brackets with various mounting points to support most types of gaming systems, including DIY / AIO liquid-cooling systems and air-cooling units. In the lower chamber of the chassis, each side can support additional radiators and multiple case fans.
Product Specifications
Product Description
Thermaltake Core X71 - TG Edition - full tower - ATX
Product Type
System cabinet
Form Factor
Full tower
Color
Black
I/O Connectors
2 x USB 3.02 x USB 2.01 x microphone1 x headphones
Supported Motherboards
ATX, microATX, Mini-ATX
System Cabinet Features
Windowed side panel, screwless drive bays, meshed front panel, front dust filter, liquid cooling holes, cable management system, bottom dust filter, top magnetic dust filter, supports 280/360 mm radiator in top panel, supports 120/140 mm radiator in botto
Power Device
No power supply
Specification Compliance
PS/2
Dimensions (WxDxH)
25 cm x 51.1 cm x 67.7 cm
Weight
12 kg
Manufacturer Warranty
3 years warranty
Max Mainboard Size
ATX
Internal Bays Qty
5
Front Accessible Bays Qty
2
Cooling System
Front: 140 x 140 x 25 mm fan x 2 / intake / 1400 rpm / 28 dB / Riing LED Blue fan, 2 x 200 mm fan or 3 x 140 mm fan or 3 x 120 mm supportedRear: 140 x 140 x 25 mm fan x 1 / exhaust / 1000 rpm / 16 dBA / TurboFan, 1 x 120/140 mm fan supportedTop: 120/140/2
CPU Cooler Max Height
180 mm
Video Card Max Length
420 mm
Expansion Bays
2 (total) / 2 (free) x front accessible - 5.25"/ 3.5"/ 2 x 2.5" shared5 (total) / 5 (free) x internal - 2.5" / 3.5" shared
Expansion Slots
8
Interfaces
2 x USB 3.02 x USB 2.01 x microphone - mini-jack1 x headphones - mini-jack
Compliant Standards
SPCC
Width
25 cm
Depth
51.1 cm
Height
67.7 cm
Service & Support
Limited warranty - parts and labour - 3 years
Colour
Black
Window
Yes
Included PSU
No
PSU Sizes Accepted
ATX
Front Ports
2 x USB 3.0, 2 x USB 2.0, Mic and Headphone
5.25 Bays
2
3.5 Bays
2
2.5 Bays
5
120mm Radiator Mounts
1
240mm Radiator Mounts
1
280mm Radiator Mounts
1
360mm Radiator Mounts
1
480mm Radiator Mounts
1
140mm Radiator Mounts
1
From the manufacturer
A large marketing image providing additional information about the product Thermaltake Core X71 Tempered Glass Riing Edition Full Tower Case - Additional alt info not provided
This document and other documents provided pursuant are for informational purposes only. The information type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of this document. This document may include screenshots from the manufacturer's website which may be used for multiple variations of this product. The model number supplied at the top of this page (explicitly specified as "Model Number") is the exact model item you will receive.
